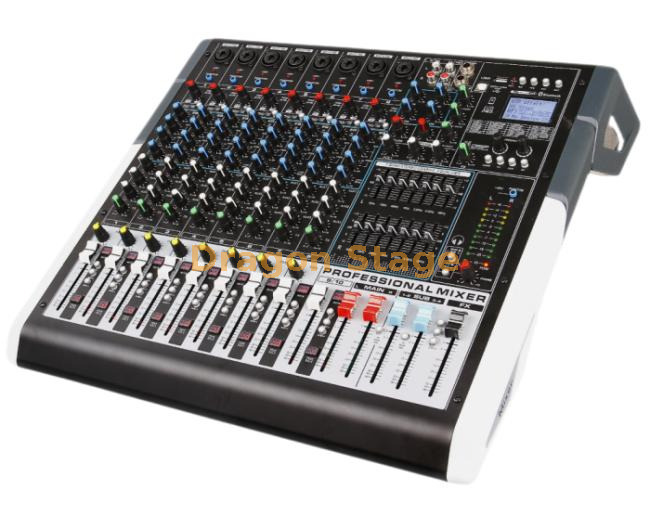

HTS12 12 Channel Professional Audio Mixer with DSP Effects
The HTS12 Audio Mixer is a professional multi-channel mixing console designed for live performances, stage sound reinforcement, conferences and commercial audio applications.
Featuring 12 mono microphone inputs and 2 stereo inputs, the HTS12 provides flexible audio control for various sound systems. Each input channel includes a four-band equalizer with adjustable mid-frequency sweep EQ, independent mute control and LED monitoring indicators for accurate sound management.
The mixer integrates a professional 24-channel DSP effects processor, multiple AUX outputs, group outputs, Bluetooth playback, MP3 recording and built-in USB sound card functions, providing a complete solution for modern audio production.
With features including 48V phantom power with independent channel switches, dual 7-band master EQ and flexible signal routing, the HTS12 is suitable for professional users requiring reliable and versatile sound mixing performance.
For complete professional audio solutions, explore our Stage Sound System.
Product Features
The HTS12 provides:
12 mono microphone input channels
2 stereo input channels
Independent mute function for each channel
LED monitoring indicators
This configuration is suitable for small and medium-sized stage performances, conferences and professional audio applications.
Built-In 24 DSP Effects Processor
The integrated DSP system provides:
24 selectable digital effects
Independent effect adjustment
FX routing to AUX outputs
The built-in effects processor helps simplify system configuration without requiring additional external processing equipment.
Advanced EQ Control
Each input channel features:
The master output includes dual 7-band equalizers for overall system tuning.
Flexible Output Routing
The HTS12 supports:
Left and right main outputs
Three AUX auxiliary outputs
Four group outputs
FX effects routed to AUX outputs
This allows flexible connection with professional audio systems and monitoring setups.
Compatible loudspeaker solutions can be created with our PA Speakers and Power Amplifiers.
The HTS12 includes:
These features provide convenient solutions for presentations, events and live audio applications.
Professional Phantom Power
The mixer supports:
This allows professional condenser microphones and compatible audio equipment to be used safely.
Why Choose the HTS12 Audio Mixer?
Compact Professional Mixing Solution
Compared with larger mixing consoles, the HTS12 provides professional functions in a more compact design, making it suitable for applications where space efficiency is important.
Designed for Live Sound Applications
The HTS12 is suitable for:
Real installation examples are available in our Sound Solution Cases.
The HTS12 provides:
Signal-to-noise ratio above 93dB
Low harmonic distortion of 0.05%
Wide frequency response from 20Hz to 20kHz
ensuring clear and stable audio output for professional applications.
Technical Specifications
Specification | HTS12 |
|---|
Product Type | Professional Audio Mixer |
Mono Microphone Inputs | 12 Channels |
Stereo Inputs | 2 Channels |
Channel EQ | 4-Band EQ with Mid Sweep |
DSP Effects | 24 Built-in Effects |
Main Outputs | Left / Right Stereo Output |
AUX Outputs | 3 AUX Outputs |
Group Outputs | 4 Group Outputs |
Phantom Power | 48V Independent Channel Control |
Master EQ | Dual 7-Band Equalizer |
MP3 Player | Bluetooth + Recording Function |
MP3 Display | 2.5-inch Dot Matrix Screen |
USB Sound Card | Built-in |
Signal-to-Noise Ratio | >93dB |
THD | 0.05% |
Frequency Response | 20Hz–20kHz (+3dB) |
AUX Send Output Level | 0dBu |
Maximum Output Level | 17dBu (1kΩ, THD=0.5%) |
Headphone Output Maximum Level | 17dBu / 150Ω (+25dBm) |
Power Supply | 100–240V, 6A, 250V |
Product Dimensions | 575 × 475 × 125mm |
Packing Dimensions | 635 × 185 × 570mm |
Net Weight | 7.25kg |
Typical Applications
The HTS12 Professional Audio Mixer is ideal for:
Stage performances
Live music events
Conference sound systems
Churches
Schools
Hotels
Corporate presentations
Recording applications
Rental audio systems
Compatible Products
The HTS12 can be integrated with:
FAQ
1. What is the difference between HTS12 and HTS16?
The main difference is the number of microphone input channels. HTS12 provides 12 mono microphone inputs, while HTS16 provides 16 mono microphone inputs for larger audio systems.
2. Does the HTS12 include built-in effects?
Yes. The HTS12 includes 24 DSP digital effects with independent adjustment capability.
3. Can the HTS12 connect to a computer?
Yes. The built-in USB sound card allows connection to computers or mobile devices through a data cable for recording and playback.
4. Does the HTS12 support condenser microphones?
Yes. Each channel provides independent 48V phantom power control for professional condenser microphones.
5. What applications is the HTS12 suitable for?
The HTS12 is suitable for stage performances, conferences, churches, schools, hotels and professional event sound systems.
Short Answer Snippet
The HTS12 is a 12-channel professional audio mixer featuring DSP effects, USB sound card, Bluetooth MP3 playback, 48V phantom power and flexible AUX/group outputs. It is designed for live sound, conferences, stage performances and professional audio applications.
