9x9x6m Professional Aluminum Arched Roof Stage Truss System

5 0 Reviews

Professional 9m x 9m Aluminum Arched Roof Stage Truss System - 6m High Heavy-Duty Event Rig with Dual 2m PA Speaker Wings and 4-Pillar Ground Support

Price: ￥ 63592


Availability:



Inquire

Brand:
Dragonstage

Product Description

This Professional 9m x 9m Arched Roof Stage Truss System is a high-performance structural solution designed for professional event environments where aesthetics and load-bearing capacity are equally critical. Standing at a 6-meter vertical clearance, this system provides a comprehensive 81-square-meter performance area with elite-tier audio-visual integration.

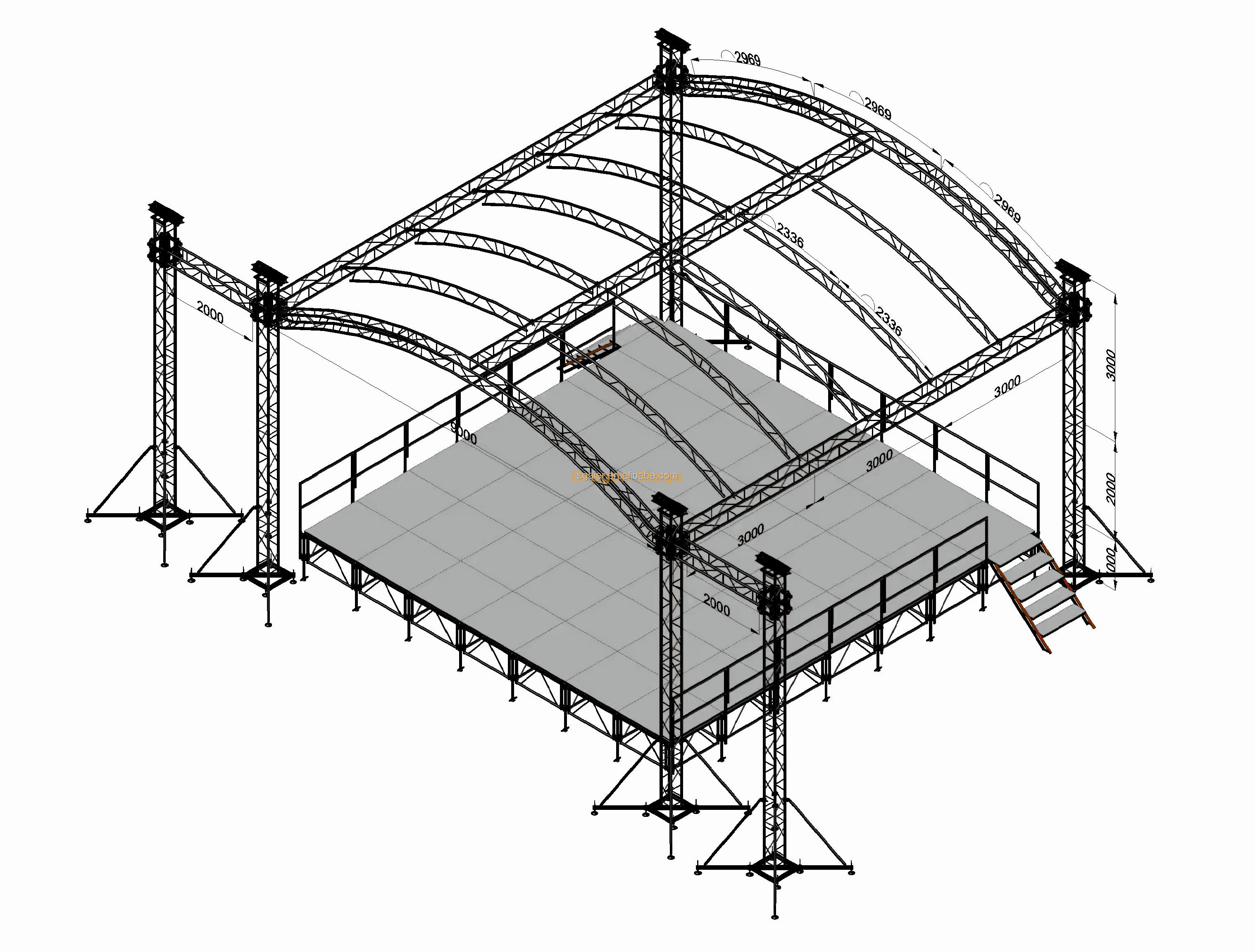

9x9x6m Professional Aluminum Arched Roof Stage Truss System

packing weight:1630kg

packing volume:12cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
9.00 m Beam(front)	sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
9.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	6 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	sets	.90 m	50×3.0	CS289×289	pcs
9.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
11.00 m Arch Beam	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		2.50 m	50×3.0	CS289×289	4 pcs
11.00 m Ladder truss	4 sets	3.00 m	50×3.0	CL30,289*50	7 pcs
		2.00 m	50×3.0	CL30,289*50	pcs
		2.50 m	50×3.0	CL30,289*50	7 pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	pcs
		Connect plate with clamp			pcs
		Single clamp			56 pcs
		Double clamp			8 pcs
		roof canopy material:pvc, Blue Colour or customized.		179.52	1 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
6.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
Wings Tower	Spigot Sleeve Block S				2 pcs
	Steel Base S				2 pcs
	Top Section S				2 pcs
	Manual hoist,BA05 2Tons				2 pcs
	Spigot Hinge Section,Height 1m				2 pcs
	Fibre sling,BA04,2 tons 3m				2 pcs
	Long outrigger				8 pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
