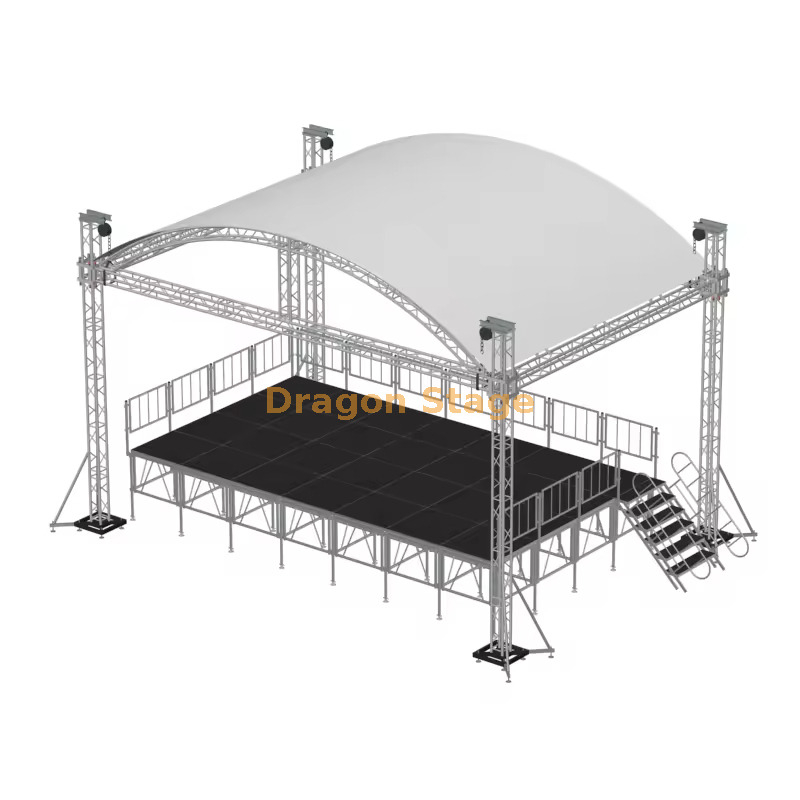

8x6x6m Aluminum Stage Curve Truss Roof Canopy

5 0 Reviews

For event organizers requiring a robust yet aesthetically pleasing performance space, the 8x6x6m Aluminum Curve Truss Roof System by DragonStage is an elite engineering solution. Providing 48 square meters of covered area, this system is specifically designed with reinforced, thicker beams to handle the high-capacity loading requirements of modern LED video walls and complex lighting plots. The elegant arc roof design not only provides a professional stadium-style look but also offers superior structural performance, making it the premier choice for regional festivals, corporate launches, and outdoor concerts.

Price: ￥ 51435


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:1250kg

packing volume:10cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
8.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	4 pcs
		2.00 m	50×3.0	CS389×389	2 pcs
		1.00 m	50×3.0	CS389×389	pcs
6.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	4 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.80 m	50×3.0	CS289×289	2 pcs
6.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
10.00 m Arch Beam	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		.00 m	50×3.0	CS289×289	pcs
10.00 m Ladder truss	2 sets	3.00 m	50×3.0	CL30,289*50	4 pcs
		2.00 m	50×3.0	CL30,289*50	4 pcs
		.00 m	50×3.0	CL30,289*50	pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	2 pcs
		Connect plate with clamp			2 pcs
		Single clamp			32 pcs
		Double clamp			8 pcs
		roof canopy material:pvc, Blue Colour or customized.		126.08	1 pcs

A common challenge with 8-meter horizontal spans is the potential for structural deflection when supporting heavy LED panels. DragonStage solves this by utilizing reinforced 6061-T8 aluminum alloy beams with increased wall thickness, ensuring the structure remains perfectly rigid under significant weight loads.

Another critical concern for outdoor stages is weather resistance. The "Curve" or Arc Roof geometry is aerodynamically superior to flat roofs, allowing wind to flow over the structure more efficiently. Additionally, the curved canopy ensures rapid water runoff, eliminating the risk of water pooling which can lead to dangerous weight accumulation during heavy rain. For stability on variable terrain, the system features a 4-tower ground support design with heavy-duty leveling jacks and outriggers.
