packing weight:1900kg
packing volume: 16cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | sets | 3.00 m | 50×3.0 | CS289×289 | pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 4 pcs |
| Steel Base S | 4 pcs |
| Top Section S | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | sets | 1.00 m | 50×3.0 | CS289×289 | pcs |
| 9.00 m Top Beam | sets | 3.00 m | 50×3.0 | CS289×289 | 3 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 12.00 m Arch Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | pcs |
| 2.00 m | 50×3.0 | CS289×289 | 24 pcs |
| .00 m | 50×3.0 | CS289×289 | pcs |
| 9.00 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 12 pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | pcs |
| 1.00 m | 50×3.0 | CL30,289*50 | pcs |
| Roof Components |
| spigot multi cube, use for roof beam truss | CS289×289 | pcs |
| Connect plate with clamp | pcs |
| Single clamp | 48 pcs |
| Double clamp | 16 pcs |
| roof canopy material:pvc, Blue Colour or customized. | 196.16 | 1 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2 pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| Wings Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

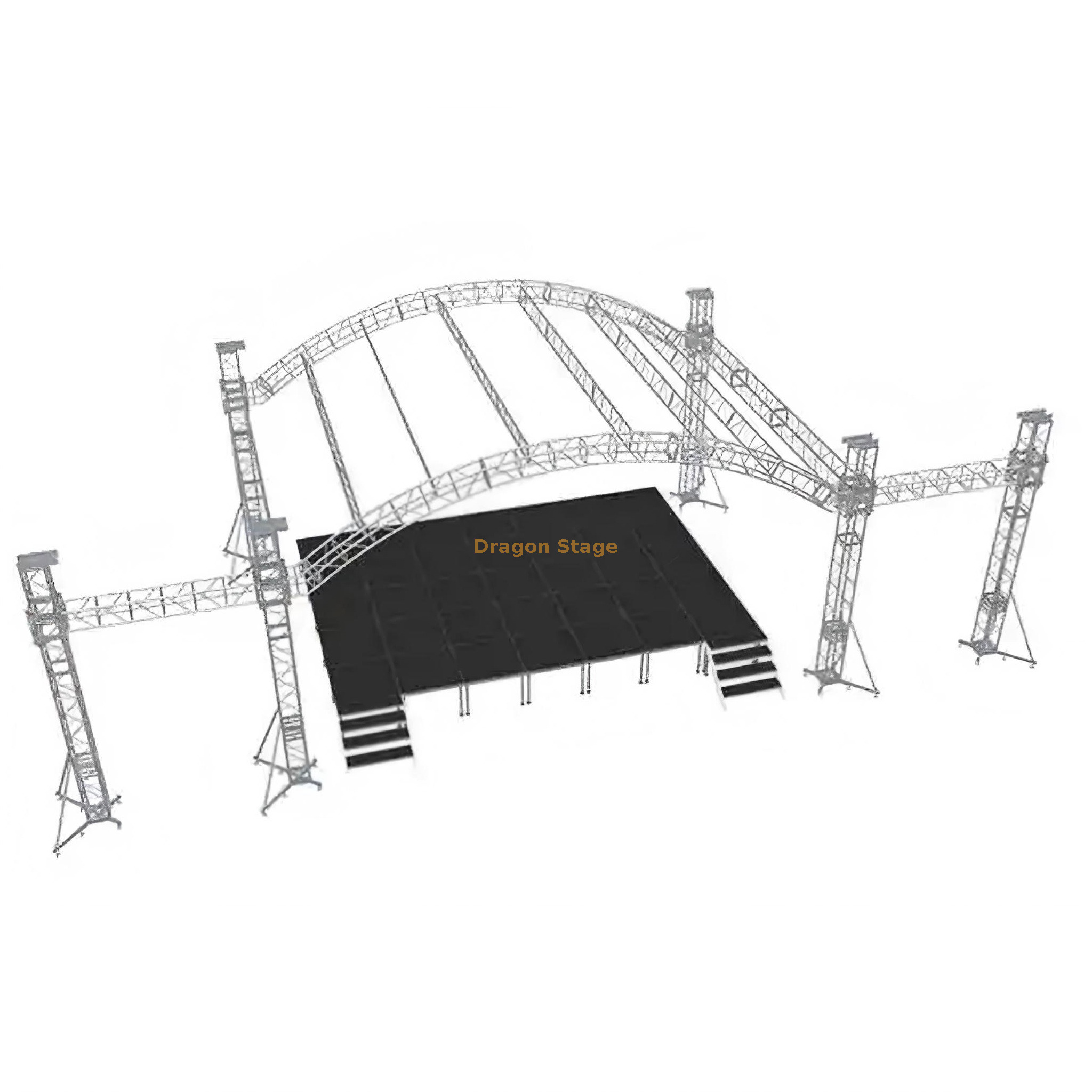

Professional Curved Roof Stage Truss System – 10m x 9m x 7m
Take your outdoor production to the next level with our Curved Roof Aluminum Alloy Stage Truss. Engineered for durability and visual impact, this system provides a massive 10m x 9m covered performance area, making it ideal for mid-to-large-scale concerts, festivals, and corporate events.
Constructed from high-grade, lightweight aluminum alloy, this mobile stage system offers exceptional
load-bearing capacity for lighting rigs and LED screens. The elegant curved roof design not only provides superior rain runoff but also enhances the professional aesthetic of your venue.
Key Features:
Expansive Dimensions: A primary stage area of 10m (length) x 9m (depth) with a clearance height of 7m for impressive vertical stage design.
Integrated Speaker Wings: Includes two dedicated 2m wide side wings specifically designed for hanging line-array speakers and side-stage branding.
Modular Aluminum Construction: Built with heavy-duty aluminum alloy trussing for quick assembly, rust resistance, and easy transport.
All-Weather Performance: The arched roof structure is designed to support heavy PVC canopies, ensuring your gear and talent stay dry.
Professional Rigging: Perfect for mounting moving head lights, audio stacks, and promotional banners.
Specifications:
Overall Size: 10m (L) x 9m (D) x 7m (H)
Speaker Wings: 2m Width (each side)
Material: High-strength Aluminum Alloy
Roof Style: Arched / Curved Assembly
