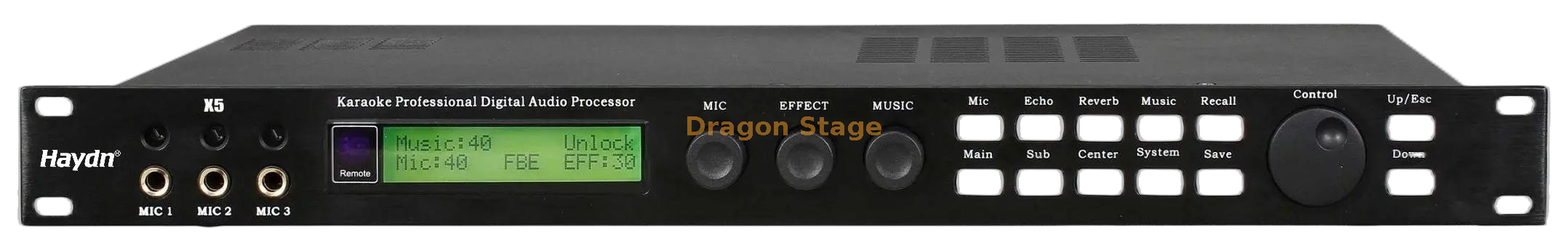

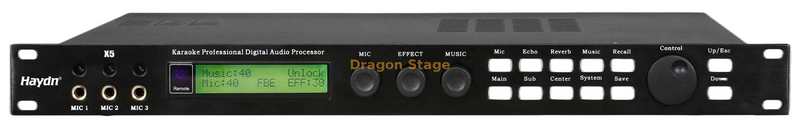

X5 Professional Karaoke DSP Processor
The Dragon Stage X5 Karaoke Processor is an all-in-one professional karaoke audio processor that combines advanced DSP processing, microphone effects and loudspeaker management into a single compact unit. Designed for karaoke venues, KTV rooms, bars, clubs and entertainment systems, the X5 delivers clear vocals, stable feedback suppression and flexible system tuning for professional sound reinforcement.
Powered by a 32-bit DSP with 24-bit audio processing, the X5 provides independent control over music, microphones and speaker outputs, allowing installers and sound engineers to optimize every aspect of the audio system.
The processor integrates easily with Power Amplifiers, PA Speakers and complete Stage Sound System solutions.
Key Features
Professional karaoke DSP processor
32-bit DSP architecture
24-bit digital audio processing
Independent microphone and music processing
Professional speaker management
Built-in feedback suppression
Delay and limiter functions
Multiple output channels
Preset storage
PC software configuration
User and administrator modes
Compact 1U rack-mount design
Advanced DSP Processing
The X5 offers flexible audio tuning for both music playback and vocal performance.
Music Processing
7-band parametric equalizer
Independent gain adjustment
Professional tonal optimization
Microphone Processing
15-band parametric equalizer
Three-level feedback suppression
Vocal enhancement
Independent microphone control
Speaker Outputs
Separate processing is available for:
Main Left/Right
Center
Subwoofer
Rear Surround
Each output includes independent EQ, delay and limiter settings for precise loudspeaker optimization.
Professional Speaker Management
Unlike basic karaoke mixers, the X5 incorporates loudspeaker processing functions to improve overall system performance.
Features include:
These functions help achieve balanced sound distribution while protecting connected loudspeakers and amplifiers.
Preset Management
The X5 supports multiple operating modes for different venues and applications.
This allows installers to save optimized settings for different rooms or performance requirements.
Technical Specifications
Specification | X5 |
|---|
DSP | 32-bit |
Audio Processing | 24-bit |
Maximum Input Level | 4V RMS |
Maximum Output Level | 4V RMS |
Music Input Gain | 12 dB |
Microphone Sensitivity | 64 mV (Output 4V) |
Signal-to-Noise Ratio | >90 dB |
Power Supply | 220V / 50Hz |
Dimensions | 44 × 482 × 215 mm |
Net Weight | 3.9 kg |
Typical Applications
The X5 Karaoke Processor is suitable for:
Why Choose the X5 Karaoke Processor?
Compared with traditional karaoke mixers, the X5 provides:
Higher audio clarity
Better vocal processing
Professional DSP speaker management
Independent music and microphone control
Flexible output configuration
Advanced loudspeaker protection
Easy PC configuration
Reliable performance for commercial entertainment venues
