Professional Digital Speaker Processor for PA Systems

The Dragon Stage Digital Speaker Processor Series is designed to optimize the performance of professional loudspeaker systems by providing advanced digital signal processing, loudspeaker management and system protection. Built on a powerful 56-bit DSP platform with 192kHz sampling and 24-bit AD/DA conversion, these processors deliver precise crossover control, equalization, delay and loudspeaker protection for touring, fixed installation and rental applications.

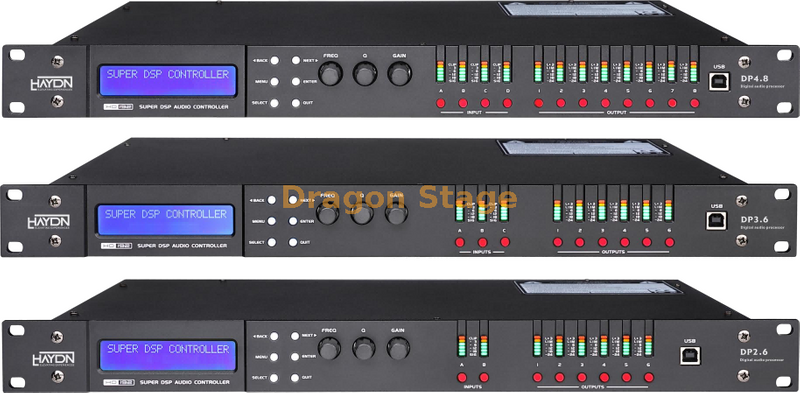

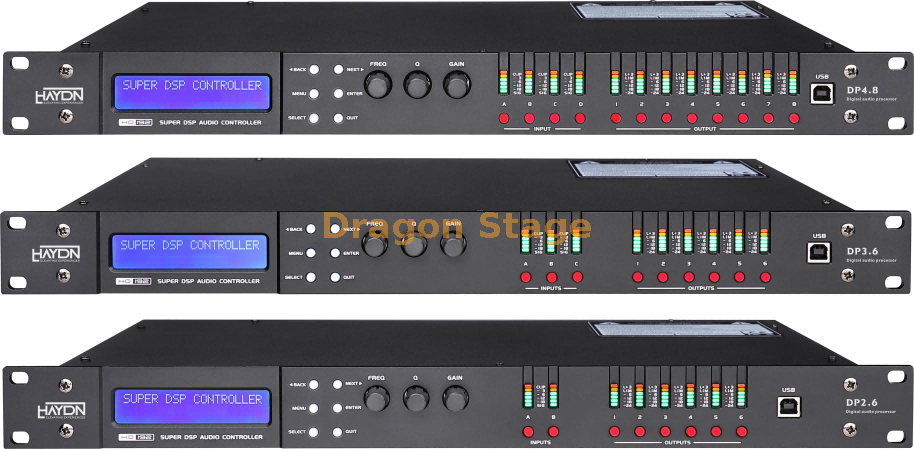

Available in multiple configurations—including 2×4, 2×6, 3×6 and 4×8 input/output options—the DSP processor can easily manage everything from compact conference systems to large-scale concert PA installations.

For complete audio solutions, the processor integrates seamlessly with Power Amplifiers, Line Array Speakers and Subwoofers.

Key Features

• Powerful 56-bit DSP processor

• 192kHz sampling frequency

• 24-bit AD/DA converters

• Signal-to-noise ratio >110dB

• Ultra-low distortion (<0.006%)

• Graphic EQ and Parametric EQ

• Delay up to 1300ms (input) and 680ms (output)

• Compressor and limiter

• Noise gate

• Phase adjustment

• Flexible crossover filters

• USB, RS232 and RS485 communication

• Neutrik XLR connectors

• Preset management

• Remote control capability

Advanced DSP Processing

The processor offers comprehensive loudspeaker optimization tools including:

• 31-band Graphic Equalizer

• 15-band Parametric Equalizer

• High-pass filters

• Low-pass filters

• Band-pass filters

• Notch filters

• Shelf filters

• All-pass filters

• Variable-Q filters

Professional crossover options include:

• Butterworth

• Bessel

• Linkwitz-Riley

with slopes up to 48 dB/Octave.

System Protection

Designed for professional installations, the DSP includes multiple loudspeaker protection functions:

• Peak limiter

• RMS limiter

• Compressor

• Noise gate

• Delay alignment

• Driver protection

• Password protection

• Factory/User operating modes

• Preset backup and restoration

These features help maximize system reliability while protecting loudspeakers and amplifiers during demanding performances.

Flexible Connectivity

The processor supports multiple communication methods for easy integration into professional audio systems.

Interfaces include:

• USB

• RS232

• RS485

• Neutrik balanced XLR inputs and outputs

Optional external control protocols are also supported for larger sound reinforcement projects.

Available Models

Typical Applications

The Digital Speaker Processor Series is suitable for:

• Concert sound systems

• Touring productions

• Line array systems

• Conference audio systems

• Houses of worship

• Theaters

• Stadium PA systems

• Rental companies

• Nightclubs

• Hotels

• Exhibition centers

• Permanent audio installations

Why Use a Speaker Processor?

A professional DSP speaker processor improves overall sound system performance by:

• Optimizing crossover frequencies

• Aligning speaker timing

• Correcting room acoustics

• Protecting loudspeakers

• Improving vocal clarity

• Enhancing bass response

• Reducing system distortion

• Simplifying amplifier management

When used together with professional loudspeakers and amplifiers, a DSP processor significantly improves overall audio quality and system reliability.
