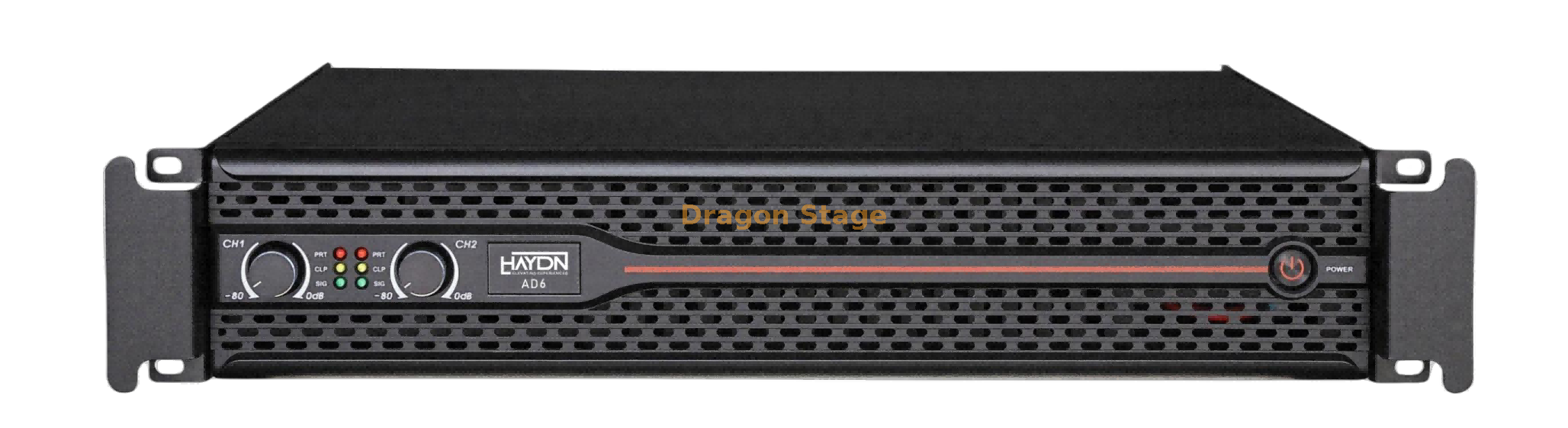

AD 2U Class D Digital Power Amplifier Series

The AD 2U Class D Digital Power Amplifier Series is designed for professional sound reinforcement systems that require high continuous output, superior efficiency and long-term reliability. Featuring advanced Class D amplifier technology, Dual PFC switching power supply and a rugged 2U rack-mount chassis, the AD 2U Series delivers powerful performance while reducing energy consumption and operating weight.

Compared with conventional analog amplifiers, the AD 2U Series offers significantly higher efficiency, lower heat generation and improved portability. The amplifiers remain stable under demanding operating conditions and provide clean, dynamic audio for both mobile and permanent installations.

Available in four output configurations ranging from 2×600W to 2×1350W at 8Ω, the series supports 2Ω operation, making it suitable for driving multiple loudspeakers while maintaining excellent control and low distortion.

For complete sound reinforcement systems, the AD Series integrates perfectly with Stage Sound System and professional passive loudspeaker systems.

Key Features

• High-efficiency Class D amplifier

• Professional 2U rack design

• Dual PFC switching power supply

• Stable operation from 90–265V AC

• 2-channel high-power output

• Supports 2Ω speaker loads

• Excellent damping factor (≥750)

• Ultra-low THD and IMD

• High dynamic response

• Lightweight for touring applications

Advantages of Class D Technology

The AD 2U Series combines high output capability with modern digital amplifier technology to provide:

• Up to 40% lower power consumption

• Reduced amplifier weight

• Lower heat generation

• Excellent transient response

• Stable output under varying power conditions

• Reduced operating costs

• Long-term reliability for continuous operation

Dual PFC Switching Power Supply

The Dual PFC power supply automatically compensates for voltage variations while improving power conversion efficiency. Wide-voltage compatibility (90–265V AC) allows the amplifier to operate reliably in different countries without manual voltage selection.

Technical Specifications

AD6

AD8

AD10

AD13

Typical Applications

The AD 2U Series is suitable for:

• Touring audio systems

• Concert sound reinforcement

• Professional PA systems

• Large passive speaker systems

• Line array systems

• Subwoofer amplification

• Rental companies

• Houses of worship

• Stadiums

• Theaters

• Outdoor festivals

• Fixed installations
