FIR Digital Speaker Processor for Professional Loudspeaker Management

The Dragon Stage FIR Digital Speaker Processor is a professional 4×8 loudspeaker management system designed for high-performance touring, fixed installations and premium sound reinforcement applications. Equipped with advanced 32-bit DSP processing and FIR (Finite Impulse Response) filtering, it delivers superior phase alignment, precise crossover control and exceptional audio clarity.

Unlike conventional DSP processors, FIR technology enables more accurate frequency response correction and phase optimization, resulting in improved system coherence, enhanced vocal intelligibility and a more natural listening experience.

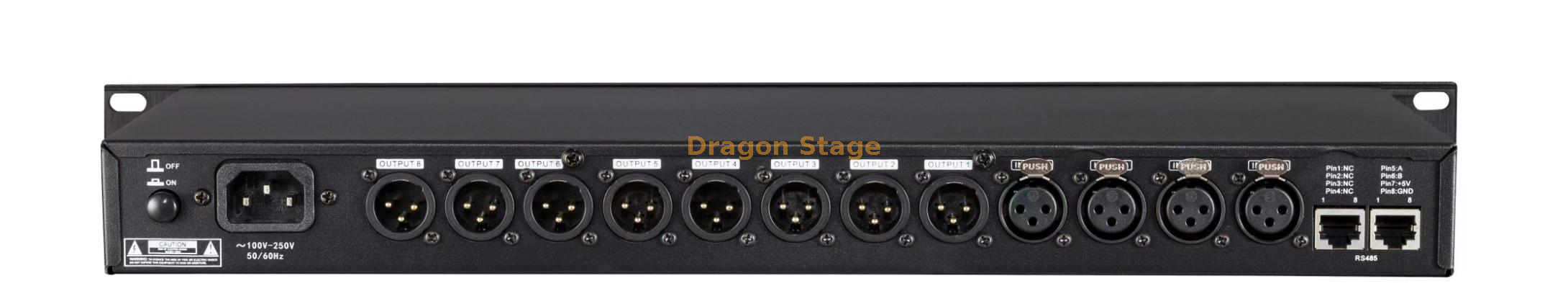

The processor supports 4 balanced inputs and 8 balanced outputs, making it ideal for managing line array systems, subwoofers, stage monitors and multi-zone speaker configurations.

For complete system integration, the processor works seamlessly with Power Amplifiers, Line Array Speakers and Subwoofers.

Key Features

• Professional 4-input / 8-output architecture

• Advanced 32-bit DSP processor

• FIR filter technology

• High-performance ADC/DAC conversion

• Wide dynamic range

• Low distortion audio processing

• USB, TCP/IP and COM communication

• RS485 networking

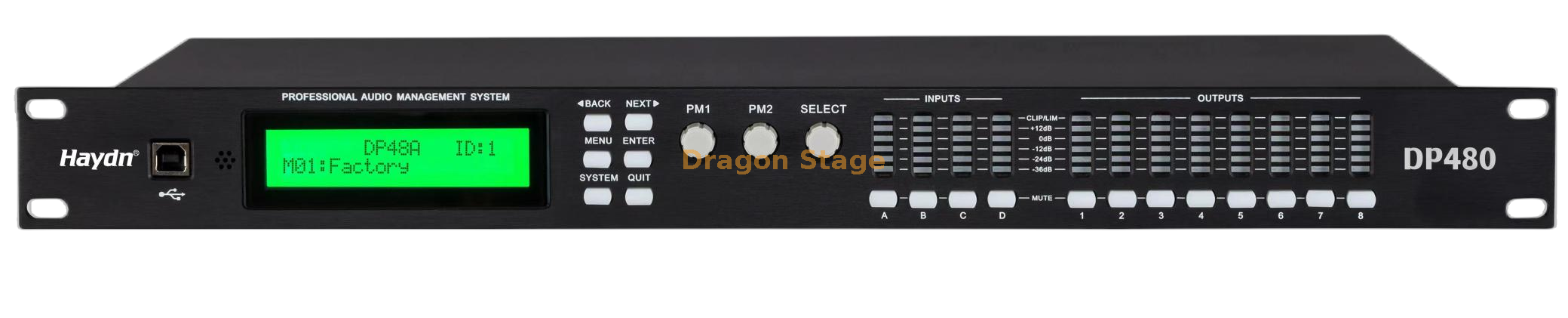

• LCD display

• Independent channel control

• Preset memory

• Security password protection

• Driver-free USB operation

• Plug-and-play configuration

FIR Filter Technology

FIR (Finite Impulse Response) filters provide significantly improved loudspeaker optimization compared with traditional IIR filters.

Benefits include:

• Linear phase response

• Accurate phase alignment

• Improved crossover performance

• Better impulse response

• Reduced phase distortion

• Higher speech intelligibility

• Improved stereo imaging

• More consistent system coverage

These advantages make FIR processors particularly suitable for professional concert systems, line arrays and high-end installed audio projects.

Powerful Audio Processing

Each input channel supports:

• Gain adjustment

• Mute

• Noise gate

• Phase inversion

• 15-band parametric EQ

• Delay

• Compressor

• Feedback suppression

Each output channel includes:

• Gain control

• Phase adjustment

• Parametric EQ

• FIR filtering

• High-pass filters

• Low-pass filters

• Band-pass filters

• Band-stop filters

• All-pass filters

• Delay

• Limiter

Multiple crossover alignments are supported, including:

• Butterworth

• Bessel

• Linkwitz-Riley

with crossover slopes up to 48 dB/Octave.

Flexible System Control

The processor is designed for both touring engineers and fixed installations.

Supported functions include:

• USB configuration

• TCP/IP communication

• RS485 networking

• 10 onboard presets

• PC preset synchronization

• Matrix routing

• Security management

• Driver-free USB operation

• Real-time parameter adjustment

Technical Specifications

Typical Applications

The FIR DSP Processor is suitable for:

• Touring sound systems

• Concert productions

• Line array systems

• Stadium PA

• Houses of worship

• Conference centers

• Theaters

• Broadcast studios

• Rental companies

• Large auditoriums

• Multi-zone sound systems

• Permanent audio installations

Why Choose FIR DSP?

Compared with conventional DSP processors, FIR processing offers:
