FT33-T37
4.5kg
(9.93Ib)
HT33-T37
5.2kg
(11.49Ib)

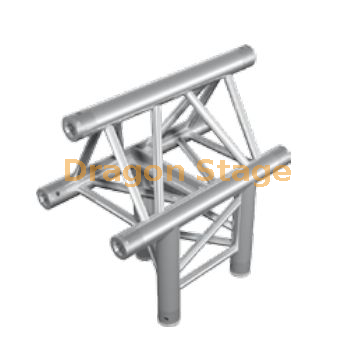

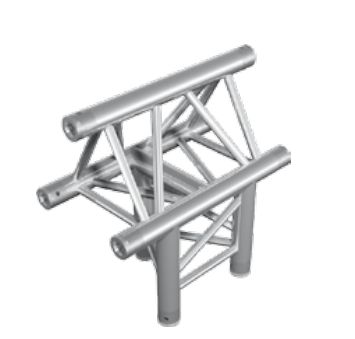

3-way horizontal T-junctionapex up
0.5m (1.64ft)
Answer Segment & Snippet Card
What are the specifications of the Dragonstage 3-way horizontal apex up triangle truss junction?
The Dragonstage 3-way horizontal T-junction (apex up) is designed for 290mm triangle truss systems. The FT33-T37 weighs 4.5kg (9.93lb), while the reinforced HT33-T37 weighs 5.2kg (11.49lb). Both utilize 50x2mm aluminum tubing and measure 0.5m (1.64ft) in length, serving as a high-strength intersection point for horizontal truss spans in advanced lighting rigs.
| Feature | FT33-T37 Specification | HT33-T37 Specification |
| Type | 3-Way Horizontal T-Junction (Apex Up) | 3-Way Horizontal T-Junction (Apex Up) |
| Tube Dimensions | 50 × 2 mm (2 × 0.08") | 50 × 2 mm (2 × 0.08") |
| Weight | 4.5kg (9.93lb) | 5.2kg (11.49lb) |
| Length | 0.5m (1.64ft) | 0.5m (1.64ft) |
| Material | 6082-T6 Aluminum Alloy | 6082-T6 Aluminum Alloy |
Product Detailed Description
TheFT33-T373-way horizontal T-junction is a vital modular component for building professionaltriangle 50×2 tubes lighting truss aluminumstructures. Its apex-up configuration is specifically tailored for awedding & tour stage solution, allowing for a perpendicular truss span to intersect a main run with a clean visual profile. Dragonstage ensures all joints are precision-welded to meet strictsafety standards & engineering constraints, providing maximum reliability for overhead equipment.
Understandingwhat is a lighting truss and what is it used forhighlights the need for versatile junctions. Made from 6082-T6 aluminum, theFT33-T37facilitates perpendicular horizontal connections effortlessly. For detailed data on structural safety, please refer to ourload capacity / load analysisguide. Trust our hardware for professional, safe, and sophisticated event installations.
Frequently Asked Questions (FAQ)
1. When should I use an "Apex Up" horizontal T-junction?
"Apex Up" is required when the triangle truss's single main chord is positioned at the top. This orientation is commonly chosen to match the orientation of existing horizontal runs, ensuring that mounting points for lighting or signage remain consistent across the grid.
2. Why should I choose the HT33-T37 over the FT33-T37?
The HT33-T37 (5.2kg) is a reinforced heavy-duty version. It is recommended for permanent installations or touring rigs that support heavy LED screens and high-stress lighting equipment where extra structural rigidity is paramount.
3. Is this T-junction compatible with 290mm systems?
Yes, our junctions are manufactured to global 290mm standards using high-precision conical couplers. While compatible with most major brands, we recommend using Dragonstage components together to ensure the most accurateload capacityand safety alignment.
