Indoor LED Screen Installation and Support Structures
Material
Aluminum Alloy
Connection System
Screw Connection
Drawing Type
2D CAD Drawing
Design Purpose
Structural support frame for LED screen installation and irregular shape structure construction
Related Products
LED Screen Installation Load-Bearing and Support Structures
Aluminum Square Tube LED Support Frame Overview
The aluminum square tube LED support frame is a customized structural component designed for indoor LED display installation, screen stacking systems and special-shaped LED structure construction.
Using 50×50mm aluminum square tubes with a 3mm wall thickness, this frame provides a lightweight, rigid and modular solution for LED screen support applications where accurate positioning and stable installation are required.
The square tube frame structure allows different frame sizes to be combined according to LED screen dimensions and project layouts. The screw connection system provides convenient assembly, dismantling and adjustment during installation.
Compared with traditional steel support structures, aluminum alloy construction offers advantages including lightweight handling, corrosion resistance and improved installation efficiency, making it suitable for indoor event structures, exhibitions, commercial displays and professional LED installations.
Main Features
1. Stable Square Tube Frame Structure
The square tube frame design provides:
High structural rigidity;
Stable LED screen support;
Accurate dimensional control;
Good resistance against deformation;
Flexible combination for different LED layouts.
2. Lightweight Aluminum Construction
The aluminum alloy structure provides:
High strength-to-weight ratio;
Easy transportation and installation;
Corrosion resistance;
Reduced installation workload;
Long service life for repeated event applications.
3. Flexible Customized Dimensions
The frame system supports:
Different LED screen sizes;
Custom-shaped LED structures;
Modular combination of multiple frames;
Adaptation to special installation requirements;
Project-based structural customization.
Structural Components
Component
Description
Main Frame Tube
50×50mm aluminum square tube forming the primary support structure
1. What is the aluminum square tube LED support frame used for?
The aluminum square tube LED support frame is mainly used for indoor LED screen installation, display support structures and customized event frameworks.
2. What is the specification of the main tube?
The frame uses 50×50mm aluminum square tubes with a 3mm wall thickness.
3. What connection system does the LED support frame use?
The structure uses screw connections, allowing convenient assembly and adjustment.
4. What dimensions are available for this LED frame?
Standard drawing dimensions include:

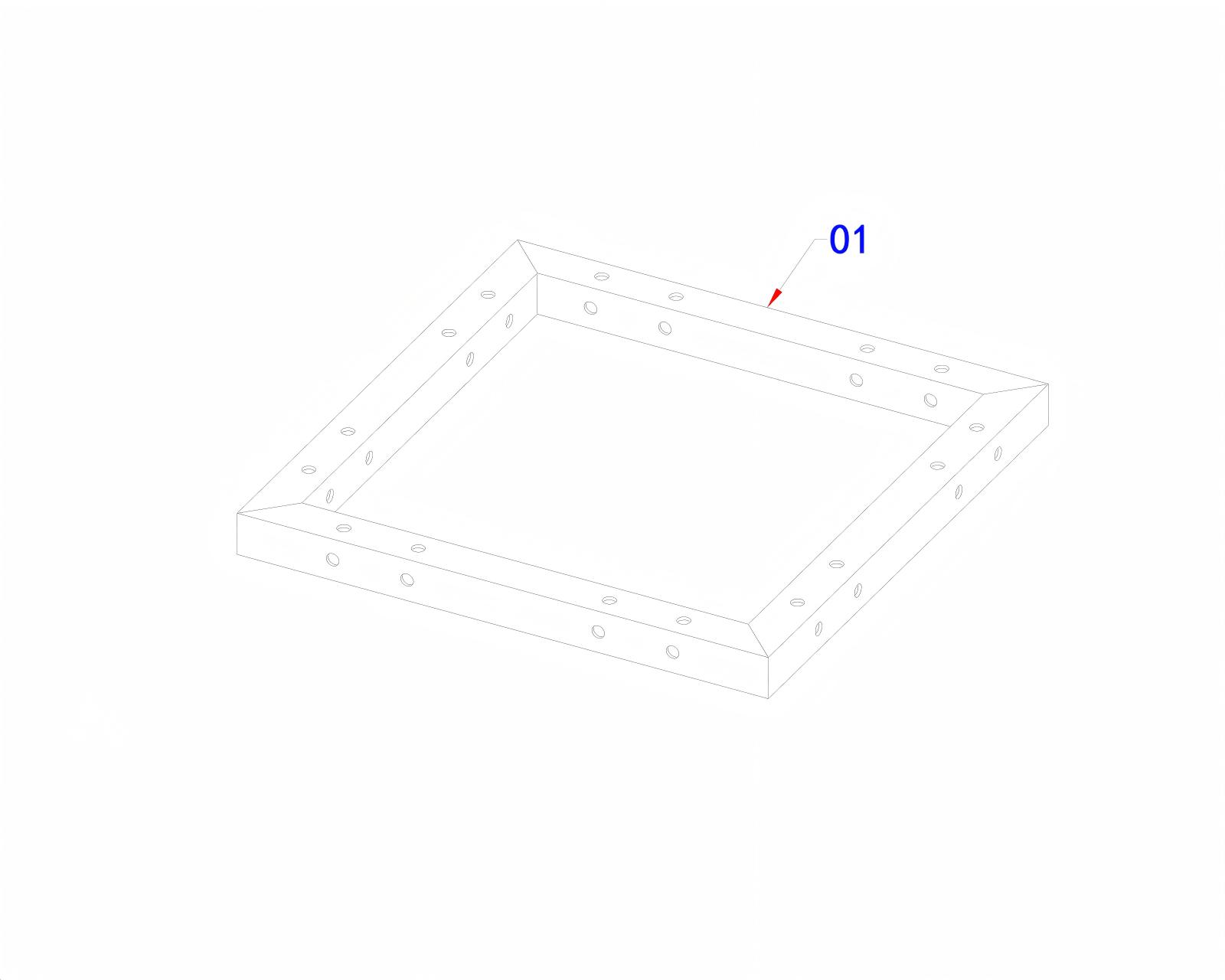

500×500×40mm;

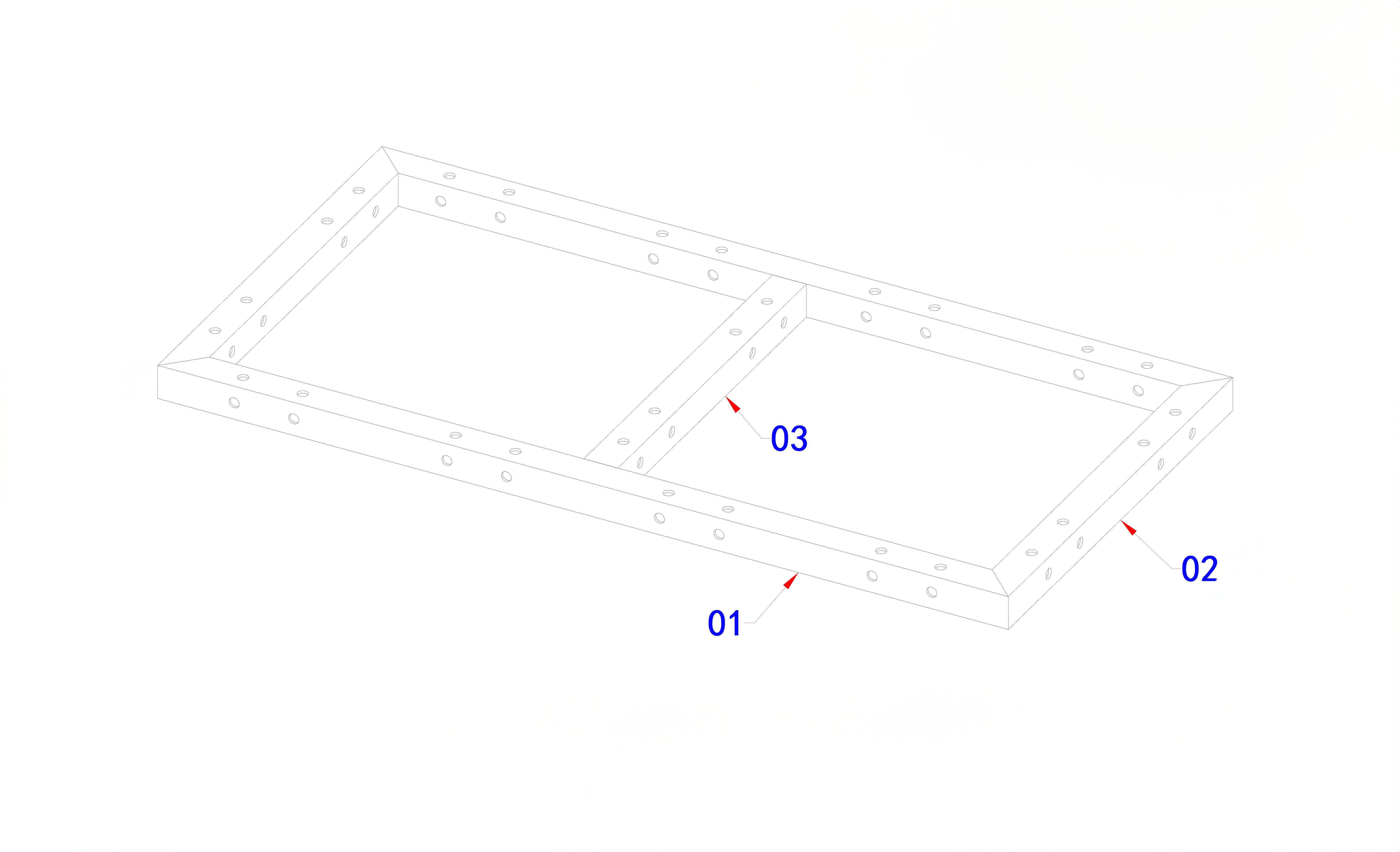

1000×500×40mm;

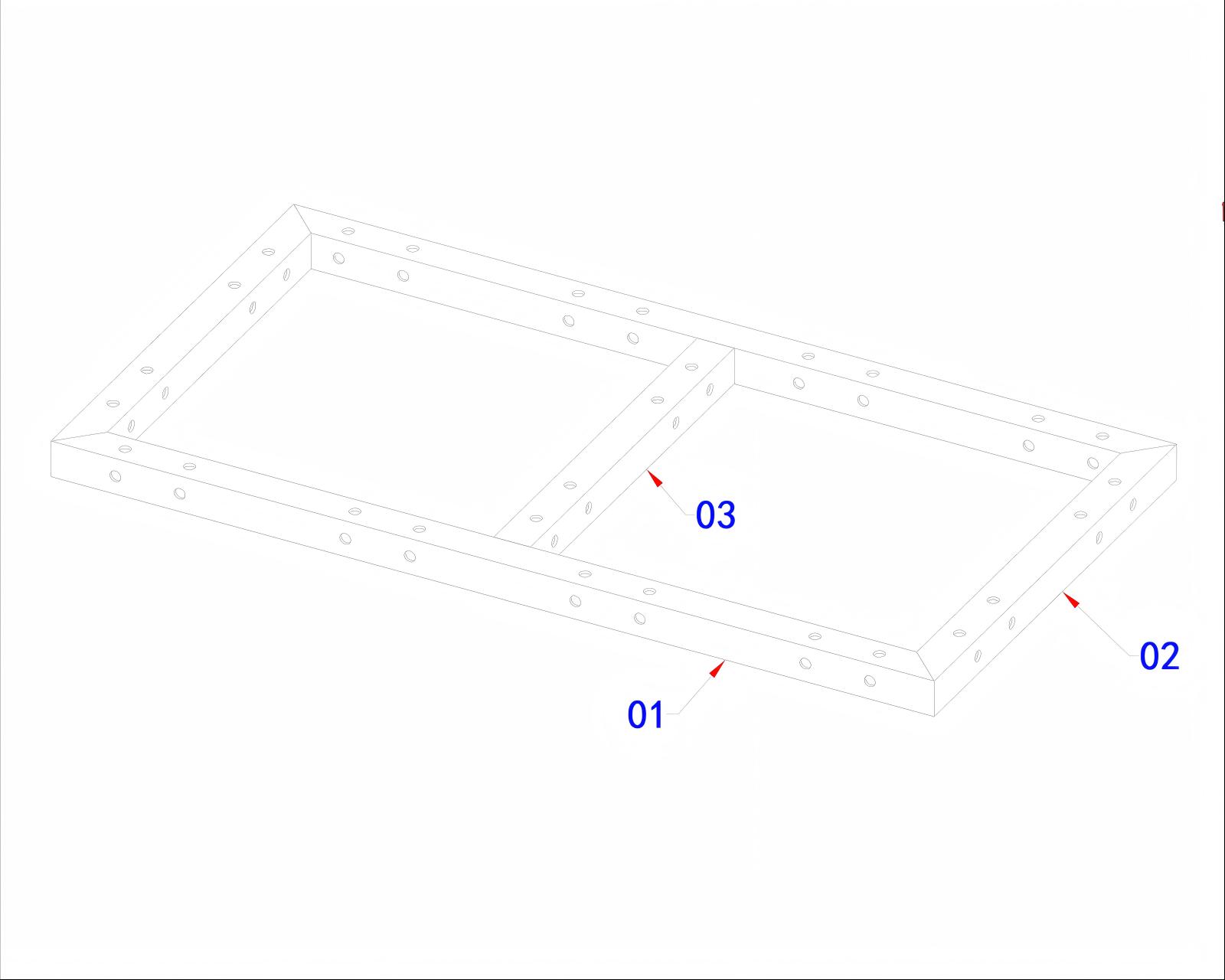

1000×960×40mm.
Customized dimensions can also be manufactured according to project requirements.
5. Can this frame be used for irregular LED structures?
Yes. The aluminum square tube frame can be customized for special-shaped LED screens and creative event structures.
Design Notice
The drawings represent standard aluminum square tube LED support frame configurations.
Actual structural performance depends on the complete LED system design, screen weight, connection method, installation environment and project requirements.
For large-scale LED installations or complex structures, professional structural evaluation is recommended according to actual application conditions.
