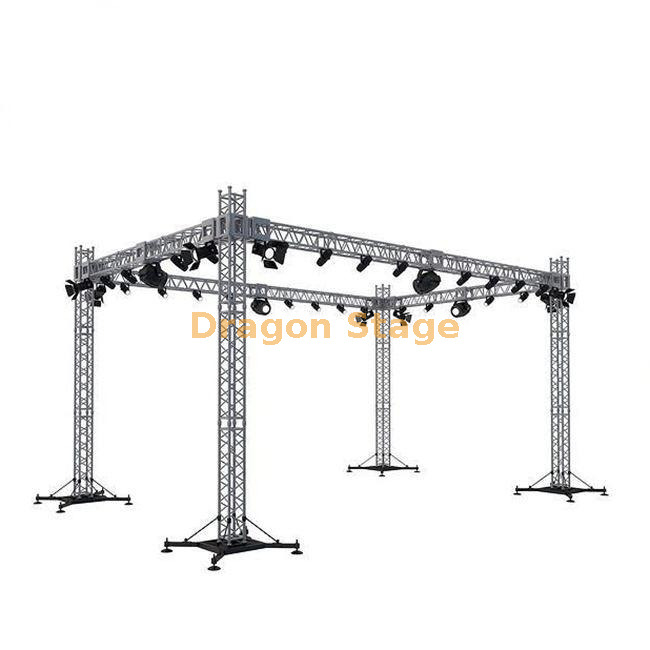

Aluminum Alloy Lighting Truss System for Stage & Event Rigging (5x5x3m Spigot Truss System)

This aluminum alloy lighting truss system is a 5m wide × 5m deep × 3m high (adjustable 2.7–3m) modular structure built with 290mm spigot truss, designed for supporting stage lighting, LED screens, and event equipment with high strength and flexible configuration.

packing weight:740kg

packing volume:5cbm

Product Description

This aluminum alloy lighting truss system is a standard modular event structure with a 5m (W) × 5m (D) footprint and adjustable height from 2.7m to 3m, built using 290mm spigot truss, one of the most widely used structural profiles in the event industry.

The 290mm truss size offers an optimal balance between load capacity and portability, making it suitable for small to medium-sized event setups. You can explore similar systems in lighting truss systems and standard spigot truss structures.

From an engineering standpoint, this configuration is commonly used due to its stable geometry and efficient load transfer. For deeper structural understanding, refer to load analysis for modular stage systems and structural engineering fundamentals.

The system follows a modular connection logic described in modular system design principles, allowing quick assembly using spigot and pin connections. Installation efficiency can be further understood in installation methodology guide.

This 5x5m truss structure is especially suitable for:

• Small concert lighting rigs

• Exhibition booth overhead structures

• DJ and event lighting frames

• LED screen support systems

For real-world applications, see concert & event stage solutions and exhibition booth solutions.

Material quality is critical for safety and long-term performance. Learn more from certified aluminum materials and 6061-T6 vs 6082-T6 aluminum comparison.

This truss system can also be combined with stage platforms to create a complete stage + lighting solution, widely used in event production.

Product Highlights

• Standard size: 5m × 5m footprint (ideal for modular event setups)

• Adjustable height: 2.7m–3m for flexible rigging requirements

• 290mm spigot truss: industry-standard size for balance of strength and weight

• Fast installation with pin & spigot connection

• High load capacity for lighting and LED equipment

• Suitable for indoor and outdoor events

Structural Engineering Insight

The 290mm spigot truss system is widely used because:

• It provides sufficient load capacity for lighting fixtures

• It maintains structural stability over medium spans (5m typical)

• It allows fast modular assembly with repeatable connections

For deeper technical understanding:

• what is lighting truss

• how much weight can a lighting truss hold

• how to assemble lighting truss

These factors directly influence safety, especially in dynamic event environments.

Application Scenarios

This 5x5m aluminum lighting truss system is commonly used in:

• Concert stage lighting structures

• Exhibition and trade show booths

• DJ lighting frames and club setups

• LED screen support structures

• Temporary event rigging systems

Explore more in event truss applications and lighting truss use cases.

FAQ

What size is this lighting truss system?

It is 5m wide × 5m deep × 3m high, with adjustable height from 2.7m to 3m.

What type of truss is used?

This system uses 290mm spigot truss, a standard size for event lighting structures.

Is this suitable for outdoor events?

Yes, but structural safety depends on wind load and anchoring. Refer to safety standards for proper setup.

Looking for a standard 5x5m lighting truss system or custom size?

Browse more options in lighting truss products or contact us via contact page for a tailored solution.
