packing weight:450kg
packing volume:4cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 2 pcs |
| 2 | 50×3.0 | CS389×389 | 1 pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| 0.5 | 50×3.0 | CS389×389 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 4 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | 2 pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |

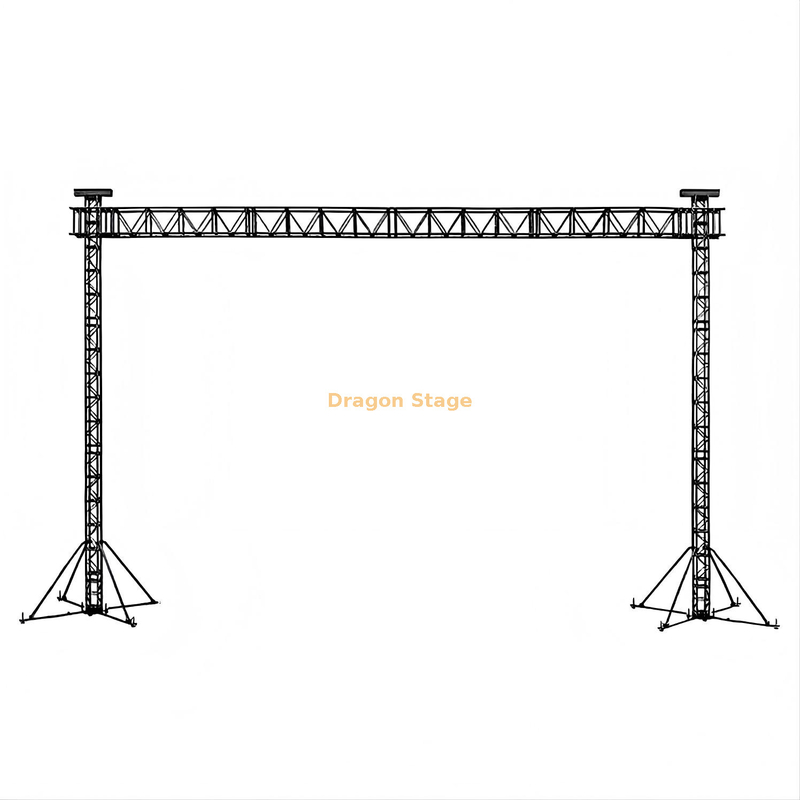

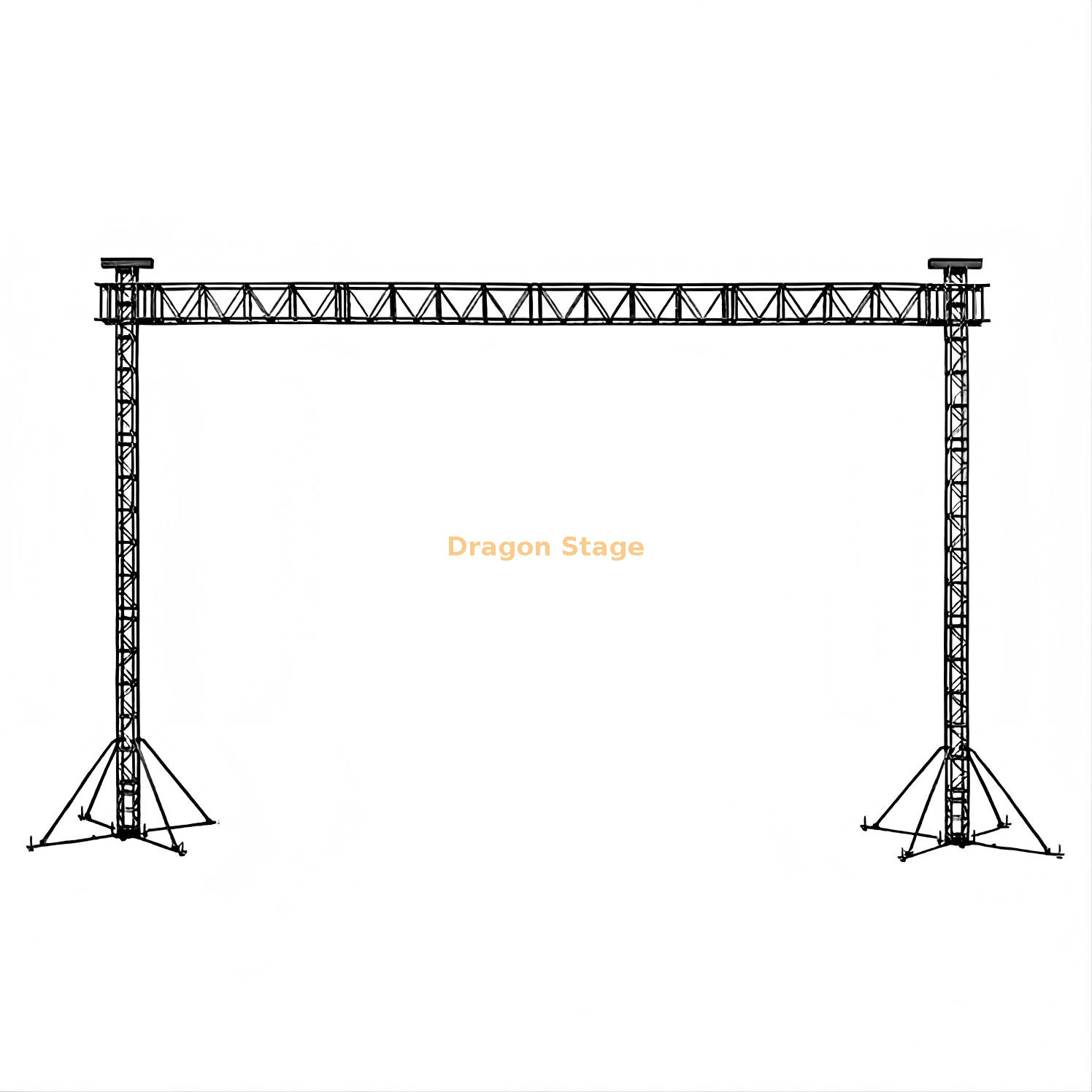

This Professional 8m x 8m Aluminum Gantry Truss System provides a robust and reliable rigging solution specifically engineered for large-format LED displays and video walls. Its vertical-focused "goal post" configuration is designed for events requiring high-impact visual height with a minimal ground footprint.
Optimized for LED Rigging: The 8m width is perfectly suited for standard wide-format LED panels, while the 8m height ensures your video content is visible even in crowded event spaces.
High-Stability Gantry Design: The structure utilizes two vertical support towers equipped with wide-span outriggers (stabilizers) and heavy-duty base plates to maintain structural integrity and prevent tipping, especially when supporting heavy LED loads.
Modular & Portable: Constructed using standard aluminum box truss components, the system is easy to transport and assemble on-site. The modular nature allows for future expansion or height adjustments.
Integrated Lifting Capabilities: Designed to work seamlessly with manual or electric chain hoists, allowing for safe ground-level screen assembly and controlled elevation.
Durable Performance: Manufactured from high-strength aluminum alloy, this system offers a superior strength-to-weight ratio and natural resistance to outdoor environmental conditions.
