packing weight:400kg
packing volume:3cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 2 pcs |
| 2 | 50×3.0 | CS389×389 | 1 pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| 0.5 | 50×3.0 | CS389×389 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | pcs |
| 2 | 50×3.0 | CS289×289 | 4 pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |

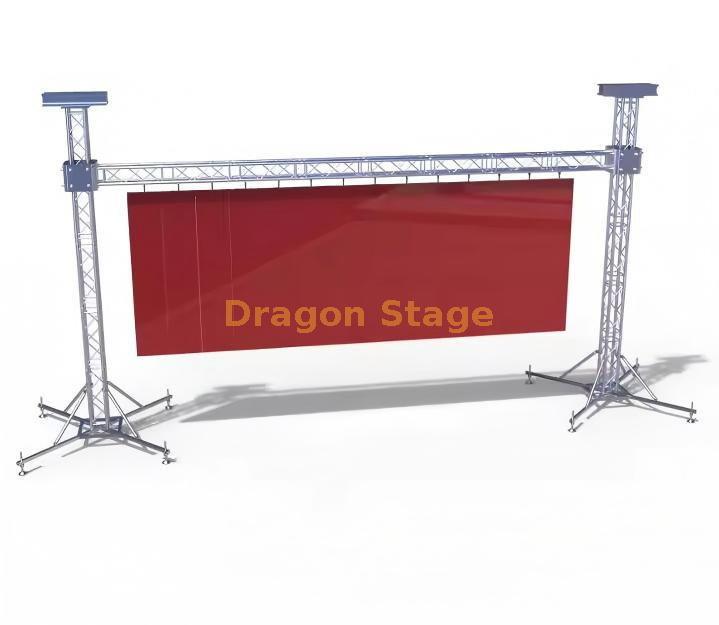

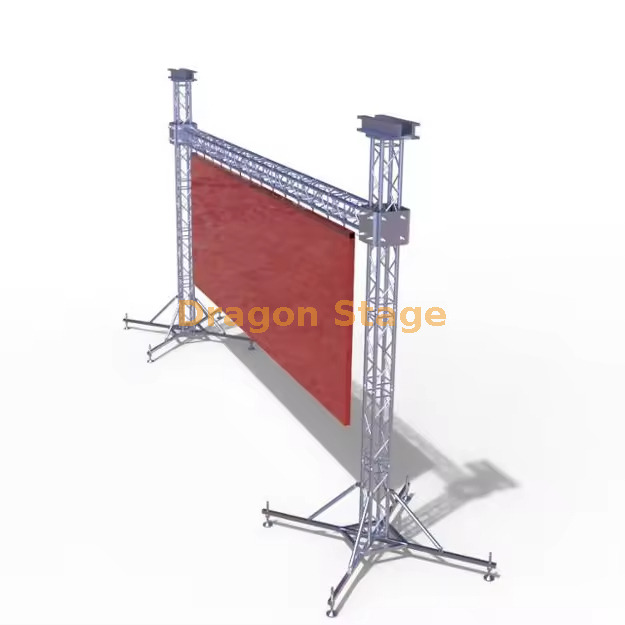

The 8m × 5m Aluminum Goalpost Truss System is the industry-standard solution for safely hanging large outdoor or indoor LED video walls, banners, and stage backdrops. Featuring an 8-meter fully clear span supported by two sturdy truss towers and a heavy-duty top beam (usually 400×400mm spigot truss), it provides 5 meters of hanging height and exceptional load capacity.
Perfect for concerts, festivals, corporate events, sports venues, and rental companies needing a clean, unobstructed LED screen support that sets up quickly and looks professional from every angle. Lightweight yet extremely strong, TUV-certified, and compatible with all major LED cabinet brands.
