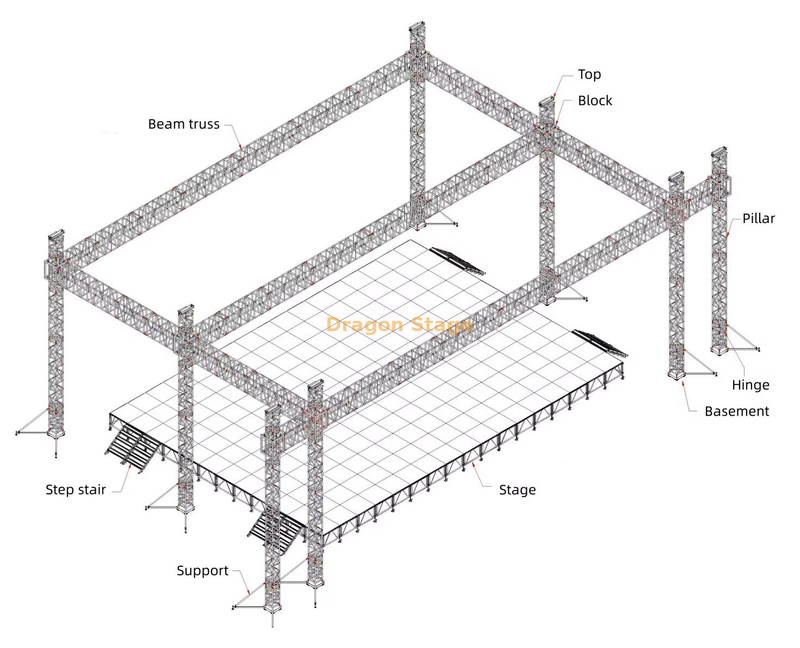

24x16x12m Aluminum Outdoor Stage Truss Frame Structure for Consert with 2m Line Array Truss

5 0 Reviews

total sizes 24x16x12m Aluminum Outdoor Stage Truss Frame Structure for Consert with 2m Line Array Truss

stage sizes 20.74x14.64m with 4 stairs and height 1.6-2m

Price: ￥ 155440 - 201600


fea:	truss system 600x760 stage truss system 680x1010
Availability:



Inquire

24x16x12m Aluminum Outdoor Stage Truss Frame Structure for Consert with 2m Line Array Truss

packing weight: 4000kg

packing volume: 54cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
24.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS600×760	24pcs
		2.00 m	50×4.0	CS600×760	0pcs
		1.00 m	50×4.0	CS600×760	0pcs
16.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS600×760	10pcs
		2.00 m	50×4.0	CS600×760	0pcs
		1.00 m	50×4.0	CS600×760	2pcs
11.00 m Pillar	6 sets	3.00 m	FALSE	CS450×450	18pcs
		2.00 m	FALSE	CS450×450	6pcs
		1.00 m	FALSE	CS450×450	0pcs
beam cube	Spigot cube 600x760				0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×4.0	CS600×760	0pcs
		2.00 m	50×4.0	CS600×760	2pcs
		1.00 m	50×4.0	CS600×760	0pcs
11.00 m Wings Pillar	2 sets	3.00 m	FALSE	CS450×450	6pcs
		2.00 m	FALSE	CS450×450	2pcs
		1.00 m	FALSE	CS450×450	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

packing weight: 7650kg

packing volume: 50cbm

packing weight: 4650kg

packing volume: 74cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
24.00 m Beam(front)	3 sets	3.00 m	50×5.0	CS680×1010	24pcs
		2.00 m	50×5.0	CS680×1010	0pcs
		1.00 m	50×5.0	CS680×1010	0pcs
16.00 m Beam(side)	2 sets	3.00 m	50×5.0	CS680×1010	10pcs
		2.00 m	50×5.0	CS680×1010	0pcs
		1.00 m	50×5.0	CS680×1010	2pcs
11.00 m Pillar	6 sets	3.00 m	FALSE	CS520×520	18pcs
		2.00 m	FALSE	CS520×520	6pcs
		1.00 m	FALSE	CS520×520	0pcs
beam cube	Spigot cube 680x1010				0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×5.0	CS680×1010	0pcs
		2.00 m	50×5.0	CS680×1010	2pcs
		1.00 m	50×5.0	CS680×1010	0pcs
11.00 m Wings Pillar	2 sets	3.00 m	FALSE	CS520×520	6pcs
		2.00 m	FALSE	CS520×520	2pcs
		1.00 m	FALSE	CS520×520	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
