| 0.4-0.8m | 0.8-1.2m | 1.2-2m |
| packing weight | 6620
| 7000
| 7450
|
| packing volume | 34 | 45 | 49 |
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 128 pcs |
| 1.22m stage brace | 144 pcs |
| 2.44m stage brace | 136 pcs |
| stand with extendable tube | 153 pcs |
| Stage adjustable base | 153 pcs |
| Stage Stair | wooden topping | total | 3 | steps | 2 pcs |

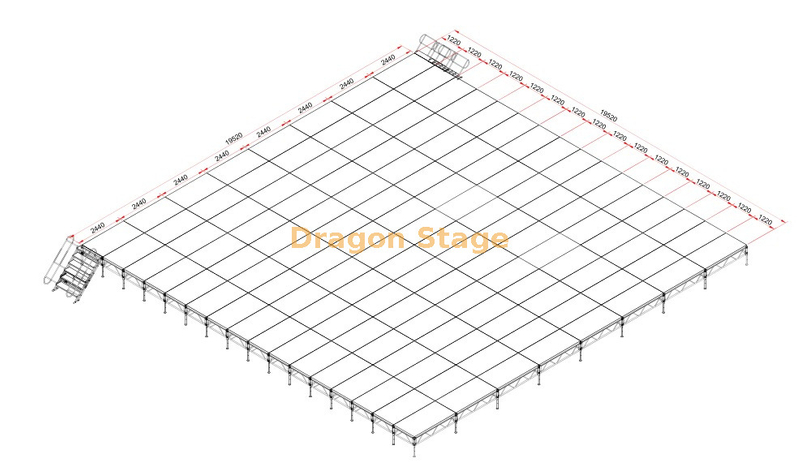

This expansive 19.52 m x 19.52 m aluminum stage system delivers a rock-solid, fully modular performance platform, perfect for major concerts, festivals, outdoor ceremonies, and large corporate events. Constructed using standard 1.22m x 2.44m (4ftx8ft) weatherproof stage decks with aluminum frames and plywood tops, supported by genuine legs (adjustable height 0.4–2.0m typical), it offers exceptional load capacity and rapid assembly.
The complete system includes two integrated access stairs, full perimeter bracing, and diagonal supports for maximum stability under heavy crowds and equipment. Easy to level on uneven ground and fully compatible with all standard Layher components for future expansion or reconfiguration. Trusted worldwide by top rental companies for events demanding a safe, professional, and visually impressive stage solution.
