16x12x8m Curved Roofing Stage Truss System

5 0 Reviews

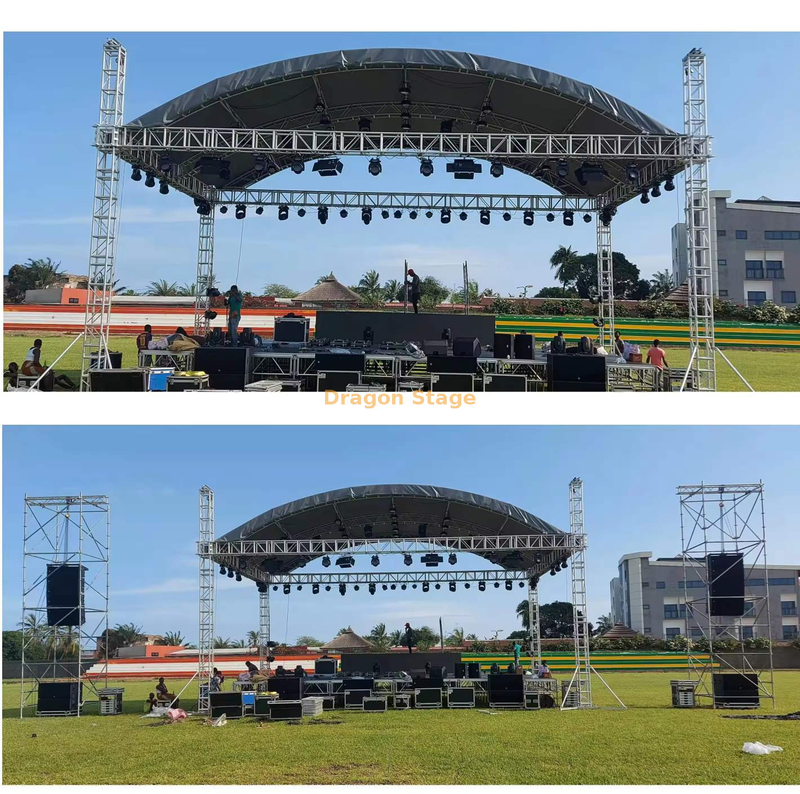

This is a custom-sized 16m wide, 12m deep, and 8m high Curved Roofing Stage Truss System

Price: ￥ 115994

packing weight: 2400kg

packing volume: 20cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
16.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	15 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	3 pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	pcs
8.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	8 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	4 pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.60 m	50×3.0	CS389×389	3 pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	4 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	pcs
18.00 m Arch Beam	3 sets	3.00 m	50×3.0	CS389×389	18 pcs
		2.00 m	50×3.0	CS389×389	pcs
		.00 m	50×3.0	CS389×389	6 pcs
12.00 m Ladder truss	7 sets	3.00 m	50×3.0	CL40,389*50	28 pcs
		2.00 m	50×3.0	CL40,389*50	pcs
		1.00 m	50×3.0	CL40,389*50	pcs
Roof Components		spigot multi cube, use for roof beam truss		CS389×389	3 pcs
		Connect plate with clamp			3 pcs
		Single clamp			112 pcs
		Double clamp			12 pcs
		roof canopy material:pvc, Blue Colour or customized.		365.6	1 pcs
