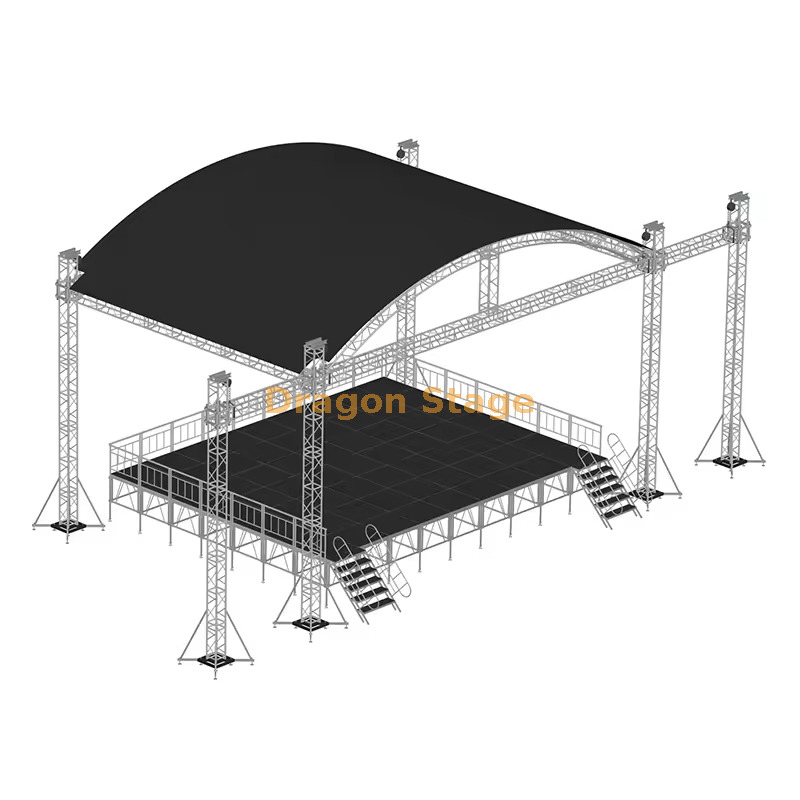

13x9x7m Professional Aluminum Arc Roof Stage Truss System

5 0 Reviews

Professional 13m x 9m Aluminum Arc Roof Stage Truss System - 7m High Heavy-Duty Concert Rig with Dual 2m PA Speaker Wings and Ground Support Structure

Price: ￥ 87641


Availability:



Inquire

Brand:
Dragonstage

Product Description

Premier 13m x 9m aluminum arc roof stage truss system standing 7m high. Featuring a reinforced 4-pillar ground support design, dual 2m wide line-array speaker wings, and a high-tension curved canopy frame. Engineered for professional outdoor concerts, festivals, and large-scale corporate events requiring superior aesthetics and structural integrity.

13x9x7m Professional Aluminum Arc Roof Stage Truss System

packing weight:2050kg

packing volume:16cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
13.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	2 pcs
9.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.30 m	50×3.0	CS289×289	2 pcs
9.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
15.00 m Arch Beam	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		2.50 m	50×3.0	CS289×289	4 pcs
15.00 m Ladder truss	4 sets	3.00 m	50×3.0	CL40,389*50	7 pcs
		2.00 m	50×3.0	CL40,389*50	7 pcs
		2.50 m	50×3.0	CL40,389*50	7 pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	2 pcs
		Connect plate with clamp			2 pcs
		Single clamp			84 pcs
		Double clamp			8 pcs
		roof canopy material:pvc, Blue Colour or customized.		248.48	1 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	pcs
		2.00 m	50×3.0	CS389×389	2 pcs
		1.00 m	50×3.0	CS389×389	pcs
7.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
Wings Tower	Spigot Sleeve Block S				2 pcs
	Steel Base S				2 pcs
	Top Section S				2 pcs
	Manual hoist,BA05 2Tons				2 pcs
	Spigot Hinge Section,Height 1m				2 pcs
	Fibre sling,BA04,2 tons 3m				2 pcs
	Long outrigger				8 pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
