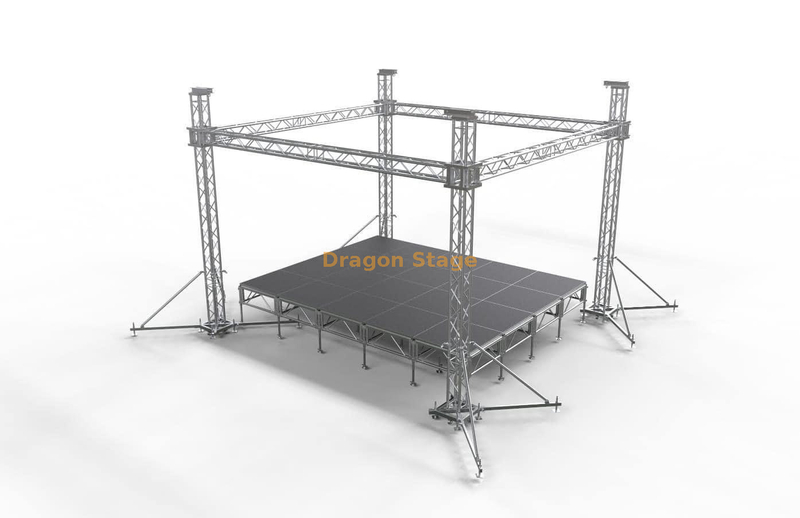

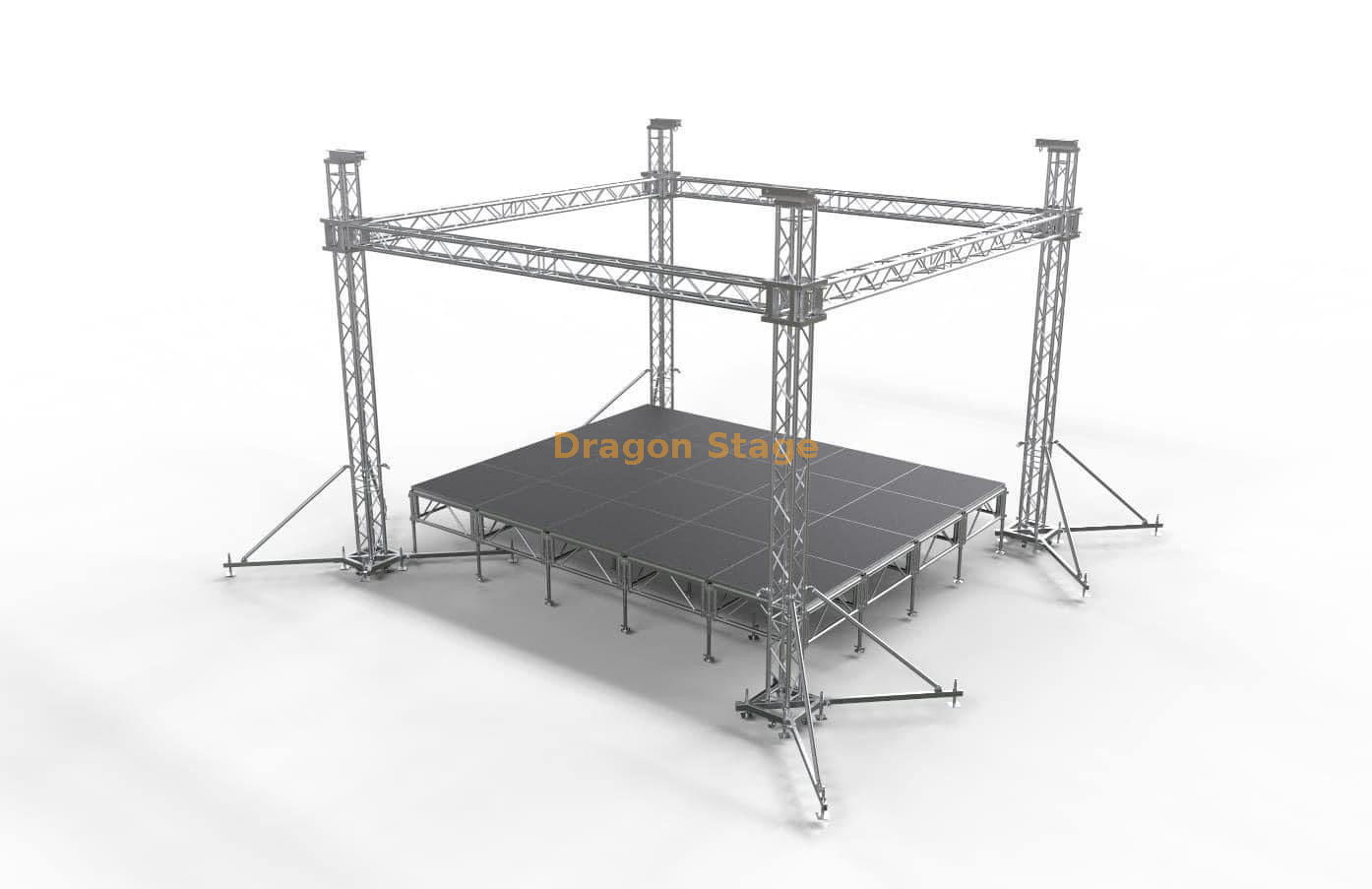

6x6x6m Structural Lighting Truss System (Square Grid)
1. Overview: Versatile and Economical Lighting Grid
The DragonStage 6x6x6m Structural Manufactured Lighting Truss System is an economical yet robust solution for creating a freestanding, cube-shaped lighting and display grid. With external dimensions of 6m (W) x 6m (D) x 6m (H), this standard square truss system provides a significant, stable structure suitable for a variety of small to medium-sized events, including:
Exhibition Booths and Trade Show Displays
DJ Booths and Small Stages
Indoor Lighting Rigs for clubs or venues
Advertising Banners and LED Screens
The system is characterized by its use of CS289x289 square truss and the fast, secure Spigot Connection method. It's offered in two distinct component plans for flexibility.
2. Core Specifications and Materials
This truss structure is built for strength, portability, and ease of deployment, making it a favorite for rental companies looking for a high return on investment.
| Specification | Detail |
| Model | CS-02 |
| External Dimensions | 6m (Width) x 6m (Depth) x 6m (Height) |
| Truss Type | Square Truss (CS289x289) |
| Main Tube Size | $\mathbf{50 \times 3.0 \text{mm}}$ |
| Connection Method | Spigot (Conical Coupler) |
| Construction Material | Aluminum Alloy |
| Average Weight | Approx. 800 - 830 kg (depending on plan) |
| Average Volume | Approx. 6.5 CBM |
3. Structural Components and Deployment
The 6x6x6m truss system is a comprehensive kit designed for full ground support, meaning it can be built without hanging from a venue's roof.
Essential Tower Components (Common to Both Plans)
All structural truss systems require a complete tower assembly for safe lifting and stability. Each 6x6m grid includes four complete tower systems:
Sleeve Blocks (Spigot): 4 pcs (Connects the horizontal beams to the vertical pillars, allowing the grid to be lifted).
Steel Base: 4 pcs (Provides the wide, stable footprint for each vertical tower).
Top Section: 4 pcs (The head section of the tower used for connecting hoists/lifting accessories).
Manual Hoists (2 Tons): 4 pcs (The primary lifting mechanism to raise the horizontal grid to the full 6m height).
Spigot Hinge Section (1m): 4 pcs (Allows the tower to be built on the ground and hinged upright).
Long Outriggers: 16 pcs (Extends the base support for maximum anti-tipping stability).
Lifting Slings: 4 pcs (For connecting the hoists to the top section).
4. Key Advantages
High Rigging Capacity: The 50x3mm main tube and 290x290mm square profile meet professional standards, supporting substantial weight for lighting, speakers, and LED walls.
Speed of Assembly: The Spigot/Conical Coupler connection system is renowned in the industry for rapid setup and dismantling, reducing labor time and cost.
Economical Design: Engineered to offer a structurally sound solution at a competitive price point, providing excellent value without compromising safety features like outriggers and 2-ton hoists.
5. Next Step
To ensure the 6x6x6m Lighting Truss System meets your specific load requirements and regional safety standards, inquire now for detailed load tables and a complete parts list for your preferred assembly plan.
