Rwanda Professional Live Sound System Package for Concerts and Events

This Rwanda Professional Live Sound System Package is a complete sound reinforcement solution designed for outdoor events, concerts, festivals, cultural performances and professional entertainment applications.

The system combines high-power main speakers, subwoofers, stage monitors, digital signal processing, professional amplifiers and wireless microphone equipment to provide a complete audio chain from signal processing to sound output.

Designed according to professional live event requirements, the system delivers high sound pressure level, extended frequency response, powerful low-frequency performance and reliable operation for large venues.

Complete System Configuration

Model	Type	Technical Specifications	Quantity	Unit
HT215	Dual 15-inch Performance Speaker	Components: LF: 2×15" 100mm voice coil ferrite woofer + HF: 1×3" 75mm compression driverPower: 900W continuous / 3600W peakFrequency Response: 40Hz-20kHzCrossover Frequency: 1400HzNominal Impedance: 4ΩSensitivity: 100dB (1W/1m)Maximum SPL: 128dB continuous / 134dB peakDispersion: 100° × 50°Enclosure Dimensions: Custom high-density cabinet design	4	pcs
SUB218	Dual 18-inch Subwoofer	Type: Dual 18-inch low-frequency speakerAppearance: BlackComponents: 18" × 2Nominal Impedance: 4ΩContinuous Power: 1400WProgram Power: 3400WFrequency Response: 45Hz-120Hz (±3dB)Sensitivity: 105dB (1W/1m)Maximum SPL: 136dBDispersion: 100°-70°Dimensions: 960mm × 560mm × 780mm	2	pcs
HP12	12-inch Professional Speaker	Type: 2-way full-range speakerFeatures: Adjustable multi-angle projection speakerComponents: 12" woofer + 1.75" horn driverNominal Impedance: 8ΩContinuous Power: 400WProgram Power: 800WFrequency Response: 35Hz-20kHzSensitivity: 102dB (1W/1m)Maximum SPL: 126dBDispersion: Adjustable directional coverage	4	pcs
A08	8-channel Power Sequencer	Standard 19-inch rack designLED digital voltage display8 independent power switchesMaximum output per channel: 16ATotal maximum current: 32AFront panel direct output socketInternal adjustable delay time: 1.5 secondsInput Voltage: AC220V 50HzDimensions: 483×260×44mm	1	unit
DP480	4-in 8-out Digital Speaker Processor	FIR filter96kHz / 24-bit sampling rateHigh-performance 32-bit DSP processorInput: 4 channelsOutput: 8 channelsMaximum input gain: +20dBuMaximum output gain: +20dBuFunctions:- 15-band parametric equalizer- Compressor- Limiter- Crossover filter- FIR filter- High-pass filter- Low-pass filter	1	unit
HTS12	Audio Effect Processor	12-channel audio processorTwo-channel stereo inputEach channel with independent EQ adjustmentThree-band AUX input EQ24-bit DSP effects processorFour-way microphone output48V phantom power supplyIndependent 48V switchMP3 player with Bluetooth and recording function	1	unit
L600	Professional Power Amplifier	8Ω Stereo Output: 2×600W4Ω Stereo Output: 2×900W8Ω Bridge Output: 1450WFrequency Response: 20Hz-20kHz ±0.5%Conversion Speed: 30V/μsTHD: ≤0.05% (20Hz-20kHz)Damping Factor: ≥280S/N Ratio: ≥98dBInput Sensitivity: 1VrmsInput Impedance: 20kΩ balanced / 10kΩ unbalancedAmplifier Class: CLASS H	2	units
A213	Transformer Power Amplifier (3U)	8Ω Stereo Output: 2×1300W4Ω Stereo Output: 2×1800WFrequency Response: 20Hz-20kHz ±0.5%Conversion Speed: 30V/μsTHD: ≤0.05%Damping Factor: ≥280S/N Ratio: ≥102dBInput Sensitivity: 1VrmsInput Impedance: 20kΩ balanced / 10kΩ unbalancedInput: 2×XLR	2	units
A218	Transformer Power Amplifier (3U)	8Ω Stereo Output: 2×1800W4Ω Stereo Output: 2×2300WFrequency Response: 20Hz-20kHz ±0.5%Conversion Speed: 30V/μsTHD: ≤0.05%Damping Factor: ≥280S/N Ratio: ≥102dBInput Sensitivity: 1VrmsInput Impedance: 20kΩ balanced / 10kΩ unbalancedInput: 2×XLR	1	unit
U1920	True Diversity Wireless Microphone System	Receiver frequency: 500-980MHzInfrared frequency matching technologyDigital display transmitter battery statusS/N Ratio: >105dBTHD: <0.5%Frequency Response: 40Hz-18kHzAutomatic mute and noise reduction technology	1	set
-	Flight Case	16U shock-resistant rack case with front and rear doors	1	pcs
-	Flight Case	Double 15-inch speaker flight case	4	pcs
-	Flight Case	Double 18-inch speaker flight case	2	pcs
-	Flight Case	12-inch speaker flight case	2	pcs
-	Cable Accessories	15×4mm² cable + 6-channel cable management accessories	1	batch

Main System Performance

High Output Main PA System

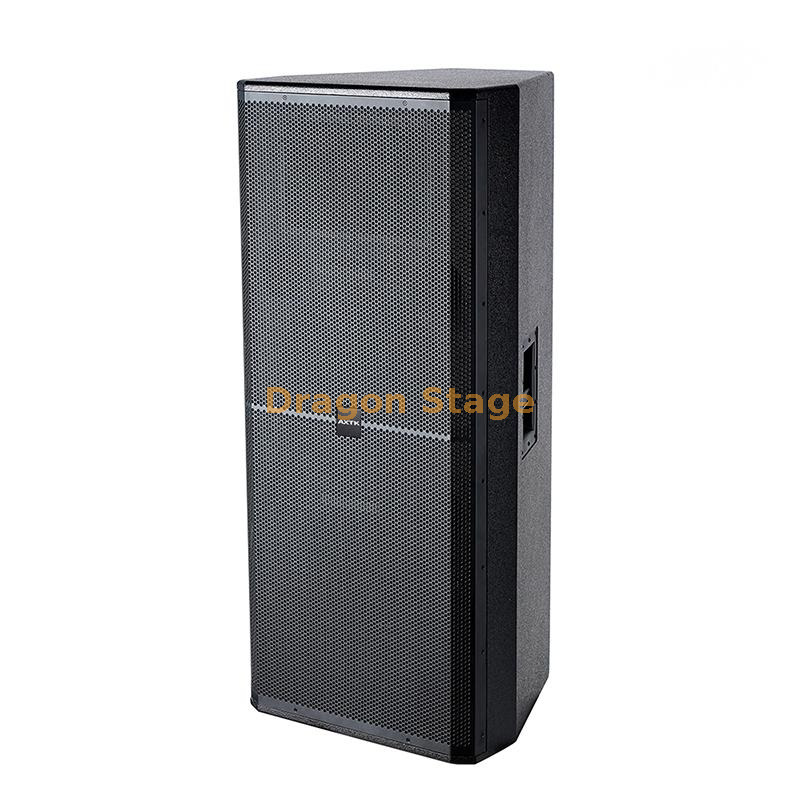

The system uses HT215 dual 15-inch professional performance speakers as the main sound reinforcement units.

Each speaker features:

• LF: 2 × 15-inch woofers

• HF: 1 × 3-inch compression driver

• Continuous power: 900W

• Peak power: 3600W

• Maximum SPL: up to 134dB

• Frequency response: 40Hz–20kHz

• Dispersion: 100° × 50°

Four HT215 speakers provide strong output capability for medium and large outdoor events.

Powerful Low Frequency Extension

The system includes two SUB218 dual 18-inch subwoofers for extended bass performance.

Features:

• Dual 18-inch woofer design

• Continuous power: 1400W

• Program power: 3400W

• Frequency response: 45Hz–120Hz

• Maximum SPL: 136dB

The subwoofer system enhances kick drum, bass instruments and low-frequency effects required for concerts and entertainment events.

Professional Stage Monitoring System

Four HP12 stage monitor speakers are included for performers and musicians.

Features:

• 12-inch professional speaker design

• 400W continuous power

• 800W program power

• 102dB sensitivity

• 35Hz–20kHz frequency response

The monitor system allows singers and musicians to clearly hear their own performance on stage.

Digital Signal Processing & System Control

The system uses the DP480 FIR Digital Speaker Processor for professional audio management.

The DSP provides:

• FIR filtering

• 32-bit DSP processing

• 4 input / 8 output configuration

• Parametric EQ

• Crossover adjustment

• Delay alignment

• Limiter protection

• Speaker optimization

The processor ensures accurate frequency management between main speakers, subwoofers and monitors.

Professional Amplification System

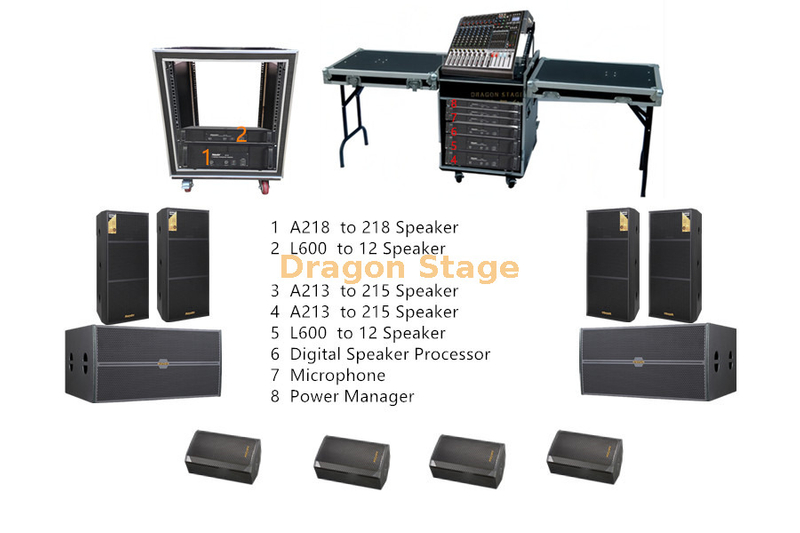

The package uses multiple professional amplifiers to separately drive different speaker sections.

Amplifier configuration:

• L600 for high-power speaker driving

• A213 for professional full-range output

• A218 for high-power low-frequency applications

This separated amplification structure improves system stability and allows precise control of each audio zone.

Complete Event Audio Solution

This Rwanda project package includes not only speakers and amplifiers but also:

• DSP tuning system

• Wireless microphone system

• Power sequencing equipment

• Flight cases

• Speaker transportation protection

• Complete cable accessories

It provides customers with a ready-to-deploy professional audio system without requiring separate equipment matching.

Applications

This professional sound system is suitable for:

• Outdoor concerts

• Music festivals

• Government events

• Cultural performances

• Stadium events

• Wedding performances

• Large churches

• Corporate events

• Rental companies

• Touring productions
