Professional Church Auditorium Sound System for 2000–2500 Seats

5 0 Reviews

The Professional Auditorium Sound System is designed for large indoor venues accommodating approximately 2,000–2,500 people.
The system combines high-performance line array loudspeakers, cardioid subwoofers, stage monitors, digital mixing consoles, network audio transmission, and power distribution equipment to provide excellent speech intelligibility and powerful music reproduction.
Suitable for churches, theaters, conference centers, convention halls, and multipurpose auditoriums, this solution supports live events, worship services, conferences, and broadcasting applications.

Price: ￥ 534500


Availability:



Inquire

Brand:
Dragon Stage

Product Description

Complete Audio Solution for Large Auditoriums

Dragon Stage provides complete sound reinforcement systems tailored for medium and large venues.

This system was developed for an indoor venue measuring approximately:

Length: 50 m
Width: 25 m
Height: 15 m
Capacity: 2,000–2,500 people

The solution integrates line array speakers, subwoofers, stage monitors, digital mixing systems, network audio transmission, and power management equipment to deliver consistent sound coverage throughout the venue.

No.	Product Name	Main Specifications	Qty

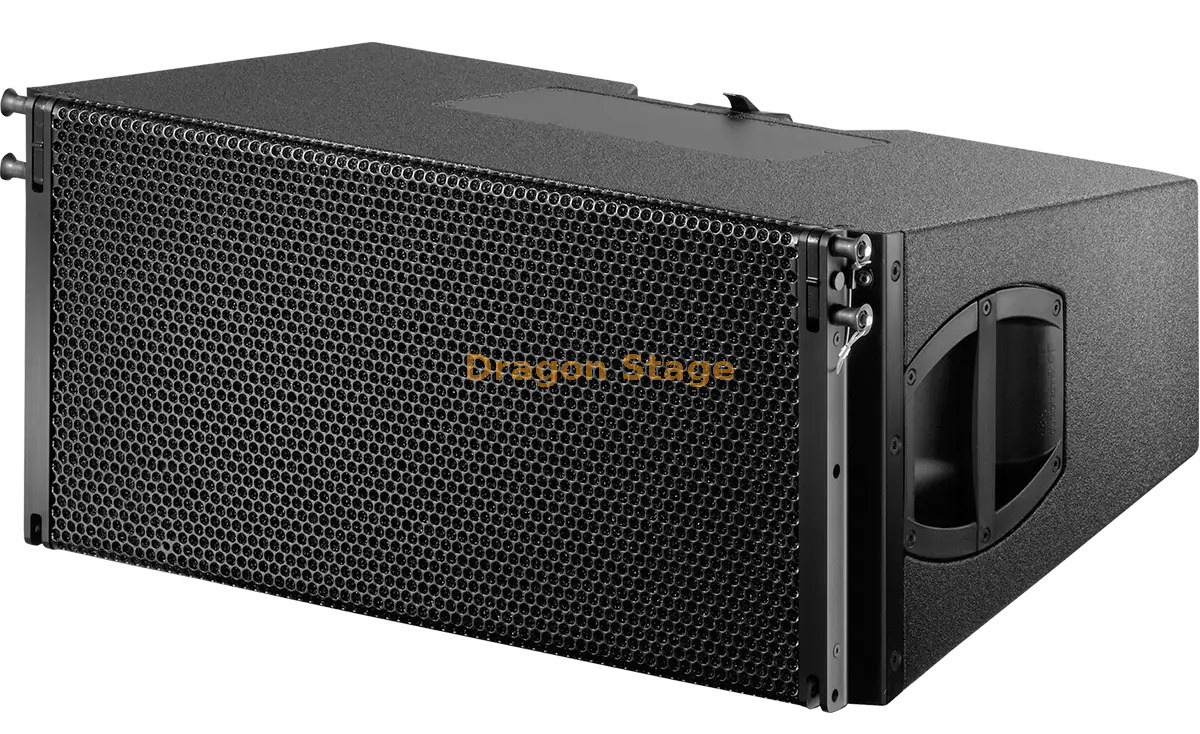

1	Line Array Full-Range Speaker	Large-format 3-way line array speaker; 2×12" LF + 1×10" MF + 2×1.4" HF drivers; Frequency Response: 48 Hz–17 kHz; Max SPL: 145 dB; Horizontal Coverage: 80°; Weight: 60 kg Configuration 3-Way Line Array LF Drivers 2 × 12" MF Driver 1 × 10" Horn Loaded HF Drivers 2 × 1.4" Compression Drivers Frequency Response 48 Hz – 17 kHz Maximum SPL 145 dB Horizontal Coverage 80° Vertical Splay 0°–7° Connectors NLT4 Dimensions 360 × 1100 × 570 mm Weight 60 kg	16 pcs

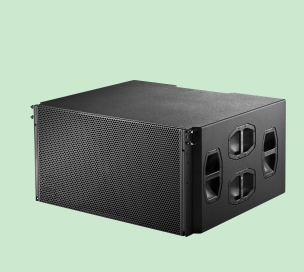

2	Cardioid Subwoofer	Triple 18" subwoofer; Cardioid configuration; Frequency Response: 32 Hz–100 Hz; Max SPL: 139 dB; Front-to-rear attenuation 15–20 dB; Weight: 106 kg Configuration Triple 18" Frequency Response 32 Hz – 100 Hz Maximum SPL 139 dB Radiation Pattern Cardioid Front-to-Rear Attenuation 15–20 dB Connectors NLT4 Dimensions 540 × 1100 × 945 mm Weight 106 kg	10 pcs
3	Stage Monitor Speaker	2-way passive monitor; 1×15" coaxial LF + 1×1.3" HF driver; Frequency Response: 55 Hz–17 kHz; Max SPL: 140 dB (active mode); Coverage Angle: 50° × 70°; Weight: 20 kg Configuration 2-Way Passive Monitor LF Driver 15" Coaxial HF Driver 1.3" Compression Driver Frequency Response 55 Hz – 17 kHz Maximum SPL 134 dB (Passive) / 140 dB (Active) Nominal Impedance 8 Ω Coverage Angle 50° × 70° Dimensions 363 × 580 × 505 mm Weight 20 kg	12 pcs
4	Power Amplifier	Professional multi-channel amplifier for line array and monitor systems	12 units
5	Speaker Flying Frame	Heavy-duty flying frame for line array suspension	2 sets
6	Front-of-House Digital Mixing Console	96 kHz processing; 64 input channels; 42 buses; dual touchscreen interface; network audio support Processing Rate 96 kHz Input Channels 64 Mix Buses 42 Display Dual Touch Screens Network Audio Supported	1 unit
7	Broadcast Mixing Console	Digital mixing console for recording, streaming, and broadcasting applications Application Broadcast and Streaming Processing Engine High-Speed Digital Core Input Channels 48 Mix Buses 36	1 unit
8	Digital Stage Interface	48 inputs and 16 outputs; digital audio transmission Inputs 48 Outputs 16 Connection Type Digital Audio Connection	1 unit
9	Network Audio Interface Card	64 × 64 audio channels; network audio expansion Audio Channels 64 × 64 Application Recording, Streaming and Broadcast	2 pcs
10	Conference Condenser Microphone	Frequency Response: 50 Hz–17 kHz; selectable pickup patterns; low-noise design; suitable for podium and conference applications Type Condenser Pickup Patterns Cardioid / Supercardioid / Omnidirectional Frequency Response 50 Hz – 17 kHz Application Conference, Podium, Speech Reinforcement	2 pcs
11	Power Distribution System	32A power distribution unit supplied with 16U rack cabinet Rated Current 32 A Rack Cabinet 16U Application Professional Audio Power Management	3 sets
12	XLR Audio Cable	Professional balanced audio cable, 20 m length Type Balanced XLR Cable Length 20 m Quantity 60 pcs	60 pcs

Applications

This sound system is suitable for:

Church sound systems
Auditorium sound systems
Theater audio systems
Conference halls
Convention centers
Universities
Performing arts centers
Government meeting halls
Indoor concert venues
Multipurpose event spaces

Customized Solutions Available

Dragon Stage can provide customized audio solutions based on:

Venue dimensions
Audience capacity
Acoustic requirements
Speech intelligibility targets
Music performance requirements
Budget considerations
Recording and broadcasting requirements

Complete packages including loudspeakers, amplifiers, mixing consoles, digital interfaces, microphones, power distribution systems, and installation accessories are available.
