packing weight: 1500kg
packing volume: 11cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 1pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.20 m | 50×3.0 | CS289×289 | 4pcs |
| 5.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 151.76 | 1pcs |
packing weight: 1500kg
packing volume: 10cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 24 pcs |
| 1.22m stage brace | 30 pcs |
| 2.44m stage brace | 28 pcs |
| stand with extendable tube | 35 pcs |
| Stage adjustable base | 35 pcs |
| Stage Stair | wooden topping | total | 6 | steps | 2 pcs |
Portable Custom Outdoor Stage Deck with Roof 10x8x7m: Certified Aluminum System
1. Introduction: The Foundation of Large-Scale Live Production

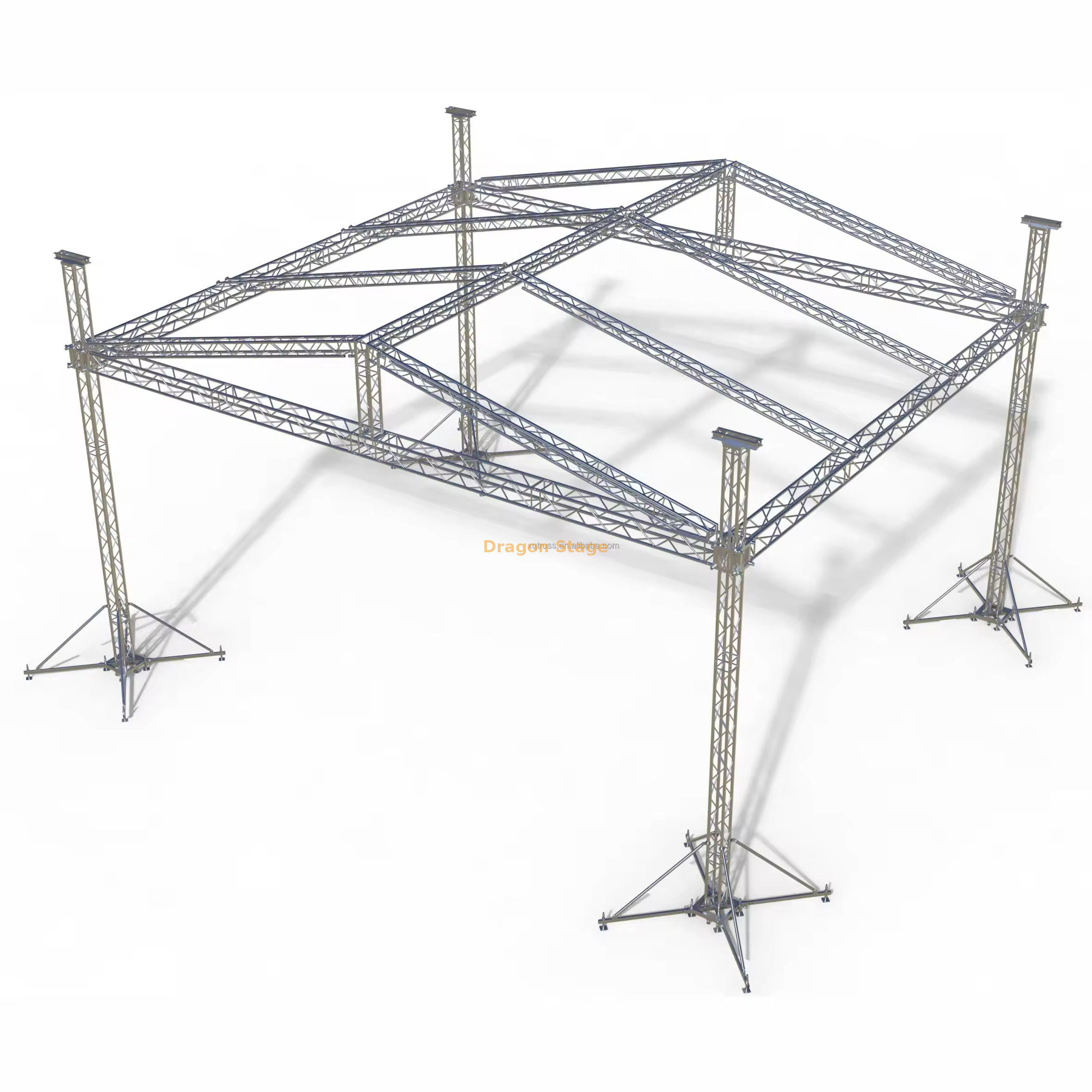

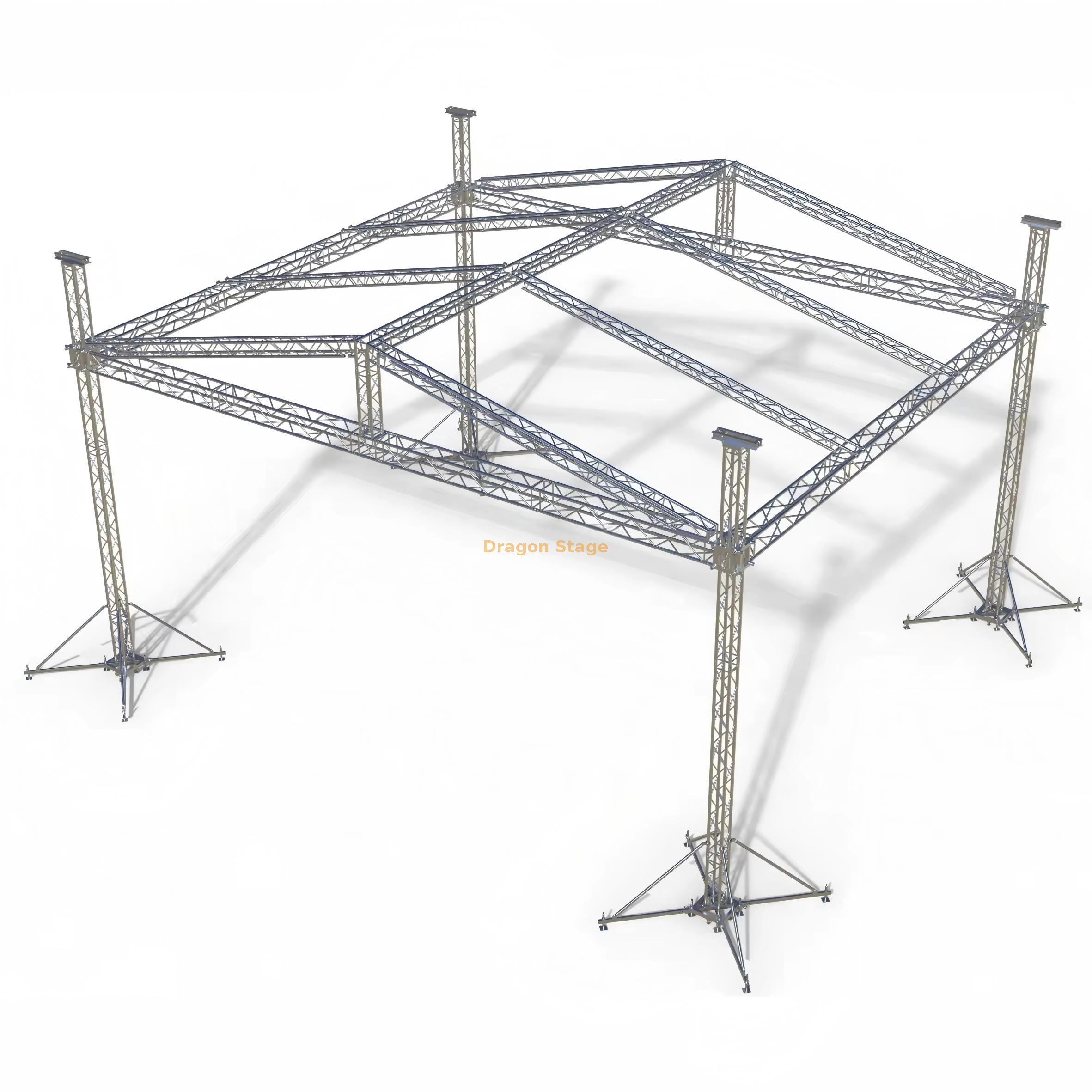

For leading event organizers and dedicated portable stage deck contractors, the demand for an outdoor venue solution that combines massive scale with guaranteed structural integrity is paramount. The DragonStage Portable Custom Outdoor Stage Deck with Roof meets this challenge head-on, offering a substantial 10m wide by 8m deep footprint, crowned by an imposing 7m high roof structure. This 10x8x7m truss system provides a commanding, weather-protected platform crucial for major music festivals, corporate roadshows, and large-scale public events.
Engineered with the robust CS289x289 square truss profile, this stage system is the definitive choice for professionals prioritizing rapid assembly, exceptional durability, and most critically, certified safety. It delivers the expansive, high-visibility performance space your production demands, protected from the elements by a custom-fitted roof, ensuring success regardless of the venue or weather conditions.
2. Challenges & Solutions in Modern Event Construction
Modern event construction faces the persistent challenges of extreme weather exposure, tight setup schedules, and increasingly stringent structural safety regulations. Stage structures must be durable enough for prolonged outdoor use yet lightweight enough for efficient transport and installation.
DragonStage’s integrated solution effectively neutralizes these pain points. By designing the entire system—from the adjustable stage deck to the 10x8m ground support roof truss—to work seamlessly together, we accelerate on-site deployment. The structure utilizes high-strength aluminum, ensuring corrosion resistance for outdoor longevity while maintaining a relatively low transport profile (Packing Weight: 1500kg; Packing Volume: 11CBM). Furthermore, the core focus on spigot connection truss for the frame ensures fast, secure assembly, drastically cutting labor time, a critical factor for profitability (Source:https://www.dragontruss.com/Lighting-Truss-FAQ16138.html).
3. Key Features & Benefits
The 10x8x7m stage and truss system is a testament to technical excellence, designed to provide unparalleled performance and security for professional event production.
Robust Ground Support and Structure
The system is built on a heavy-duty, four-tower ground support configuration, utilizing 4 sets of durable CS289x289 truss pillars for vertical lift. This system includes essential stabilization components: 4 Spigot Sleeve Blocks (S), 4 Steel Bases (S), and 16 Long Outriggers. The outriggers are vital for creating a wide, stable footprint, maximizing structural resistance against lateral forces, especially crucial for outdoor event truss with high wind load rating capability. Lifting is managed by 4 sets of 2-Ton Manual Hoists (BA05), allowing precise, controlled raising of the roof grid.
Integrated Stage Deck and Flexible Height

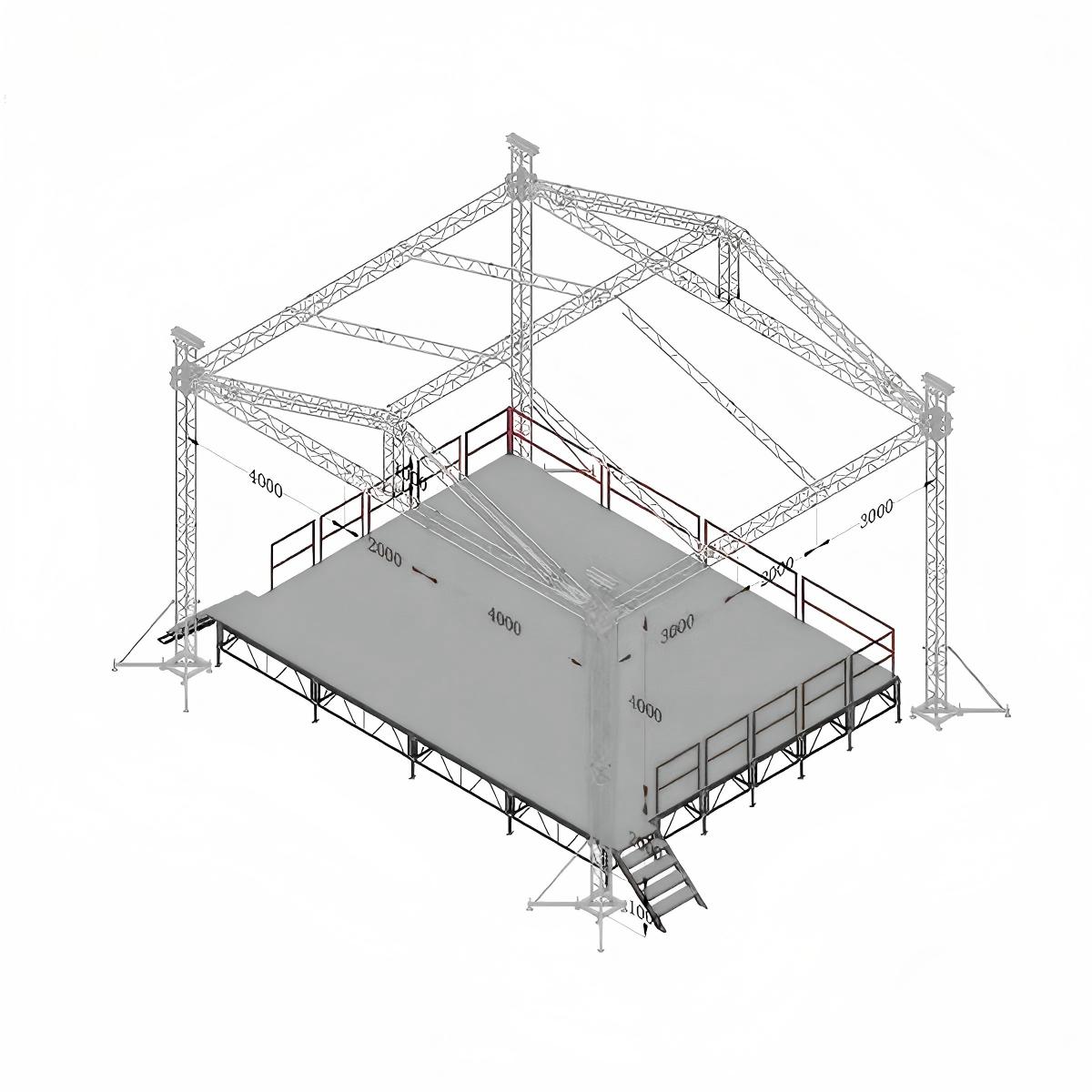

The platform features a spacious 9x7m stage deck constructed from modular 1.22x2.44m (4x8ft) aluminum podiums. This modularity allows for customization beyond the standard rectangular footprint. Furthermore, the stage height is adjustable from 1.00m to 1.40m, a key feature that provides essential versatility for maintaining visibility in varied topography and audience arrangements. The combination of the durable stage deck with the high-strength truss means the system is a certified solution for heavy-duty portable outdoor staging.
Engineered Protection for Production
The structural safety of the roof is supported by an array of heavy-duty beams and oblique truss sections, which ensures high load capacity for rigging lighting, sound, and visual elements. The presence of the roof truss 10x8x7m offers essential weather protection. The design incorporates two roof corner 4-way connectors for the main beam, ensuring the integrity of the crucial transition points between the horizontal and vertical structures (Source:https://en.wikipedia.org/wiki/Truss). This structural commitment to reliable protection is a non-negotiable standard for live production equipment (Source:https://www.prolight-sound.com).
4. Practical FAQ for Stage Professionals
Q: Is the 7m height adjustable for smaller venues?A: The roof structure itself is supported by fixed-length 6.0m truss sections, but the overall height is maximized to ensure clearance for most production lighting and sound rigs.
Q: Can PA wings be integrated into this 10x8m system?A: Yes. The modular design readily accommodates PA wing extensions or separate PA Tower Truss Systems to be seamlessly attached for optimized line array placement.
Q: What aluminum alloy is used for the truss?A: DragonStage utilizes high-strength aluminum alloy (typically 6061-T6, though specification confirmation is advised) to ensure maximum structural integrity and corrosion resistance.
Q: How is the structure anchored for outdoor events?A: Stability relies on the 16 Long Outriggers and a rigorously calculated ballast plan, which must be implemented according to site-specific wind and load requirements.
5. Strong Call to Action (CTA)
Don't compromise the safety and scale of your next major outdoor event. Choose the certified strength and proven efficiency of the DragonStage Portable Custom Outdoor Stage Deck with Roof 10x8x7m.
Contact DragonStage’s engineering team for load tables and a custom consultation to secure your reliable, professional stage solution.
