stage truss system
packing weight: 1550kg
packing volume: 12cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 8.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 3pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigotcube 289x289 | 2pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
staging system
packing weight: 970kg
packing volume: 6.5cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping:1x2m | wooden | 15 pcs |
| 1m stage brace | 20 pcs |
| 2m stage brace | 18 pcs |
| stand with extendable tube | 24 pcs |
| Stage adjustable base | 24 pcs |
| Stage Stair | wooden topping | total | 5 | steps | 2 pcs |
| Stair handrail | length | 2.391 | meters | 4 pcs |

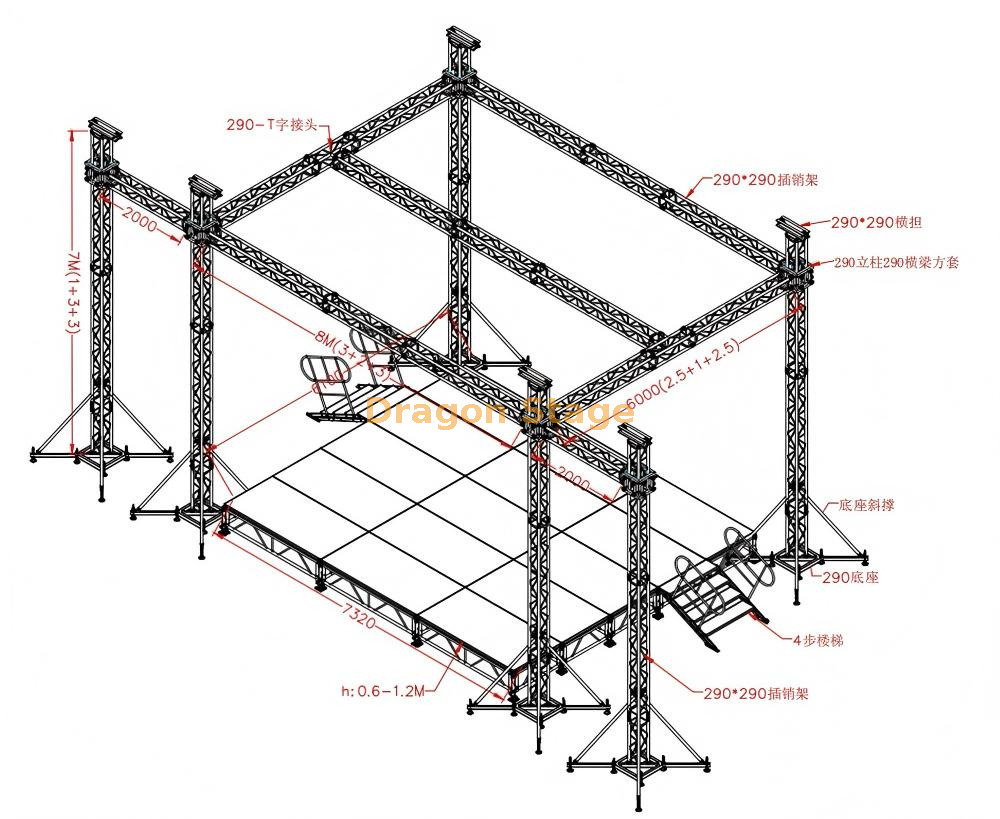

Event Party Aluminum Alloy Stage Truss (8x6x7m) with 2 Speaker Wings
The Dragon Stage Aluminum Alloy Stage Truss System is a comprehensive, heavy-duty structural solution designed for professional outdoor events, concerts, and parties. This integrated setup provides a massive 8x6x7m framework, complete with dedicated speaker wings for line array integration and a height-adjustable stage platform. Engineered for durability and rapid assembly, the system offers a professional-grade environment for performance and sound reinforcement.
Key Features
High-Strength Aluminum Construction: Built from premium aluminum alloy with 50x3.0mm main tubes, providing an optimal balance of lightweight handling and high load-bearing capacity.
Integrated Speaker Wings: Features two dedicated side wings designed to safely suspend line array speakers or PA systems, ensuring optimal sound dispersion and a clean stage aesthetic.
Adjustable Stage Platform: Includes a 6x5m modular platform with a height range of 0.8m to 1.2m, allowing for level setup on uneven terrain.
Enhanced Safety & Acess: Equipped with two sets of stairs featuring integrated safety rails for secure performer and technician access.
Modular Square Truss Design: Utilizes a CS289x289mm square truss configuration for maximum structural rigidity and versatile mounting of lighting fixtures and banners.
Technical Specifications
Dimensions: 8.0m (Length) x 6.0m (Width) x 7.0m (Height)
Platform Size: 6.0m x 5.0m
Platform Height Range: 0.8m - 1.2m
Main Tube Specification: 50mm x 3.0mm
Truss Type: CS289 x 289 Square Truss
Total Packing Weight: 1550kg
Total Packing Volume: 12cbm
Accessories included: 2 Speaker Wings, 2 Stairs with Rails
