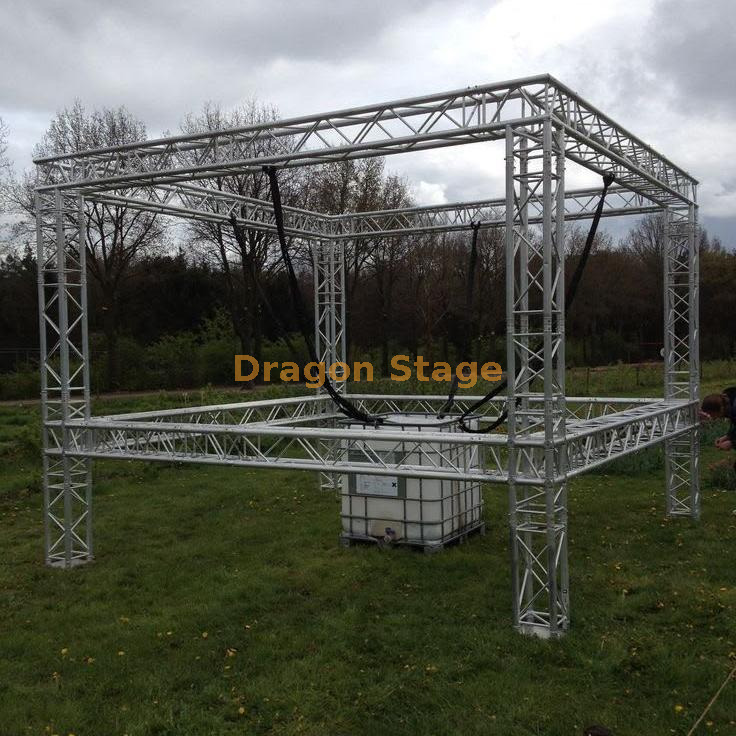

Custom Outdoor Aluminum Truss Structure for Temporary Applications
The Outdoor Aluminum Truss Structure is a modular lightweight structural system designed for temporary installations, event applications, equipment support, and customized architectural projects.
Unlike standard lighting stands or simple truss towers, this structure uses multiple aluminum truss sections connected together to create a three-dimensional supporting frame.
The modular design allows the structure to be customized according to project requirements, including:
This type of aluminum truss framework is widely used when customers require a strong but lightweight temporary structure that can be assembled, dismantled, transported, and reused.
For a better understanding of modular truss engineering, please refer to our Truss System Knowledge Center.
item list:
8p 2m 290mm spigot truss
12p 1m 290mm spigot truss
4p 1.4m 290mm spigot truss
4p 0.5m290mm spigot truss
8p 0.35m 290mm spigot truss
4p cube 290mm spigot truss
4p 3-way conner
4p 300mm base palte
Modular Aluminum Truss Framework Design
The structure consists of:
Vertical aluminum truss towers
Horizontal connecting trusses
Upper structural beams
Lower stabilizing frame
Modular connection components
By connecting individual truss sections together, the system creates a rigid three-dimensional frame with improved stability compared with a single-span truss.
The modular construction principle allows engineers to develop different layouts for:
Event structures
Exhibition installations
Temporary equipment supports
Special performance environments
Custom architectural applications
Lightweight Aluminum Construction
The main advantage of aluminum truss structures is achieving high structural efficiency with reduced weight.
Compared with conventional steel structures, aluminum truss provides:
Dragon Stage uses professional aluminum alloy materials and manufacturing processes to produce reliable temporary structural systems.
More information about aluminum structural materials can be found in:
6061-T6 vs 6082-T6 Aluminum: Standards, Mechanical Requirements and Structural Compliance
Flexible Applications
Because this structure is highly customizable, it can be adapted for many different applications.
Event and Entertainment Applications
Possible uses include:
Related event applications can be found in:
Concert Event Stage Applications
Exhibition and Display Structures
The modular aluminum frame can also be used for:
Exhibition structures
Product displays
Temporary installations
Promotional structures
See more:
Exhibition Trade Show Applications
Custom Engineering Projects
Some projects require unique structural solutions rather than standard products.
Dragon Stage provides customized engineering services including:
Concept development
CAD drawings
Structural configuration
Component selection
Manufacturing
Learn more:
Custom Stage Production
Engineering Considerations
Although aluminum truss structures appear simple, professional design should consider:
Applied loads
Wind conditions
Connection strength
Structural stability
Installation sequence
Ground conditions
Temporary structures must be designed as complete systems rather than individual components.
For more information about structural thinking, visit:
Dragon Stage Engineering Principles for Temporary Event Structures
Why Choose Dragon Stage Aluminum Truss Structures?
Modular Design
Components can be reused and reconfigured for different projects.
Lightweight Transportation
Aluminum construction reduces shipping and installation costs.
Custom Manufacturing
Dimensions, configurations, and accessories can be adjusted according to project requirements.
Professional Engineering Support
Dragon Stage provides solutions from simple truss structures to complete temporary event systems.
FAQ
What is an aluminum truss structure?
An aluminum truss structure is a lightweight modular framework made from connected aluminum truss sections to provide temporary structural support.
What applications can aluminum truss structures be used for?
They can be used for events, exhibitions, equipment support, temporary installations, and customized structural projects.
Can the size and design be customized?
Yes. The height, width, length, truss size, and connection method can be customized according to project requirements.
Why use aluminum instead of steel?
Aluminum provides a better strength-to-weight ratio, easier handling, corrosion resistance, and better suitability for temporary structures.
Does Dragon Stage provide engineering drawings?
Yes. Customized projects can be supported with engineering drawings and production documentation.
Conclusion
The Custom Outdoor Aluminum Truss Structure provides a flexible solution for projects requiring lightweight, reusable, and professionally engineered temporary frameworks.
By combining modular aluminum truss components with customized design support, Dragon Stage helps customers create reliable structural solutions for events, exhibitions, equipment support, and special applications.
