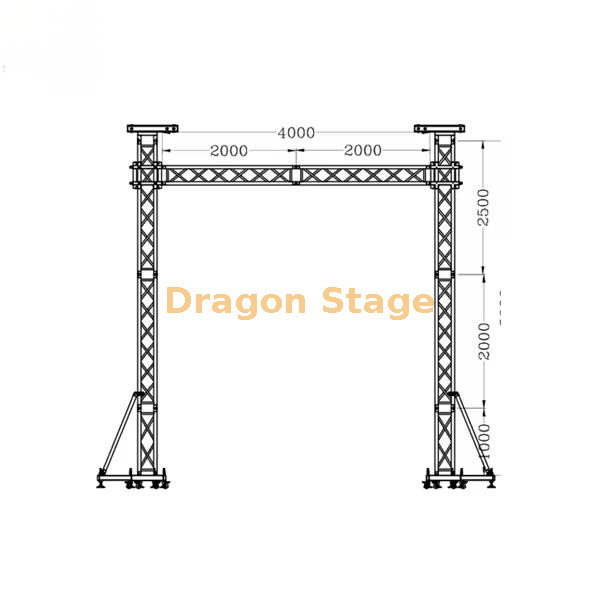

This Professional Aluminum LED Screen Support Truss is a specialized structural solution designed to meet the rigorous demands of modern digital displays and stage rigging. Standing at a versatile 4.5-meter height, this system offers a robust and sleek frame that ensures your LED video wall remains perfectly aligned and safe throughout your event.
this product can be wildly used at the event and outdoor Event especially for the lighting and led display. Due to this structure only four metres span. And only four point five meter high, so we don't need Large truss to install we only used 290 millimeter spigot truss to install.
packing weight:250kg
packing volume:2cbm
| Item | Specification(squre truss) | Qty | |||||
| length(M) | main tube(MM) | size(MM) | |||||
| Beam | 3 | 50×3.0 | CS289×289 | pcs | |||
| 2 | 50×3.0 | CS289×289 | 2 pcs | ||||
| 1 | 50×3.0 | CS289×289 | pcs | ||||
| 0.5 | 50×3.0 | CS289×289 | pcs | ||||
| Pillar | 3 | 50×3.0 | CS289×289 | 2 pcs | |||
| 2 | 50×3.0 | CS289×289 | pcs | ||||
| 1 | 50×3.0 | CS289×289 | 2 pcs | ||||
| 0.5 | 50×3.0 | CS289×289 | 2 pcs | ||||
| Tower | Spigot Sleeve Block S | 2 pcs | |||||
| Steel Base S | 2 pcs | ||||||
| Top Section S | 2 pcs | ||||||
| Manual hoist,BA05 2Tons | 2 pcs | ||||||
| Spigot Hinge Section,Height 1m | 2 pcs | ||||||
| Fibre sling,BA04,2 tons 3m | 2 pcs | ||||||
| Long outrigger | 8 pcs | ||||||
| Truss Accessory | Conical coupler & Safrty clip & pin | whole set | |||||
