packing weight: 2100kg
packing volume: 22cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 14.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs |
| 2.00 m | 50×3.0 | BS400×400 | 2pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 14.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs |
| 2.00 m | 50×3.0 | BS400×400 | 2pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 4pcs |
| beam cube | cube 400x400 | 0pcs |
| Frame Tower | Bolt Truss Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.40 m | 50×3.0 | BS300×300 | 2pcs |
| 14.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 1pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| 7.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 8pcs |
| .20 m | 50×3.0 | BS300×300 | 4pcs |
| 7.20 m Ladder truss | 12 sets | 3.00 m | 50×3.0 | BL30,300*50 | 12pcs |
| 2.00 m | 50×3.0 | BL30,300*50 | 24pcs |
| .20 m | 50×3.0 | BL30,300*50 | 12pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | BS300×300 | 2pcs |
| roof conner 5 ways, use for roof beam truss | BS300×300 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 24pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 308.56 | 1pcs |

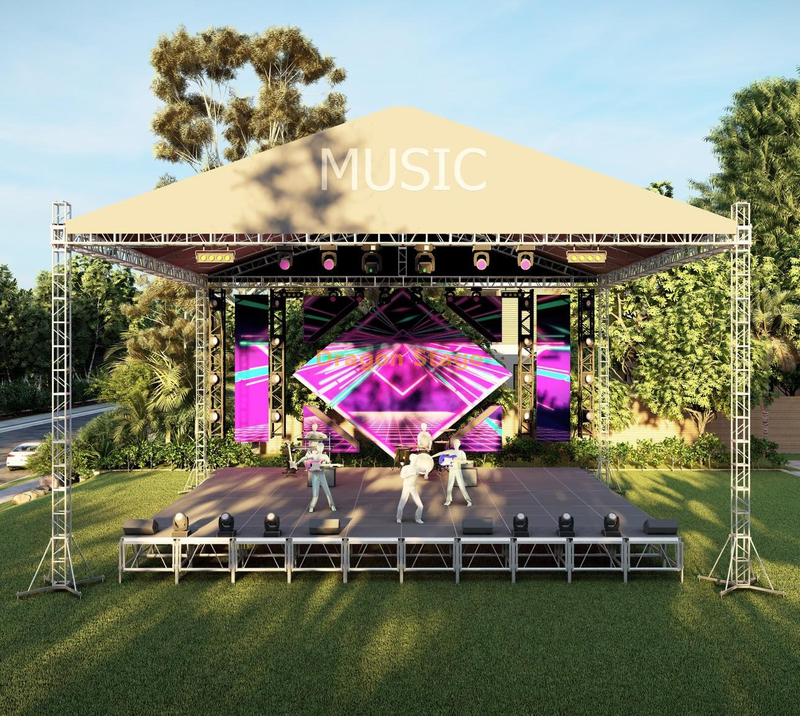

Large Outdoor Stage Truss Roof: 14m x 14m x 8m (46ft x 46ft) for Major Events
Introduction: The Ultimate Structure for Festivals and Large-Scale Productions
The Dragon Stage 14m x 14m x 8m Large Outdoor Stage Truss Roof is an imposing, high-capacity structure built for the demands of major festivals, large concerts, and high-profile outdoor events. With an expansive 14m clear span and a towering 8m operating height, this system provides maximum stage visibility and vast loading capacity for sound, lighting, and video walls.
Key Features & Structural Integrity
Heavy-Duty Components for Maximum Span
Designed to bridge a massive 14m span, this roof system utilizes premium, heavy-duty aluminum truss:
Main Beams and Pillars: Constructed with robust BS400x400 square truss (400mm x 400mm profile), ensuring superior strength and deflection performance under load.
Roof Grid: A lighter, yet sturdy, BS300x300 truss profile is strategically used for the pitched roof sections, optimizing weight while maintaining structural integrity.
Connection System: Features a reliable bolt connection for the main structural components, a preferred method for fixed, heavy-load, and long-span truss systems.
Professional Lifting and Stabilization

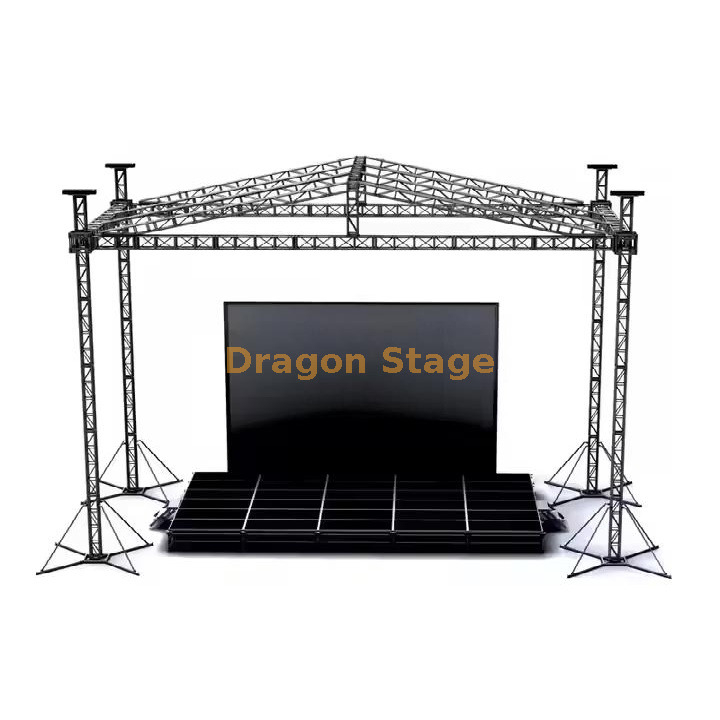

The structure is a Four-Tower Ground Support System, providing exceptional stability and a controlled assembly process.
Lifting: Includes 4 sets of Manual Hoists (BA05, 2 Tons), offering the precise mechanical advantage needed to safely raise the heavy roof grid to its 8m height.
Base Stability: The system is secured using 4 x Steel Bases and reinforced by 16 Long Outriggers to create an extensive and secure footprint, essential for resisting lateral loads like wind.
Extensive Weather Protection
The large roof structure is covered by an extensive 308.56 sq m PVC/Canvas roof canopy. The pitched roof design is engineered to manage heavy rainfall efficiently, preventing water pooling and protecting performers and expensive technical equipment beneath the vast 14m x 14m area.
Technical Specifications Overview
| Dimension | Measurement | Metric Equivalent | Notes |
| Total Stage Size | 14m x 14m x 8m | 46ft x 46ft x 26ft | Largest standard size |
| Pillar/Beam Truss | BS400×400 Square Truss | 400mm x 400mm | High load-bearing capacity |
| Main Tube | 50mm x 3.0mm | 1.97in x 0.12in | High strength aluminum |
| Lifting Mechanism | BA05 Manual Hoist | 2 Tons Capacity (x4) | Included for roof assembly |
| Packing Weight | 2100 kg | 4,630 lbs | Total weight for freight |
| Roof Canopy Area | 308.56 sq m | 3,321 sq ft | PVC/Canvas material included |
Practical FAQ for Stage Professionals
Q: Why are two different truss profiles (BS400 and BS300) used?
A: The robust BS400x400 truss is used for the long-span horizontal main beams and the vertical pillars where the highest compressive and bending forces occur. The BS300x300 truss is lighter and sufficient for the angled roof sections, providing necessary support without adding excessive dead weight to the roof grid.
