TUV Certified Blot Truss Canopy for Stage/Event/Party 10x7x5m

5 0 Reviews

this is a standard TUV Certified Bolt Truss Canopy for Stage

it is can be used for Event, Party

its overall sizes are 10x7x5m (33x23x16ft)

Price: ￥ 47972


Availability:



Inquire

Brand:
Dragon Stage

Product Description

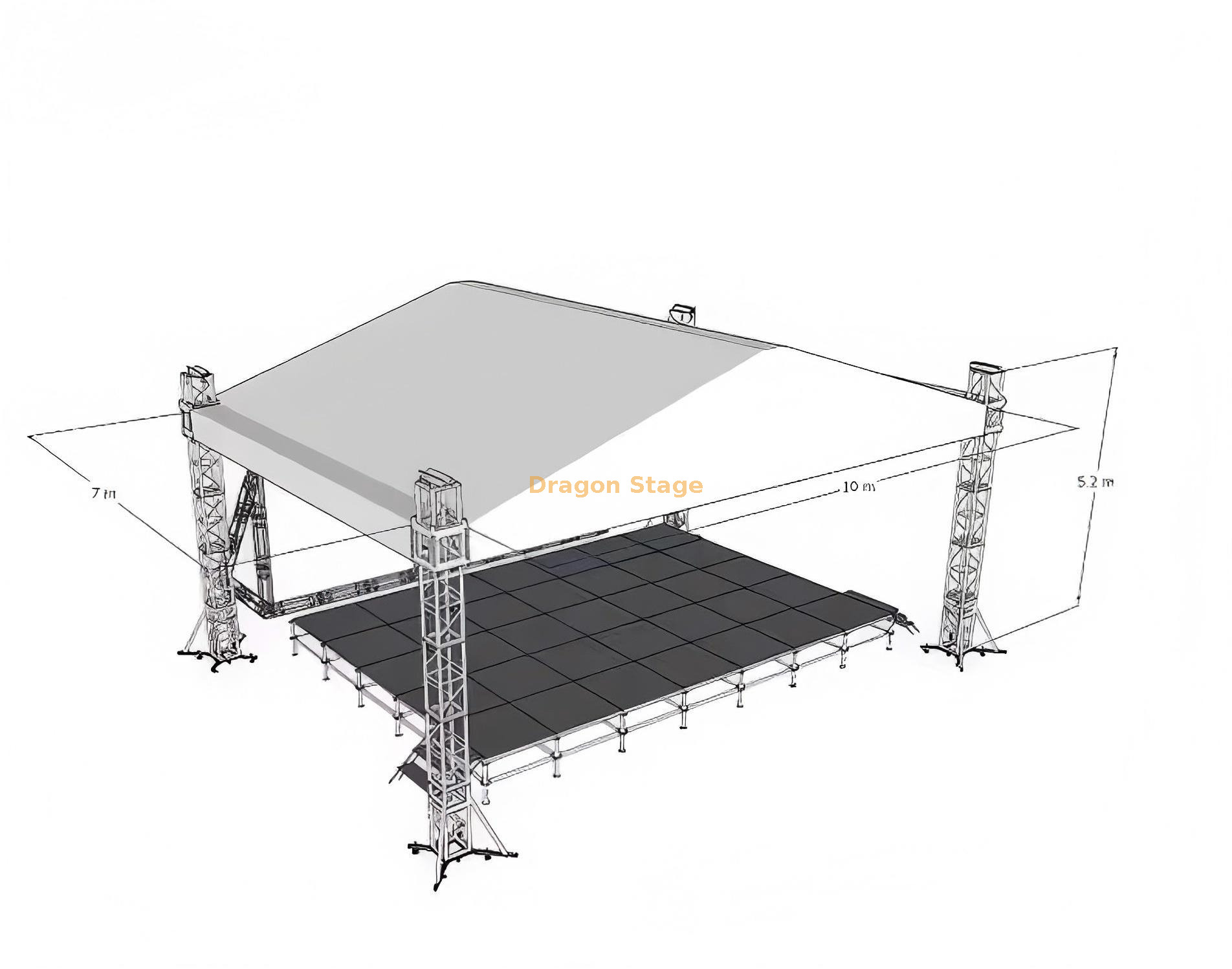

TUV Certified Truss Canopy for StageEventParty 10x7x5m

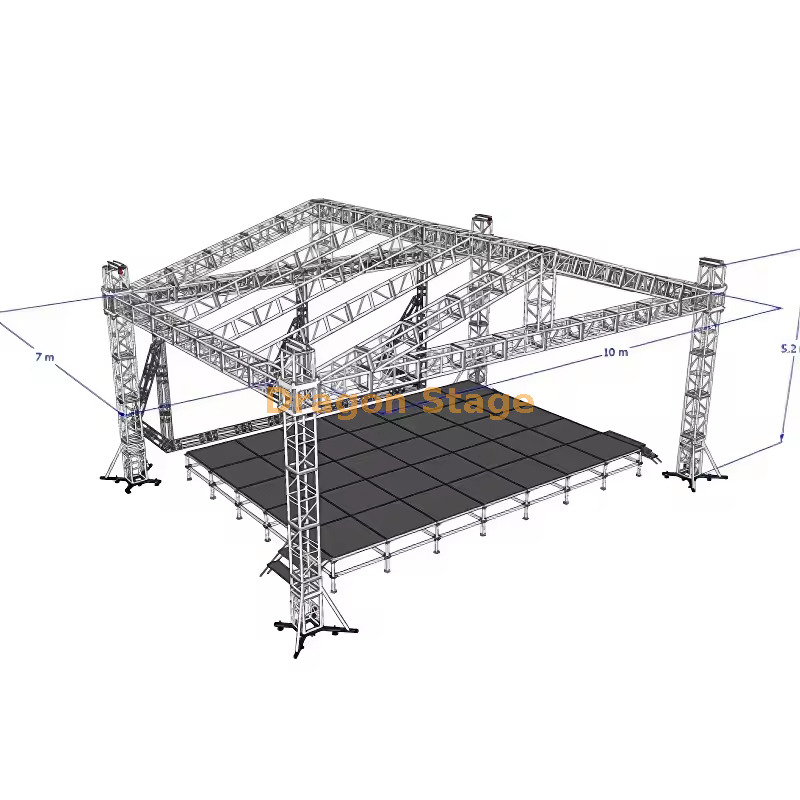

10x7m aluminum stage event truss with 5m height

packing weight: 1400kg

packing volume: 10cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	2 sets	3.00 m	50×3.0	BS300×300	6pcs
		2.00 m	50×3.0	BS300×300	0pcs
		1.00 m	50×3.0	BS300×300	2pcs
7.00 m Beam(side)	2 sets	3.00 m	50×3.0	BS300×300	4pcs
		2.00 m	50×3.0	BS300×300	0pcs
		1.00 m	50×3.0	BS300×300	2pcs
4.00 m Pillar	4 sets	3.00 m	50×3.0	BS300×300	4pcs
		2.00 m	50×3.0	BS300×300	0pcs
		1.00 m	50×3.0	BS300×300	4pcs
beam cube	cube 300x300				0pcs
Frame Tower	Bolt Truss Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.00 m	50×3.0	BS300×300	2pcs
7.00 m Top Beam	1 sets	3.00 m	50×3.0	BS300×300	2pcs
		2.00 m	50×3.0	BS300×300	0pcs
		1.00 m	50×3.0	BS300×300	1pcs
5.20 m Oblique Beam	4 sets	3.00 m	50×3.0	BS300×300	4pcs
		2.00 m	50×3.0	BS300×300	0pcs
		2.20 m	50×3.0	BS300×300	4pcs
5.20 m Ladder truss	6 sets	3.00 m	50×3.0	BL30,300*50	6pcs
		2.00 m	50×3.0	BL30,300*50	0pcs
		2.20 m	50×3.0	BL30,300*50	6pcs
Roof Components		roof conner 4 ways, use for roof beam truss		BS300×300	2pcs
		roof conner 5 ways, use for roof beam truss		BS300×300	0pcs
		Connect plate with clamp			2pcs
		Single clamp			12pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		138.96	1pcs

TUV Certified 10x7x5m Professional Aluminum Bolt Truss Canopy for Stage, Events, and Parties

1. Introduction

For wedding planners, corporate event organizers, and festival promoters, the structural integrity of a performance space is the foundation of attendee safety. The 10x7x5m TUV Certified Aluminum Bolt Truss Canopy by DragonStage is an elite venue solution providing 70 square meters of high-capacity covered area. Standing at a versatile 5-meter height, this system is optimized for mid-scale productions that demand a professional aesthetic and industrial-grade strength. Utilizing high-performance 6061-T8 aluminum and a traditional bolt-connection framework, this canopy delivers the rigidity required for heavy technical rigging while ensuring full compliance with international safety standards.

2. Challenges & Solutions

A recurring challenge with event canopies is structural deflection or "bowing" over a 10-meter span when loaded with lighting and decor. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which is solution heat-treated and cold-worked to provide superior hardness and tensile strength than standard alloys. Another common pain point for outdoor events is weather management; flat roofs can lead to dangerous water accumulation. Our 10x7m system features a high-tension pitched canopy design that facilitates immediate water runoff. For setups in parks or garden venues, the tower bases include adjustable leveling jacks to ensure the 5-meter pillars remain perfectly vertical on uneven grass.

3. Key Features & Benefits

The 10x7x5m system is manufactured from aerospace-grade 6061-T8 aluminum alloy. This specialized material ensures the structure remains a rigid, professional asset even under maximum loading conditions, resisting the structural fatigue common in high-frequency rental equipment (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).

The system is fully TUV Certified. According to international safety standards for temporary structures, TUV certification provides independent verification that the trussing meets strict load-bearing and welding quality requirements. The use of a bolt-connection system is ideal for semi-permanent events because it provides a fixed, multi-point union at each joint, ensuring the most stable structural environment possible (Source:https://www.tuv.com).

To provide a complete venue solution, this canopy is designed for seamless integration with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional grade of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).

4. FAQ Section

Q: What does TUV certification mean for my event insurance?A: TUV certification is a globally recognized mark of safety. It often helps in securing event permits and insurance by proving that the structure has been engineered and tested to meet rigorous safety standards.

Q: Why use 6061-T8 instead of standard aluminum?A: The T8 temper is harder and has a higher yield strength. This means your 10-meter span will sag less under heavy lighting loads, maintaining a cleaner, safer appearance.

Q: Is the PVC canopy fire-retardant and waterproof?A: Yes. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets international B1/M2 fire-retardant safety standards.

Q: How do we raise the 10x7m grid?A: The system utilizes a ground support tower design. You can use manual chain hoists or upgrade to synchronized electric motors for a safe and level 5-meter lift.

5. Strong Call to Action (CTA)

Secure your next production with a structure built for elite performance and certified safety. Contact DragonStage’s engineering team today for a custom quote on the TUV Certified 10x7x5m Bolt Truss Canopy. Download our technical specifications and start planning your most professional event season yet.
