Layher Sound Tower Set 6m High

5 0 Reviews

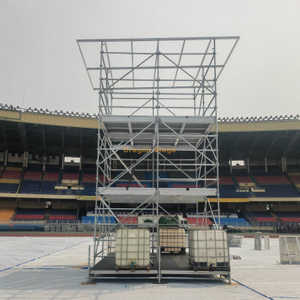

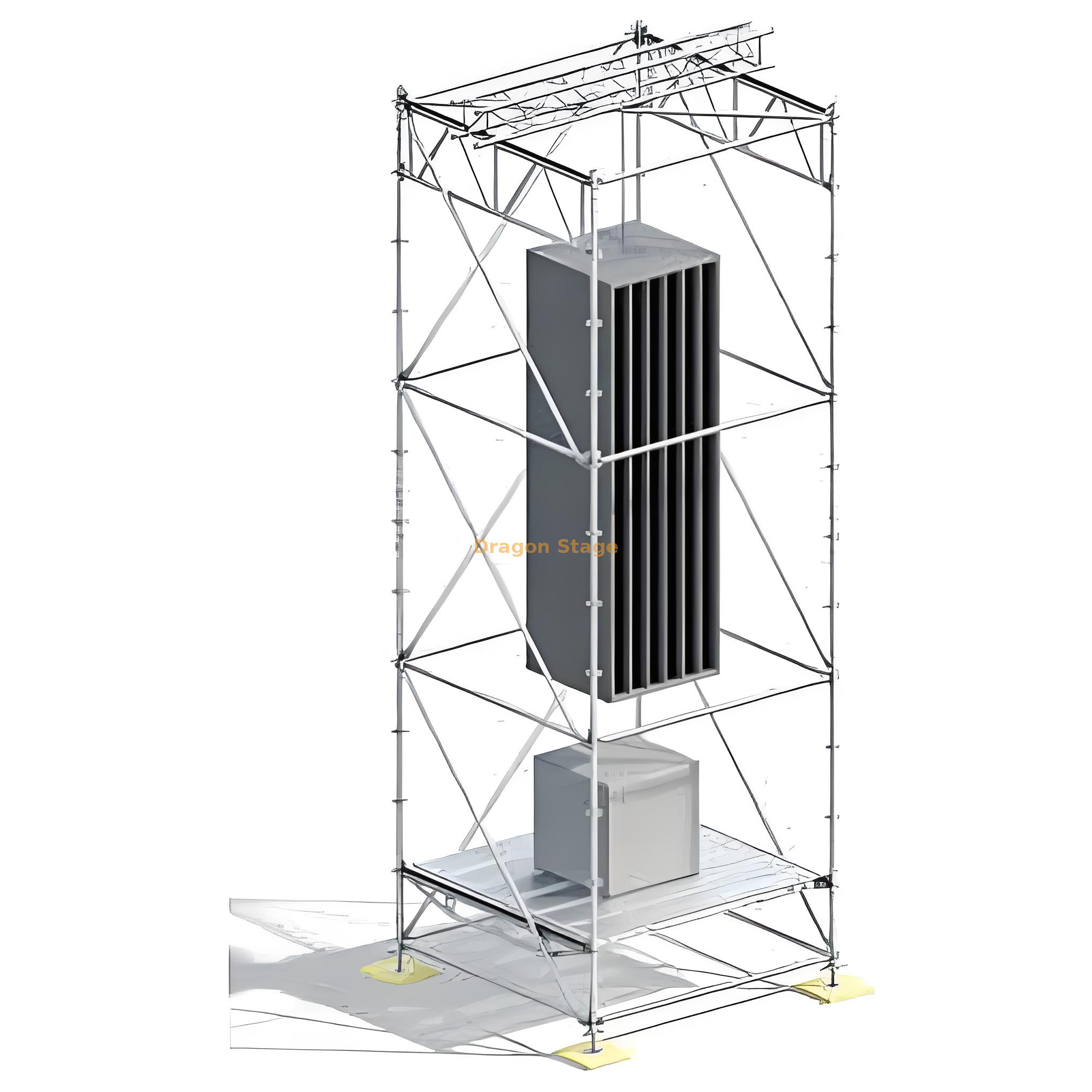

the layher tower high 6m, 2m deep and 2m wide.
on the top, there is 2 brace truss 0.5m high and 3m 400mm aluminum truss.
at the bottom, there is a watertank platform, it is made of 2 layher ledges and 6 pieces pallets 0.25m wide.
Price: 13101
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Dragon Stage

Layher Sound Tower Set 6m High

packing weight: 750kg

packing volume: 2cbm

Item Specification Quantity

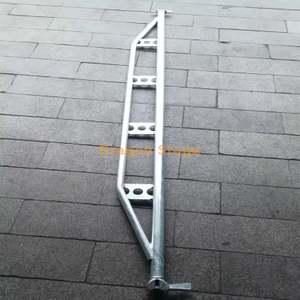

Layer truss Horizontal Pipe, LR2,L:2M 19 pcs
Diagonal Pipe, LR3,L:2.44M 15 pcs
Pillar,LR1, L:2m 12 pcs
adjustable base,LR4, H:0.25m 4 pcs
brace truss steel braces, L:2M,H:0.5M 4 pcs
suspending Layer truss Horizontal Pipe, LR2,L:2M 4 pcs
Diagonal Pipe, LR3,L:2.44M 8 pcs
Pillar,LR1, L:2m 2 pcs
Motor Chinese brand, Load:2000kg, Chain length:25m,  lifting  speed:3.2m/min,                                      220V-3phrase, output:750W,Ins.class:F,Body 1 pcs
flight case for motor 1pcs motor in one case 1 pcs
Fibre slings,T4 2m safety belt 1 pcs
Truss CS40, square truss 389*389*2500mm 1 pcs
Double clamp swivel double clamps 4 pcs
layher ledge 2m long for water tank 2 pcs
pallet with hooks 2m long 6 pcs
