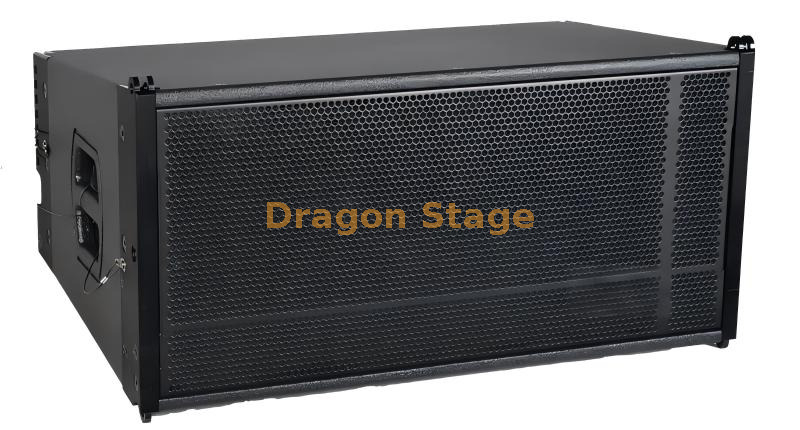

HL110 Single 10 Inch Passive Line Array Speaker
The HL110 Single 10 Inch Line Array Speaker is a compact and high-performance passive line array loudspeaker designed for professional sound reinforcement applications.
As part of the HL Line Array Speaker Series, the HL110 combines a high-output 10-inch low-frequency driver with dual 1.75-inch high-frequency compression drivers to provide balanced frequency response, strong vocal clarity and powerful sound projection.
The compact enclosure design makes it suitable for applications where space efficiency and sound coverage are both important, including small to medium-sized concerts, outdoor events, theaters, conference venues and fixed installation projects.
For complete professional audio solutions, explore our Stage Sound System and Line Array Speakers.
Product Features
Compact 2-Way Line Array Design
The HL110 adopts a 2-way full-range line array configuration consisting of:
1 × 10-inch low-frequency driver
2 × 1.75-inch high-frequency compression drivers
Horn-loaded high-frequency section
This design provides efficient sound projection with improved clarity across the vocal and high-frequency range.
With:
The HL110 delivers powerful output from a compact enclosure, making it suitable for professional event sound reinforcement.
Wide and Accurate Sound Coverage
The speaker provides a 100° × 10° dispersion angle, allowing sound engineers to achieve controlled horizontal coverage and vertical line array directivity.
This helps reduce unwanted reflections while improving audience coverage in professional venues.
Durable Professional Enclosure
The cabinet features:
Black polypropylene waterproof coating
Professional touring-style construction
Compact and durable design
The weather-resistant surface treatment improves reliability for mobile performances and outdoor applications.
Why Choose the HL110 Line Array Speaker?
Compact Size with Professional Output
The HL110 offers a practical balance between portability and performance. Its compact cabinet design reduces transportation and installation requirements while maintaining professional-level sound output.
Suitable for Small and Medium Event Applications
The HL110 can be used independently or combined with multiple units to create scalable line array systems for different venue sizes.
Typical applications include:
Flexible System Integration
The HL110 can work together with professional audio equipment such as:
to build complete sound reinforcement systems.
Technical Specifications
Specification | HL110 |
|---|
Product Type | 2-Way Full Range Line Array Speaker |
Model | HL110 |
Configuration | Passive |
Frequency Components | 10" Woofer + 2 × 1.75" Compression Drivers + Horn |
Impedance | 8Ω |
Continuous Power | 350W |
Program Power | 1400W |
Frequency Response | 65Hz-20KHz (±3dB) |
Sensitivity (1W/1M) | 105dB |
Maximum SPL | 117dB |
Dispersion Angle | 100° × 10° |
Cabinet Finish | Black Waterproof Polypropylene Coating |
Dimensions (H×W×D) | 275 × 635 × 410mm |
Net Weight | 28kg |
Applications
The HL110 Passive Line Array Speaker is ideal for:
Small and medium concerts
Mobile touring productions
Outdoor event sound systems
Theater performances
Conference and corporate events
Worship sound systems
Rental audio applications
Real-world installation examples can be found in our Sound Solution Cases.
FAQ
1. Is the HL110 an active or passive line array speaker?
The HL110 is a passive line array speaker and requires an external professional power amplifier.
2. Can the HL110 be combined with other line array speakers?
Yes. Multiple HL110 units can be combined vertically to create a larger line array system for higher output and longer coverage distances.
3. What type of amplifier is recommended for the HL110?
A professional amplifier matching the 8Ω impedance and 350W continuous power requirement is recommended. For larger systems, DSP processing and dedicated amplification are suggested.
4. What applications is the HL110 suitable for?
The HL110 is suitable for small to medium-scale concerts, outdoor events, theaters, rental systems and fixed sound installations.
5. Can the HL110 work with subwoofers?
Yes. Combining HL110 with professional subwoofers can extend low-frequency performance and create a complete full-range sound reinforcement system.
Short Answer Snippet
HL110 is a compact passive 10-inch line array speaker featuring a 2-way full-range design, 350W continuous power, 105dB sensitivity and 117dB maximum SPL. It is designed for professional stage sound reinforcement, touring events and fixed installations requiring high output in a compact enclosure.
