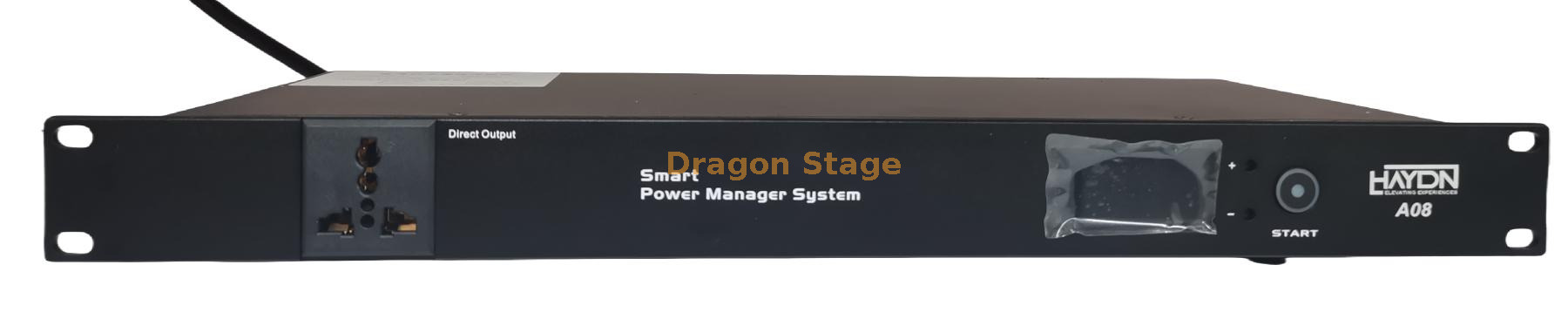

A08 8 Channel Professional Power Sequencer
The A08 Power Sequencer is a professional power management device designed to provide safe, organized and reliable power distribution for stage sound systems, professional audio racks and event equipment.
Featuring a standard 19-inch rack mount 1U design, the A08 integrates 8 independent power output channels, allowing multiple audio devices and related equipment to be powered on and off in sequence.
The built-in 220V LED high-precision voltage display allows users to monitor incoming power conditions in real time, helping protect connected equipment from unstable voltage conditions.
With a built-in 1.5-second sequential delay function, the A08 prevents sudden power surges caused by simultaneous startup of multiple devices. It is suitable for professional audio systems including amplifiers, processors, mixers and other rack-mounted equipment.
For complete professional audio solutions, visit our Stage Sound System.
Why Choose the A08 Power Sequencer?
Safe Sequential Power Control
The A08 controls connected equipment through sequential power activation.
This helps:
Reduce startup current impact
Protect audio equipment
Prevent speaker popping noise
Improve system reliability
It is especially useful for professional sound systems containing multiple amplifiers and processors.
Eight Independent Power Outputs
The A08 provides:
8 independent power switches
Universal socket outputs
Maximum 16A output per channel
Total input current up to 32A
Users can independently manage different equipment groups within the same rack system.
Real-Time Voltage Monitoring
The integrated LED voltage display provides accurate AC voltage monitoring, allowing operators to quickly identify abnormal power conditions before equipment damage occurs.
Professional Rack Installation
The standard 19-inch 1U rack design allows easy installation into:
Compatible equipment such as Power Amplifiers, PA Speakers and other audio devices can be integrated into complete sound reinforcement systems.
Expandable Power Management
The A08 supports unlimited cascading connections, allowing users to expand power management capacity for larger sound systems and complex event setups.
Typical Applications
The A08 Power Sequencer is suitable for:
Concert sound systems
Stage audio racks
Rental sound equipment
Conference systems
Churches
Hotels
Theaters
Exhibition audio systems
Commercial installations
Real project applications are available in our Sound Solution Cases.
Technical Specifications
Specification | A08 |
|---|
Product Type | 8 Channel Power Sequencer |
Rack Installation | Standard 19-inch / 1U |
Voltage Display | 220V LED High Precision Display |
Output Channels | 8 Independent Power Outputs |
Maximum Output Current per Channel | 16A |
Maximum Total Input Current | 32A |
Front Backup Output | 1 Channel Direct Power Output |
Backup Output Current | 7A |
Sequential Delay Time | 1.5 Seconds |
Input Voltage | AC220V 50Hz |
Expansion Capability | Unlimited Cascade Connection |
Dimensions | 483 × 260 × 44mm |
