F34 Stage Flat Roofing Truss System with Ground Support 10x8x6m

5 0 Reviews

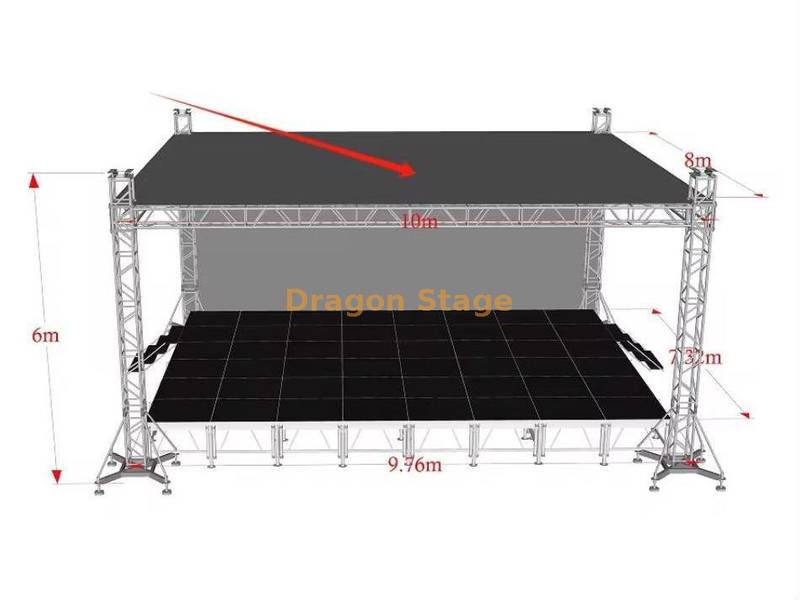

this is F34 Stage Flat Roofing Truss System with Ground Support, the total sizes are 10x8x6m

the price not including the roofing cover.

Price: ￥ 37180

flatroof stage truss

packing weight: 1038kg

packing volume: 8cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
8.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
ladder roof truss 8m	4 sets	3m	50×3.0	CS289×289	8pcs
		2m	50×3.0	CS289×289	4pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	Spigotcube 289x289				0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
