packing weight: 2200kg
packing volume: 14.5cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 35 pcs |
| 1.22m stage brace | 42 pcs |
| 2.44m stage brace | 40 pcs |
| stand with extendable tube | 48 pcs |
| Stage adjustable base | 48 pcs |
| Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
packing weight: 2200kg
packing volume: 19.5cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 14.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.40 m | 50×3.0 | CS289×289 | 2pcs |
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 7.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 16pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 241.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
For an immersive and captivating outdoor concert experience in Africa, a custom roof stage is essential. This stage provides ample space for performers, equipment, and audience engagement, while ensuring protection from the elements.
Specifications:

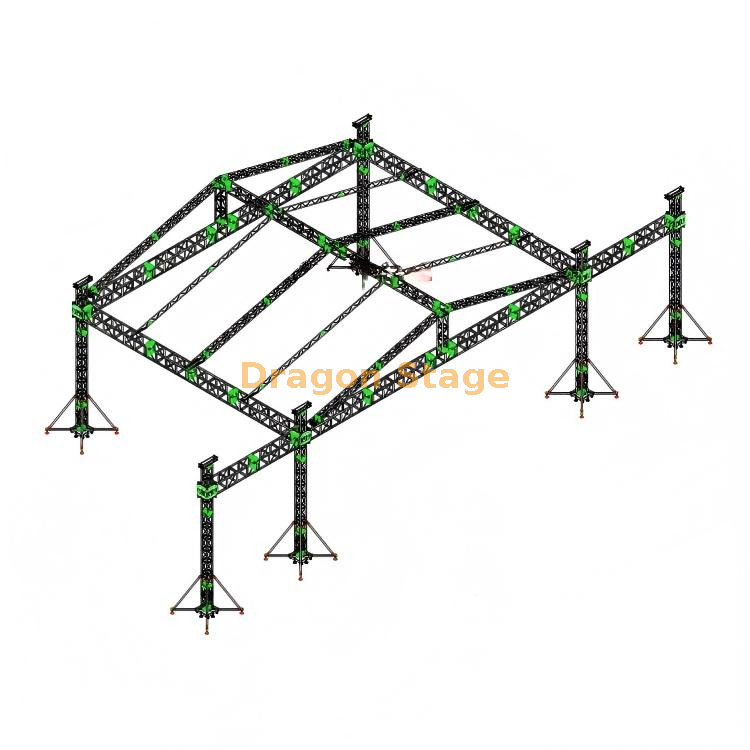

The custom roof stage boasts impressive dimensions: length of 14 meters, width of 10 meters, and height of 7 meters. This spacious design accommodates a large number of performers and instruments, allowing for dynamic and engaging performances.
Stage Platform:
The stage platform measures 12.2 meters in length and 8.54 meters in width. Its adjustable height, ranging from 0.8 to 1.2 meters, provides flexibility for various performance requirements. Two sturdy stairs ensure safe and convenient access to the stage.
Roof Design:
The stage's roof is designed to provide optimal protection from the sun, rain, and wind. Its durable materials ensure longevity and resilience in the demanding African climate. The roof's shape and angle are carefully engineered to minimize sound distortion and enhance the overall acoustic experience.
Benefits:
This custom roof stage offers numerous benefits for outdoor concerts in Africa:
Protection from the elements: The roof shields performers and audience from harsh weather conditions, ensuring a comfortable and enjoyable experience.
Enhanced acoustics: The roof's design minimizes sound distortion, creating an optimal acoustic environment for both performers and audience.
Flexibility:The adjustable stage platform and ample space allow for diverse performance setups and configurations.
Visual impact: The stage's impressive dimensions and sleek design make it a focal point of the concert venue, captivating the audience's attention.
Conclusion:
The custom roof stage for African outdoor concerts is a meticulously designed structure that meets the unique requirements of this vibrant music scene. Its spacious dimensions, adjustable platform, and protective roof ensure a memorable and immersive experience for performers and audience alike.
