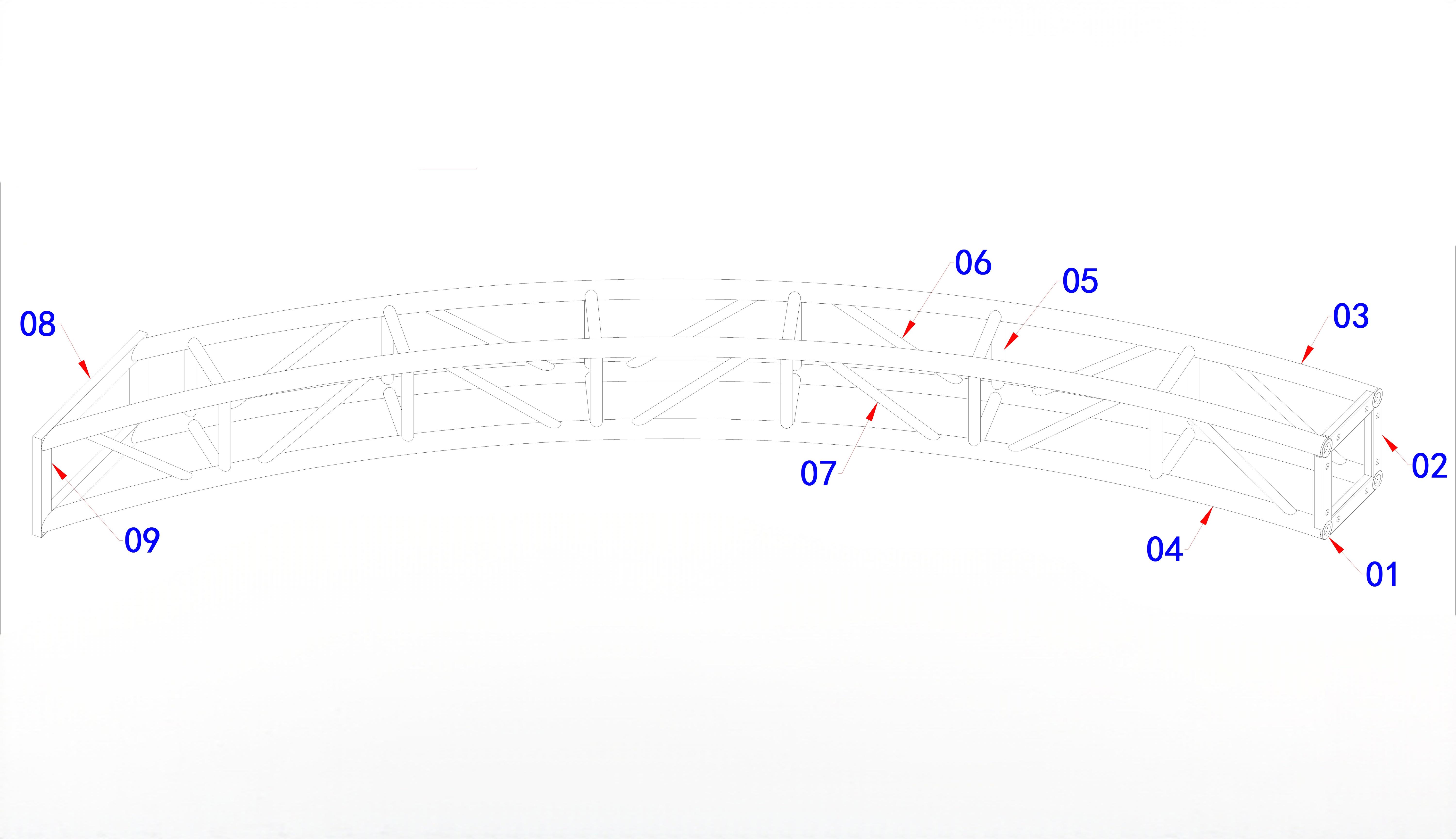

The above drawing represents a customized curved BS300 round tube bolt-connected aluminum truss designed for exhibition hall lighting and decorative structures.
The drawing index is used as a reference for locating related CAD drawings and production records.
Drawing Information
Item
Details
Drawing Index
4273
Drawing Series
BS300 Curved Round Tube Bolt-Connected Truss
Structure Type
Customized Curved Aluminum Truss Component
Application
Exhibition Hall Lighting Structure / Decorative Structure
Cross Section
Width 300mm × Height 300mm
Main Tube
50mm Aluminum Round Tube
Length
7.052m
Environment
Indoor Application
Material
Aluminum Alloy
Connection System
Bolt Connection
Drawing Type
2D CAD Drawing
Design Purpose
Exhibition Hall Lighting Structure Component
4273-BS300 Customized Curved Bolt Truss Design for Exhibition Hall Lighting Structure
Introduction
This drawing archive presents the 4273-BS300 customized curved round tube bolt-connected aluminum truss component developed for exhibition hall lighting structures and decorative installations.
The drawing is indexed under reference 4273, and the related drawing file represents a customized long-span curved configuration based on the BS300 round tube bolt-connected truss design.
Unlike standard straight truss sections, this BS300 curved truss is designed to create an arc-shaped visual structure for indoor exhibition environments, lighting arrangements and decorative frameworks.
With a total length of 7.052m, this configuration demonstrates the customization capability of the BS300 bolt-connected truss system for special venue layouts.
Design Overview
The 4273-BS300 adopts a modular curved bolt-connected round tube structure.
Compared with fixed welded structures, bolt-connected truss components provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible assembly;
Customized structural configuration.
The curved design allows the structure to achieve specific architectural and visual requirements while maintaining the advantages of aluminum truss systems.
Typical applications include:
Exhibition hall lighting frameworks;
Indoor decorative structures;
Entertainment venue lighting systems;
Customized display structures.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For customized curved truss structures, the curved truss component is only one part of the complete system.
The final configuration depends on:
Overall span;
Curvature requirements;
Equipment loading;
Supporting structure;
Installation environment.
Compared with standard straight truss, curved truss requires additional manufacturing control because the radius and overall geometry directly affect assembly accuracy.
Aluminum alloy is widely used in exhibition and event structures because of its lightweight characteristics, corrosion resistance and clean appearance.
For future purchasing applications, this drawing archive can be connected with:
BS300 Curved Round Tube Bolt Truss
Possible product configuration:
BS300 Curved Truss × 7.052m
Related applications:
Exhibition Lighting Truss;
Decorative Curved Structure;
Indoor Event Framework.
The drawing archive demonstrates Dragon Stage's custom design capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the 4273-BS300 curved truss mainly used for?
The 4273-BS300 curved truss is mainly designed for exhibition hall lighting structures, decorative frameworks and customized indoor event installations.
2. What makes this BS300 truss different from standard curved trusses?
This configuration is customized with a longer 7.052m length and is designed specifically for exhibition hall structural layouts.
3. Can Dragon Stage customize different curved lengths?
Yes. Length, curvature and structural configuration can be customized according to project requirements.
4. Why use bolt-connected truss for exhibition structures?
Bolt-connected truss provides advantages in transportation, storage and flexible installation compared with permanent welded structures.
5. Can this structure be used outdoors?
This specific design is intended for indoor exhibition applications. Outdoor applications require additional consideration of environmental conditions and structural requirements.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's custom design capability.
Final structural design should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
