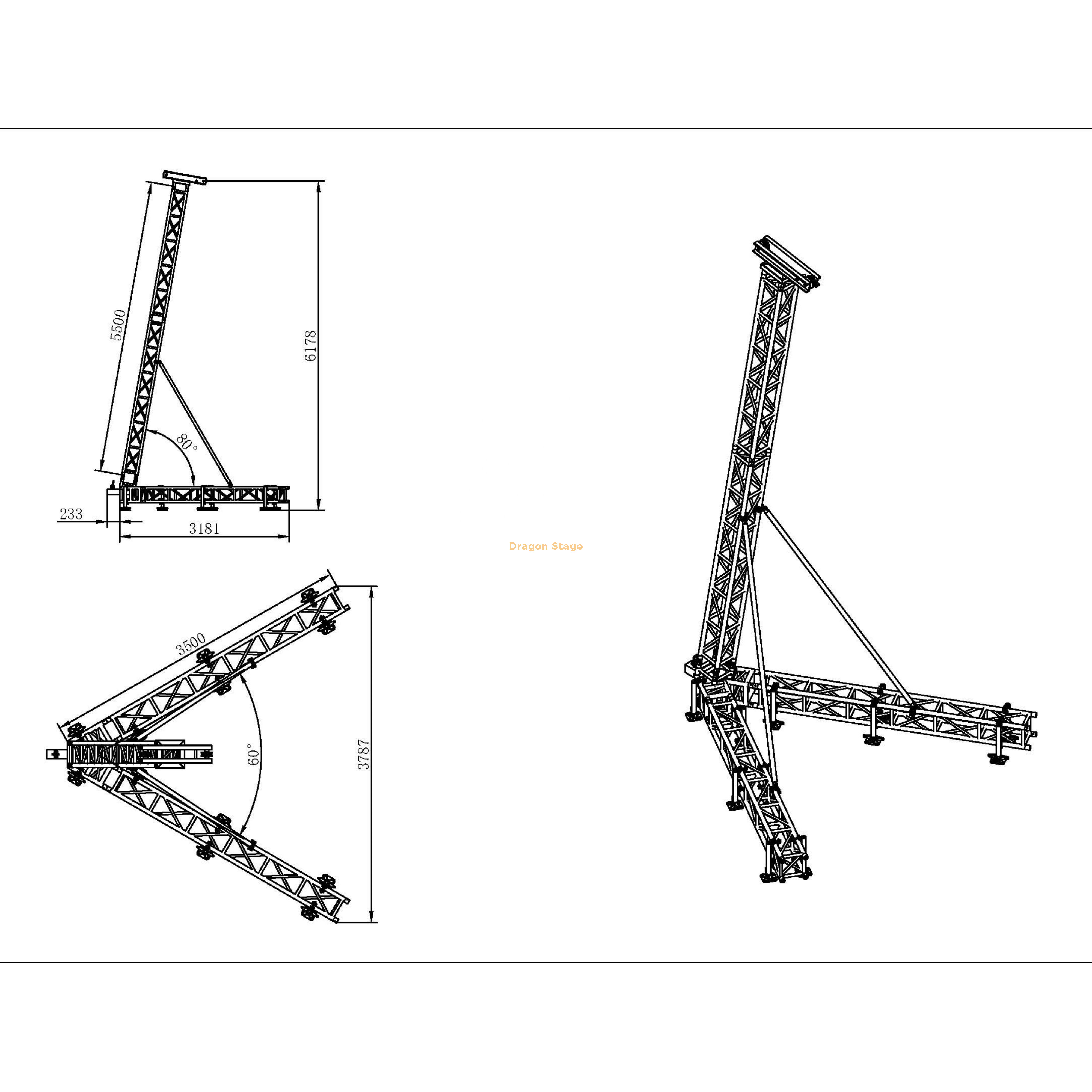

Heavy-duty Sound Lifting Tower 5.5m Drawing

Professional sound pillars and high-capacity concert rigging systems must deliver absolute structural reliability to handle heavy off-center cantilever forces and concentrated hanging payloads safely indynamic venue environments. By utilizing a high-performanceConnection & Material Systembased on thick-wall 6061-T6 aluminum alloy, this 5.5-meter heavy-duty lifting tower achieves exceptional resistance against buckling, twisting, and lateral deflection caused by massive line array speakers. The entire architecture is grounded in a sophisticatedmodular design / modular system logic, allowing the straight vertical mast chords, precision guide sleeves, top pulley heads, and extended stabilizing outrigger arms to lock together flawlessly while strictly adhering to internationalsafety and quality standards. To guarantee total operational security against unexpected wind actions during live outdoor festivals or stadium tours, every tower configuration is backed by a rigorousload capacity / load analysis, ensuring maximum durability forprofessional stage equipmentwhere mechanical lifting safety, downsized transit volumes, and verified physical overturning resistance work in perfect unison.

• This heavy-duty sound lifting tower is produced by aprofessional stage & truss manufacturerusing precision-welded structural main chords and dense webbing profiles to handle high-leverage forces cleanly.

• As a premierconcert & event stage solution, it streamlines site logistics by allowing production crews to securely attach massive concert audio setups at ground level before lifting.

• The system'smodular design / modular system logicutilizes standard truss sections that can be completely disassembled for easy transport or integrated directly into comprehensive, multi-tower outdoor roof grids.

• Every load-bearing weldment, sleeve block wheel assembly, and hinge pin connection is technically accurate and engineered to meet strict global quality benchmarks, includingTUV, SGS, and CE certifications.

• Our commitment to providing hardware that withstands rigorousload capacity / load analysisconfirms our dedication to professional safety for theglobal concert touring, stadium production, and large-scale event rental industries.

Key Features:

• Height: The tower stands at 5.5 meters, offering sufficient elevation to ensure optimal sound coverage and clarity.

• Construction: Built with heavy-duty materials, this tower is capable of handling substantial loads, making it suitable for professional audio applications.

• Adjustability: Features adjustable components that allow for fine-tuning the position of the sound equipment to achieve the best acoustic results.

• Stability: Equipped with a sturdy base and reinforcement to maintain stability, even when supporting heavy loads.

• Ease of Use: Designed for straightforward assembly and disassembly, facilitating easy transportation and setup.

Benefits:

• Improved Sound Quality: Elevating the sound equipment helps in achieving better sound distribution and reduces the impact of ground reflections.

• Versatility: The adjustable nature of the tower allows for customization to suit different event configurations and acoustic environments.

• Durability: Constructed to last, withstanding the demands of frequent use and various weather conditions.

• Efficiency: Streamlines the setup and teardown processes, saving time and effort during event preparations.

The Heavy-Duty Sound Lifting Tower 5.5m is an indispensable tool for sound technicians and event planners seeking to deliver high-quality audio experiences. Its combination of strength, adjustability, and ease of use makes it a preferred choice for a wide range of live sound applications.

FAQ

1. What is the maximum payload capacity for this tower at its full 5.5-meter extension?

• Total point and distributed load values depend strictly on your tower section profile and outrigger setup; please cross-reference your total speaker weight with our certifiedload capacity analysis documentationbefore lifting.

2. Can this mechanical lifting tower be safely used outdoors?

• Yes, for outdoor applications handling heavy line arrays, the extended outrigger arms and leveling jacks provide excellent tipping-point resistance. However, following ourModular System Logic, proper base ballasting should be applied as outlined in ourstability guidelines.

3. Does the tower utilize a steel wire rope winch system for lifting?

• Yes, utilizing our heavy-duty sleeve block framework and a high-tensile internal steel wire mechanism, production crews can smoothly and safely raise the entire audio payload to the top of theAluminum Connection Systemtower.
