Black Paint Steel Base Plates And Additional Weights for Pipe And Drapes System
50 Reviews
* Overall system height * Width of each section * Fabric type and weight * Straight, angled or enclosed layout * Public access around the installation * Indoor airflow or outdoor wind exposure

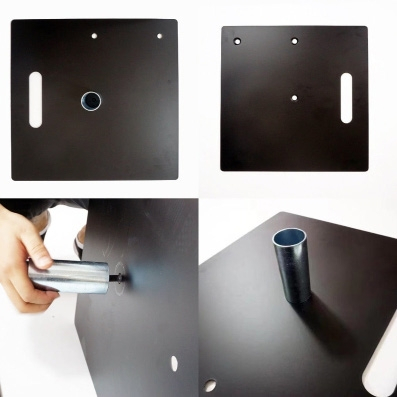

Base plates support the uprights and stabilize the freestanding structure. Each upright must be installed on a compatible base, with the plate positioned flat on a suitable surface.
Size (in)
Size (mm)
Thick (mm)
Weight (kg)
14″ × 16″
356 × 405
4
2.55
15″ × 15″
380 × 380
4
4.60
18″ × 18″
450 × 450
5
7.46
18″ × 18″
450 × 450
8
12.0
18″ × 18″
450 × 450
10
14.5
20″ × 20″
500 × 500
5
9.50
20″ × 20″
500 × 500
8
13.8
20″ × 20″
600 × 600
5
14.8
24″ × 24″
600 × 600
10
27.8
Taller configurations and heavier fabrics generally require a more substantial stability solution. Additional weights may be used where specified, but adding weight does not automatically make an unsuitable configuration safe. Base plates should remain level, unobstructed and protected from accidental movement. For a more detailed explanation of the factors involved, see how to calculate steel or aluminum base weight.
