Custom 24x20x8m Professional Portable Aluminum Triangle Shape Roof Truss System

1. Introduction

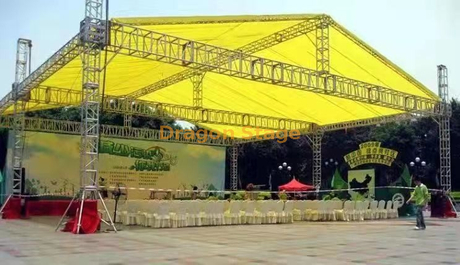

For the most ambitious outdoor productions—ranging from major music festivals to large-scale corporate assemblies—the stage must provide both massive scale and superior structural performance. The Custom 24x20x8m Aluminum Triangle Shape Roof Truss by DragonStage is an elite venue solution providing a staggering 480 square meters of covered performance area. Featuring a unique triangle-profile roof and a commanding 8-meter vertical clearance, this system is engineered to house complex technical riders, expansive LED walls, and high-fidelity audio arrays. For event producers, the primary challenge is achieving a 24-meter clear span that remains safe under heavy loads and high winds—a challenge this reinforced aluminum system addresses with precision custom engineering.

2. Challenges & Solutions

The primary challenge of a 24-meter span is managing structural deflection and the "sail effect" of the canopy. Traditional flat or gabled roofs can trap wind and water; DragonStage solves this with the Triangle Shape geometry, which is aerodynamically optimized to allow wind to pass over the structure with reduced lift. Furthermore, the steep angle of the triangle roof ensures that even the heaviest rainfall sheds immediately, eliminating the risk of water pooling that can compromise structural integrity. For crews working on uneven festival grounds, our 8-meter ground support towers feature heavy-duty adjustable leveling jacks and reinforced outriggers, ensuring a perfectly stable and plumb rig on any terrain.

3. Key Features & Benefits

This 24x20x8m system is manufactured from aerospace-grade 6061 aluminum alloy. This material is the global benchmark for high-load event structures, offering an exceptional strength-to-weight ratio and natural resistance to environmental corrosion (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).

The system features a multi-tower ground support lift. This allows the massive 24x20m roof grid to be fully rigged with lighting, audio, and video at waist height before being safely hoisted to its 8-meter peak. According to international safety standards for temporary performance structures, the use of a synchronized motor lift system is essential for maintaining a level and secure structure during elevation (Source:https://www.prolight-sound.com).

To ensure a seamless and safe performance area, this trussing is fully compatible with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional grade of the overhead triangle roof (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).

4. FAQ Section

Q: Why choose a triangle shape roof over a standard pitched roof?A: The triangle geometry provides superior wind deflection from multiple angles and faster water runoff, which is critical for large 24-meter spans in outdoor environments.

Q: What is the maximum weight the 24m span can support?A: This system is designed for stadium-scale rigging. While limits depend on specific load distribution, the reinforced box truss is engineered to support several tons of professional equipment.

Q: Is the PVC canopy fire-safe?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.

Q: Can this large system be transported in standard containers?A: Yes. Despite its massive size when assembled, the system is fully modular and breaks down into 2m and 3m truss sections for efficient international shipping.

5. Strong Call to Action (CTA)

Ensure your next large-scale production is built on a foundation of elite engineering and absolute safety. Contact DragonStage’s engineering team today for a custom quote on the 24x20x8m Triangle Shape Roof Truss System. Download our technical specifications and start planning your most ambitious event season yet.
