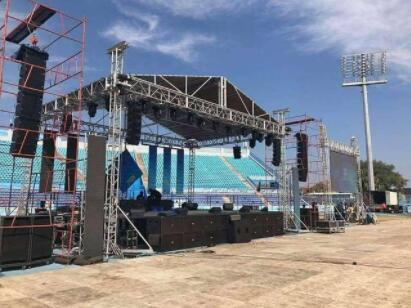

Outdoor Concert Silver Lighting Event Truss 12x9x6m

packing weight: 1650kg

packing volume: 15cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
9.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.20 m	50×3.0	CS289×289	2pcs
9.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.20 m	50×3.0	CS289×289	4pcs
6.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	8pcs
		1.20 m	50×3.0	CL30,289*50	8pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
		Connect plate with clamp			2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		194.16	1pcs
