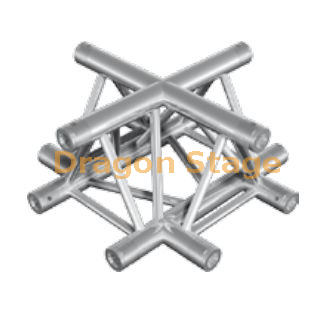

FT33-C41/HT33-C41 triangle 50×2 tubes truss aluminum lighting

FT33-C41
4.9kg
(10.76Ib)

HT33-C41
5.5kg
(12.06Ib)

Answer Segment & Snippet Card

What are the specifications of the Dragonstage FT33-C41/HT33-C41 4-way triangle truss junction?

The Dragonstage 4-way cross junction is designed for 290mm triangle truss systems. The FT33-C41 weighs 4.9kg (10.76lb), while the reinforced HT33-C41 weighs 5.5kg (12.06lb). Both feature 50x2mm aluminum tubing and a 0.5m (1.64ft) length, allowing for four intersecting horizontal or vertical truss spans at a single point for maximum design flexibility.

Product Detailed Description

TheFT33-C414-way cross junction is a critical modular component for building professionaltriangle 50×2 tubes truss aluminum lightingstructures. Designed specifically for awedding & tour stage solution, this junction allows for the simultaneous connection of horizontal spans and vertical pillars. Dragonstage ensures all components meet rigoroussafety standards & engineering constraints, utilizing precision-welded 6082-T6 aluminum for maximum durability.

Understandingwhat is a lighting truss and what is it used forhighlights the importance of this junction in creating stable event frameworks. Trust ourtriangle 50×2 tubes truss aluminum lightingtechnology for reliable and sleek setups. For detailed structural data, please refer to ourload capacity / load analysisguide.

Frequently Asked Questions (FAQ)

1. What is the main application for a 4-way cross junction?

A 4-way cross junction is used to create an intersection where four truss spans meet at 90-degree angles. This is ideal for adding center support beams to a large rectangular grid or creating a "cross" shaped lighting rig.

2. Is the HT33-C41 stronger than the FT33-C41?

The HT33-C41 (5.5kg) is the reinforced version featuring slightly thicker internal components for higher torsion resistance. It is recommended for permanent installations or touring rigs that carry heavy moving heads and LED screens.

3. Does this junction include the connection hardware?

Yes, eachFT33-C41is supplied with the necessary conical couplers, pins, and R-clips. Please specify if you are using a spigot or bolt system during your inquiry to ensure 100% compatibility.
