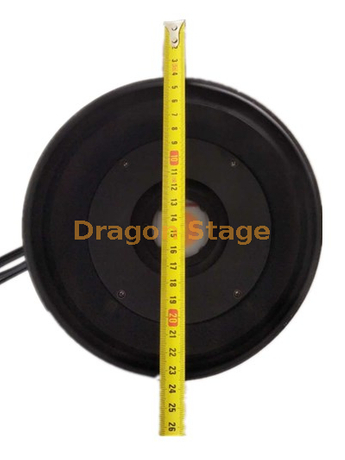

200W Monochromatic COB Downlight

Product name: 200W monochromatic focus COB downlight

Product model: C2002TF

Optical system

Light source: 1 high-brightness 200W cob integrated lamp bead

Light source life: >50000 hours

color system

Warm White/Cool White

Preset 2700/3200/4300/5600/6500K and 8000K color temperature modes, linearly adjustable color temperature 2700K-8000K

Effect

Lighting angle: 15-60 degrees

Dimming: 0-100% electronic dimming

Strobe: 0-20 seconds

Protection class

IP20

Display: LED digital display, the button will be automatically locked after 15 seconds of standby to prevent misoperation, and the button will be activated after long pressing the menu button for 3 seconds

software

Through the DMX data line upgrade, the DMX address code setting, machine reset and other functions can be completed from the console, and the program can be written through the console or menu, and it can be run after storage.

aisle

1/2CH

control

Input signal isolation protection function, high temperature automatic protection

Electrical parameters

Power supply: AC90-240V, 50/60Hz

Power: 200W

size and weight

Product size: 35*20*37cm

Packing size: 38*23*40cm

Net weight: 5.5kgs

Gross weight: 6.0kgs
