Outdoor Concert Stage Platform with Pitched Roof Truss System 12x8x6m Modular Stage Platform 10.98x7.32m Height 1.2-2m

5 0 Reviews

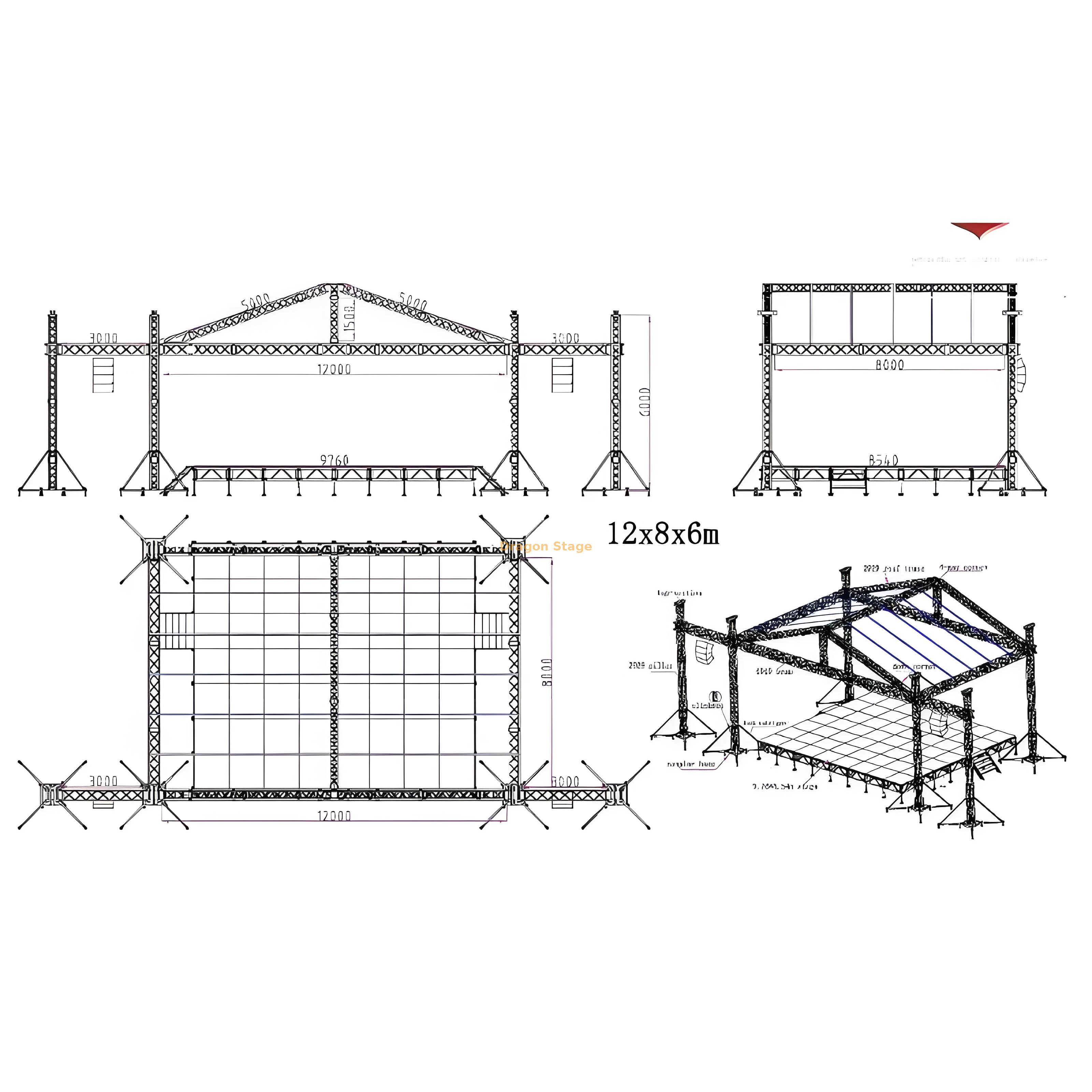

Outdoor Concert Stage Platform with Pitched Roof Truss System 12x8x6m
Modular Stage Platform 10.98x7.32m Height 1.2-2m with 2 adjustable stairs
Price: 42520  -  74216
Features:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Dragon Stage

packing weight: 2000kg

packing volume: 17cbm

Item
Specification(squre truss)Qty

lengthmain tube(mm)size(mm)
12.00 m Beam(front)2 sets3.00 m50×3.0CS389×3898pcs
2.00 m50×3.0CS389×3890pcs
1.00 m50×3.0CS389×3890pcs
8.00 m Beam(side)2 sets3.00 m50×3.0CS389×3894pcs
2.00 m50×3.0CS389×3892pcs
1.00 m50×3.0CS389×3890pcs
5.00 m Pillar4 sets3.00 m50×3.0CS289×2894pcs
2.00 m50×3.0CS289×2894pcs
1.00 m50×3.0CS289×2890pcs
Frame TowerSpigot Sleeve Block S4pcs
Steel Base S4pcs
Top Section S4pcs
Manual hoist,BA05 2Tons4pcs
Spigot Hinge Section,Height 1m4pcs
Fibre sling,BA04,2 tons 3m4pcs
Long outrigger16pcs
Item
Specification(squre truss)Qty

lengthmain tube(mm)size(mm)
Roof Pillar2 sets1.20 m50×3.0CS289×2892pcs
8.00 m Top Beam1 sets3.00 m50×3.0CS289×2892pcs
2.00 m50×3.0CS289×2891pcs
1.00 m50×3.0CS289×2890pcs
6.20 m Oblique Beam4 sets3.00 m50×3.0CS289×2894pcs
2.00 m50×3.0CS289×2894pcs
1.20 m50×3.0CS289×2894pcs
6.20 m Ladder truss6 sets3.00 m50×3.0CL30,289*506pcs
2.00 m50×3.0CL30,289*506pcs
1.20 m50×3.0CL30,289*506pcs
Roof Components
roof conner 4 ways, use for roof beam trussCS289×2892pcs

roof conner 5 ways, use for roof beam trussCS289×2890pcs

Connect plate with clamp2pcs

Single clamp12pcs

Double clamp8pcs

roof canopy material:pvc, Blue Colour or customized.179.361pcs
Item
Specification(squre truss)Qty

lengthmain tube(mm)size(mm)
3.00 m Wings Beam2 sets3.00 m50×3.0CS389×3892pcs
2.00 m50×3.0CS389×3890pcs
1.00 m50×3.0CS389×3890pcs
5.00 m Wings Pillar2 sets3.00 m50×3.0CS289×2892pcs
2.00 m50×3.0CS289×2892pcs
1.00 m50×3.0CS289×2890pcs
Wings TowerSpigot Sleeve Block S2pcs
Steel Base S2pcs
Top Section S2pcs
Manual hoist,BA05 2Tons2pcs
Spigot Hinge Section,Height 1m2pcs
Fibre sling,BA04,2 tons 3m2pcs
Long outrigger8pcs
Truss Accessory
Conical coupler & Safrty clip & pinwhole
set

packing weight: 1800kg

packing volume: 12cbm

ItemSpecificationQuantity
Aluminium assembly stagetopping: 4x8ft
(1.22x2.44m)
wooden27 pcs
1.22m stage brace36 pcs
2.44m stage brace30 pcs
stand with extendable tube40 pcs
Stage adjustable base40 pcs
Stage Stairwooden toppingtotal8steps2 pcs
