To Have A Professional Truss Design To Display Your Lighting Effects In The Utmost.

You are here: Home » Lighting Truss

Lighting Truss portable Lighting Truss global truss stage truss Exhibition Truss truss price stage truss for sale truss system

Reasonable Price

ALUMINUM LIGHTING TRUSS

dragon stage company is a professional aluminum truss manufacturer since 2008. our truss products including stage truss, truss display, lighting truss and other different custom aluminium stage trusses.

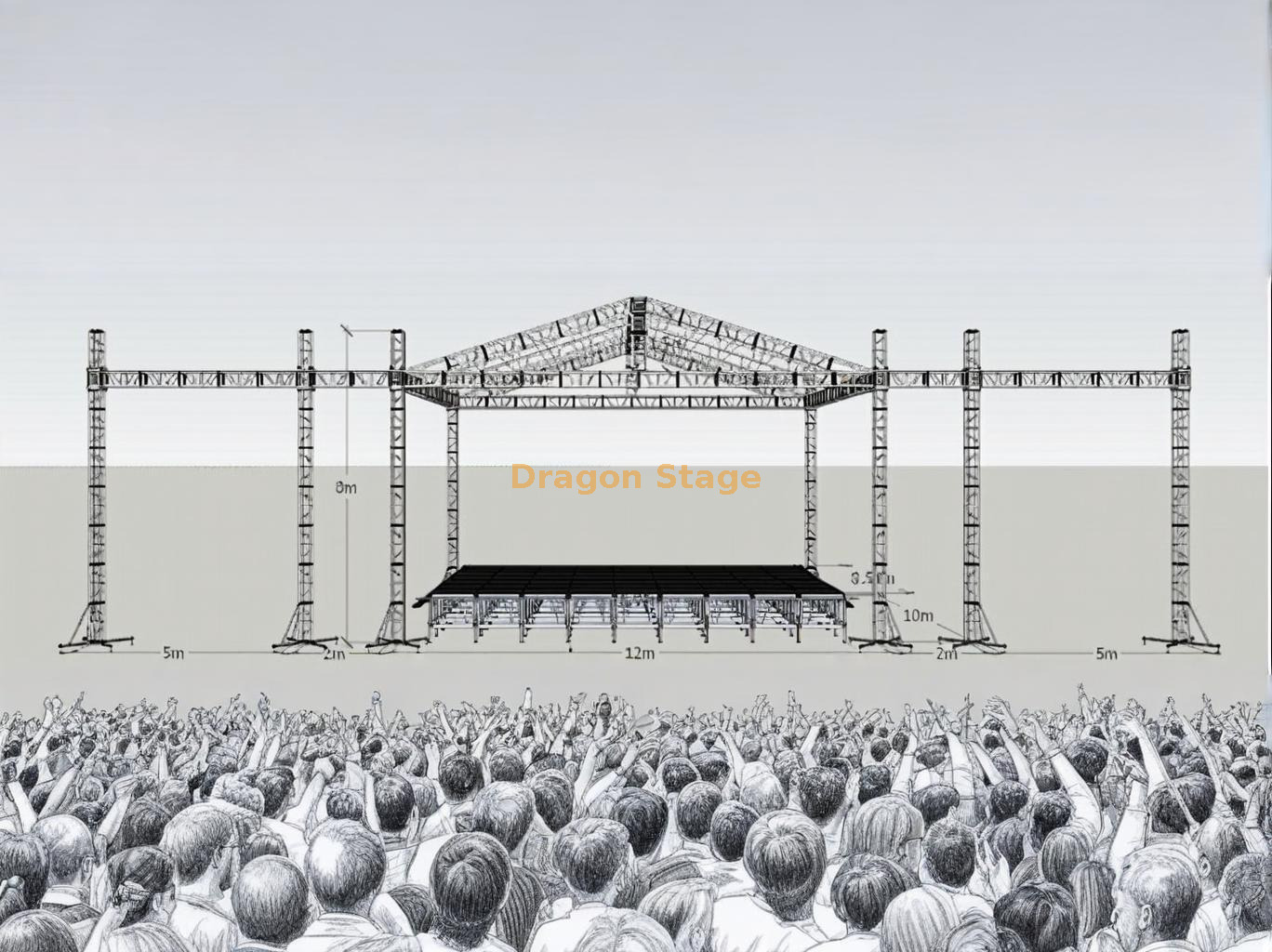

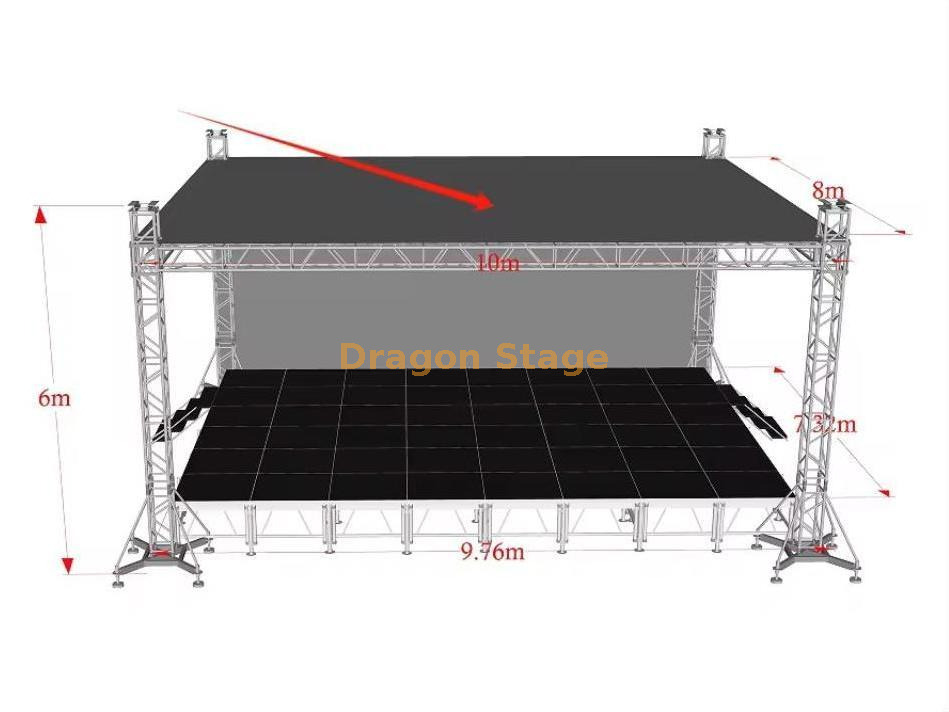

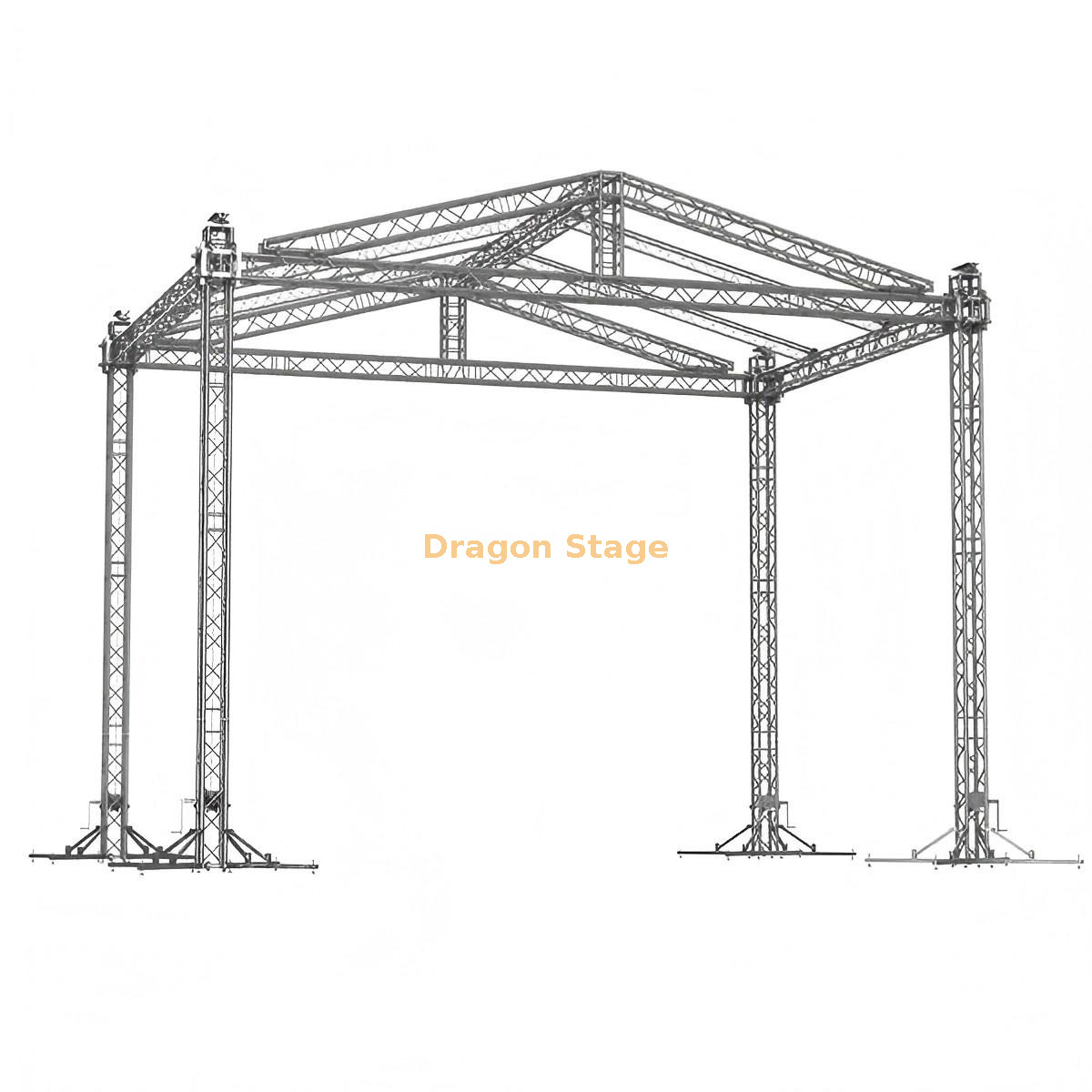

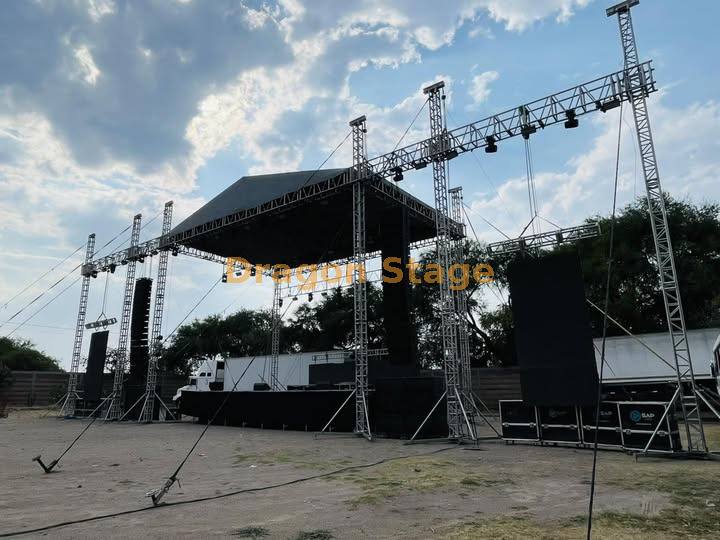

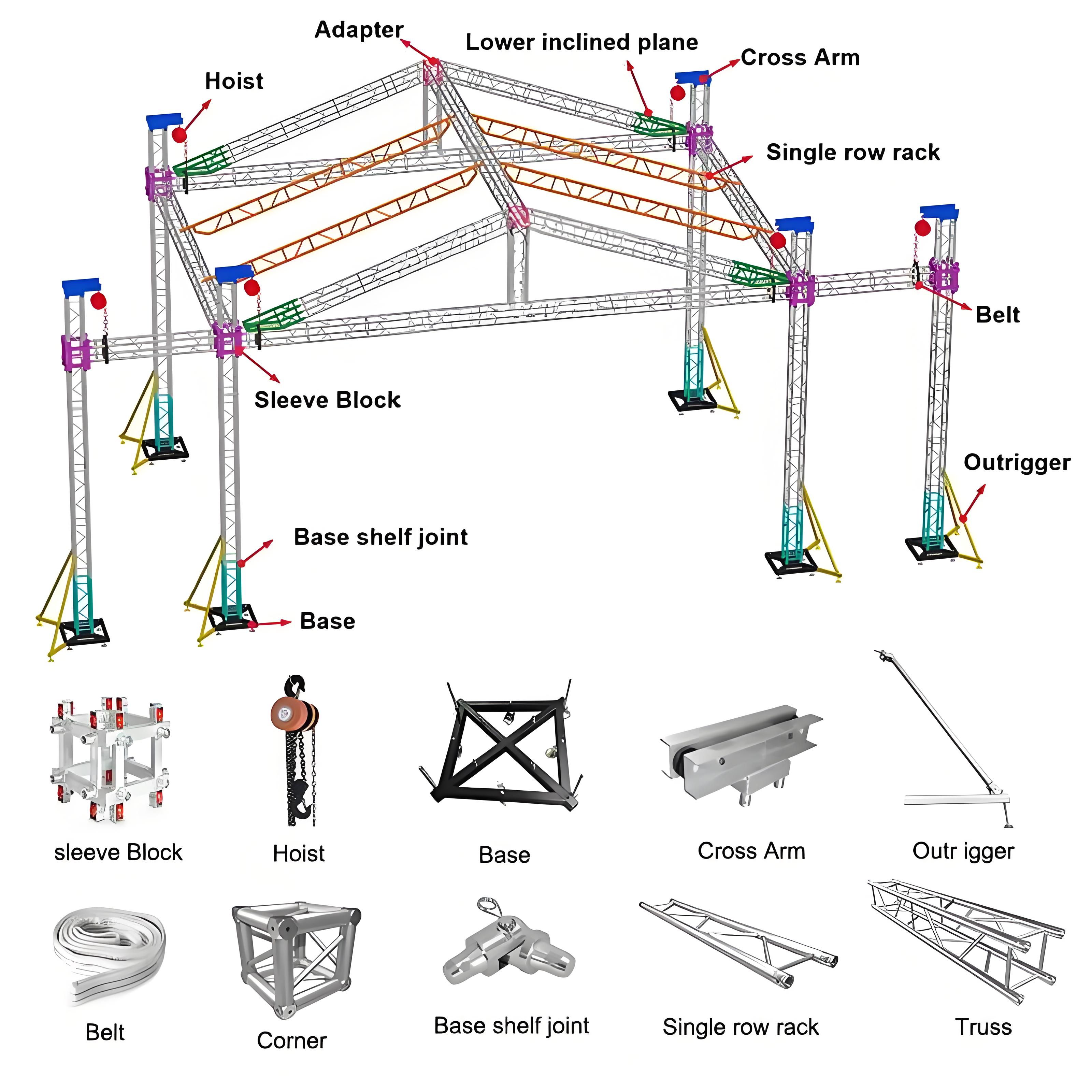

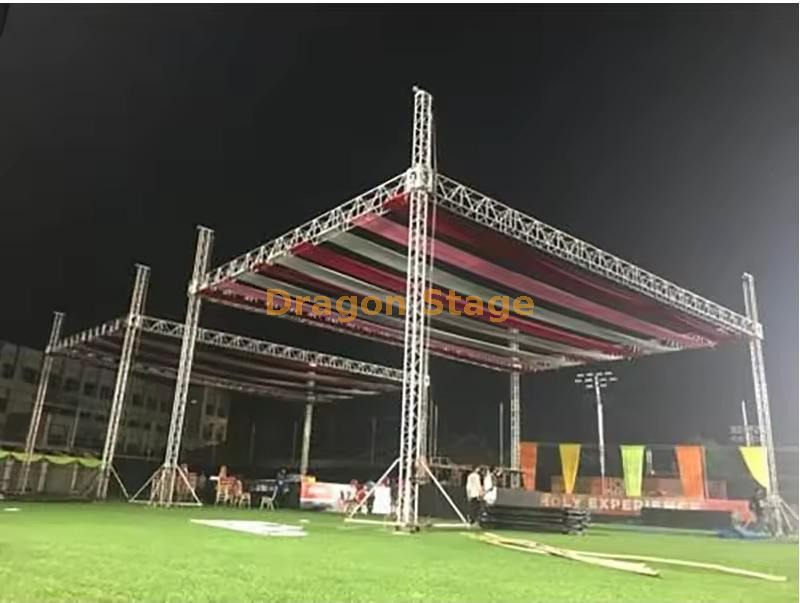

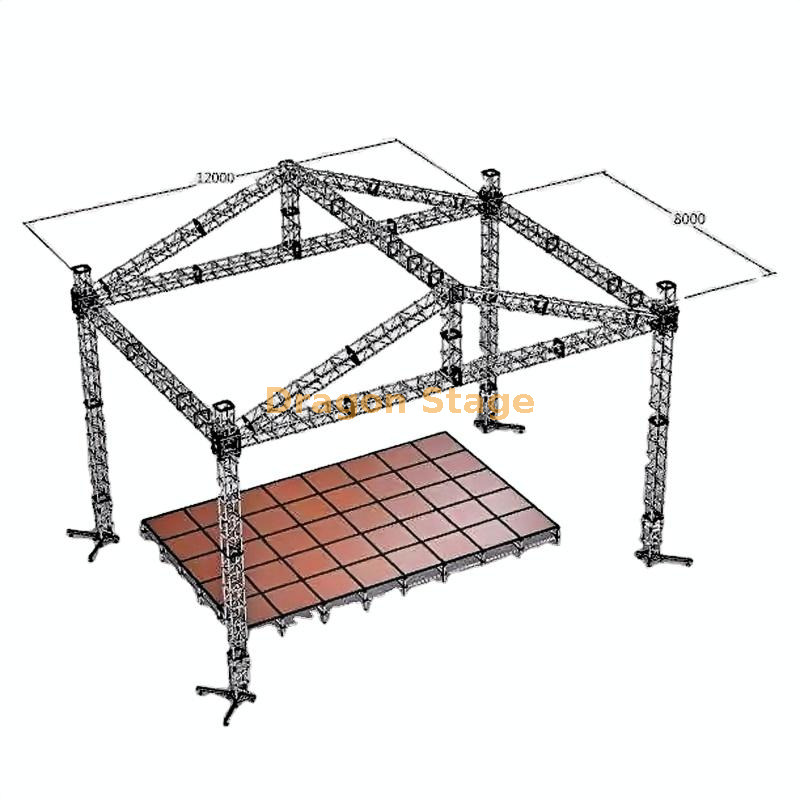

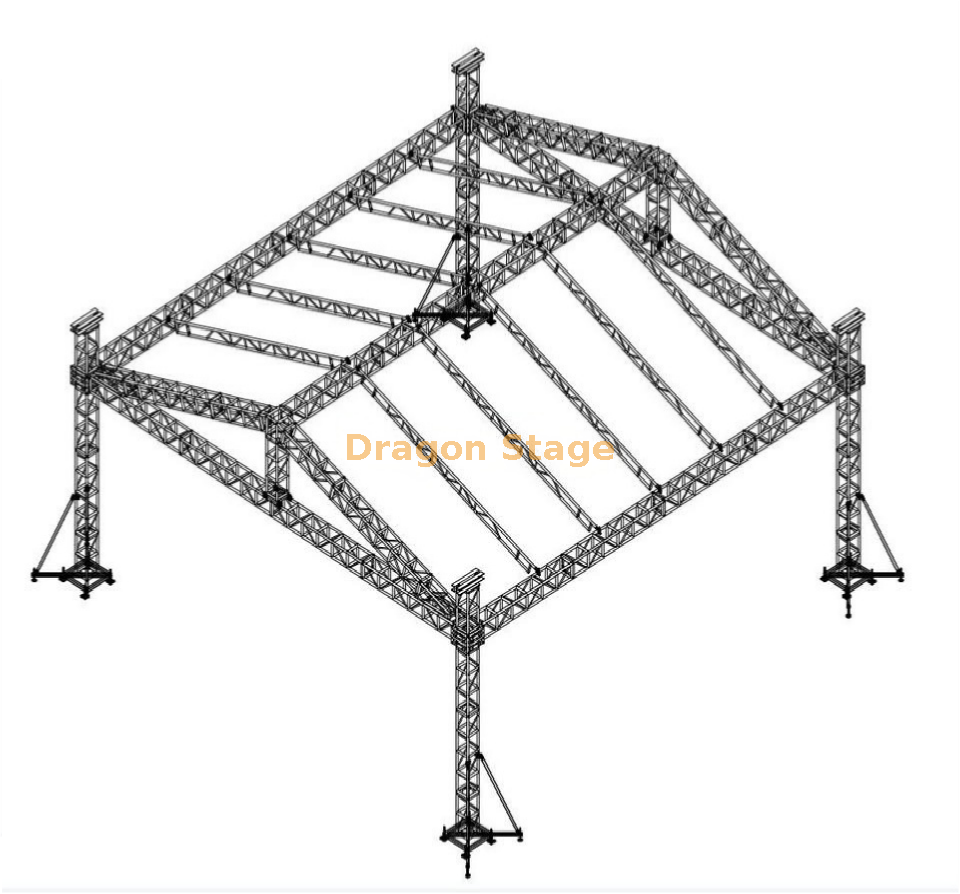

aluminum truss roof system is one of truss systems, and most truss stages are set up by spigot truss. in fact, we have screw truss to set aluminum stage truss syetem also.

some client want to save their costs and prefer to purchase used aluminum truss for steel roof truss design, stage light truss and aluminium truss system.

aluminum light truss is the most common stage truss system for sale in truss aluminium market, the engineers use truss clamps to set up aluminum stage frame truss structure, roof truss systems, truss roof system and curved roof truss.

in our facoty, we proudce and supply truss stand, dj truss, exhibition truss, truss lift tower, aluminum spigot truss and space truss structure, bolt truss, square truss, line array truss, box truss, line array speaker truss, truss structure.

our hot sell product stage truss system and aluminum truss stage, as well as dj light truss can be triangle truss, circle truss and used as truss for hanging speakers, dj truss system, speaker truss, lighting truss system, dj booth truss. these products are widely used for concert truss.

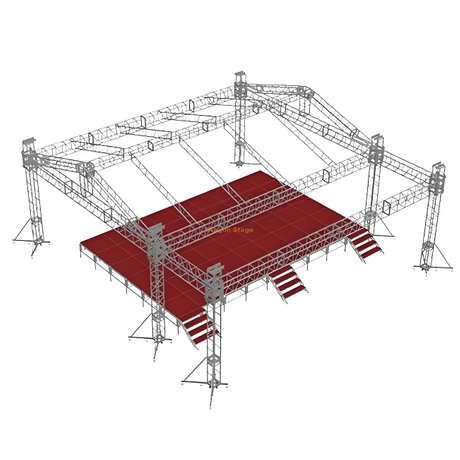

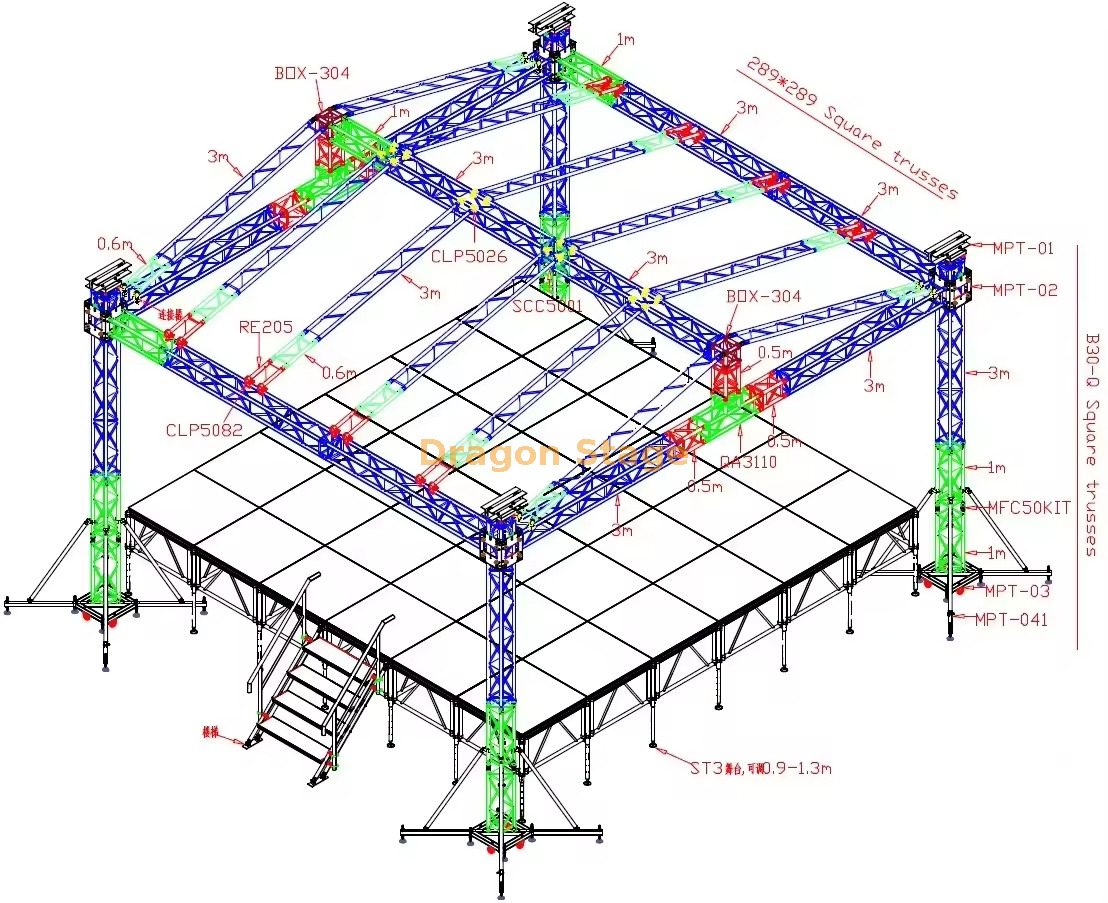

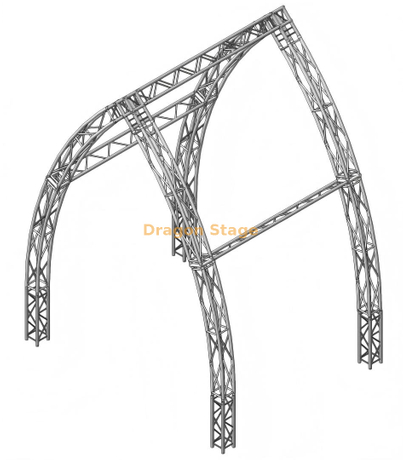

our unique and custom semi circle roof truss is also a kind of stage truss aluminum. it is a cheap truss comparing to those complex event truss with 6 or more truss towers and trusses for line array.

in China market, the round truss, mini truss, light truss stand,aluminum truss display are most welcome for the club indoor design. and aluminum truss lift are used for stage roof truss to assemble truss accessories.

Excellent Assistance Of Stage---Lighting Truss

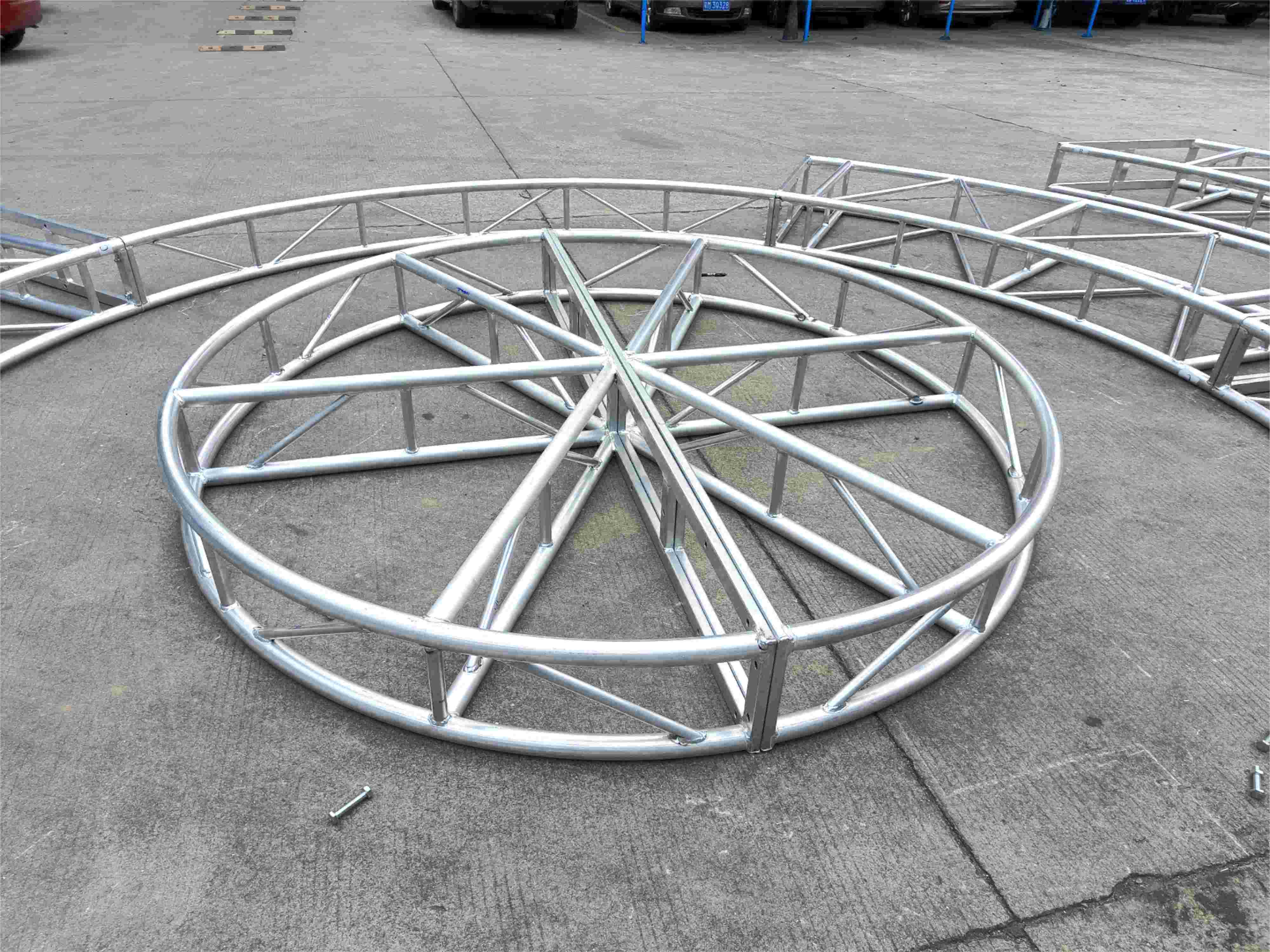

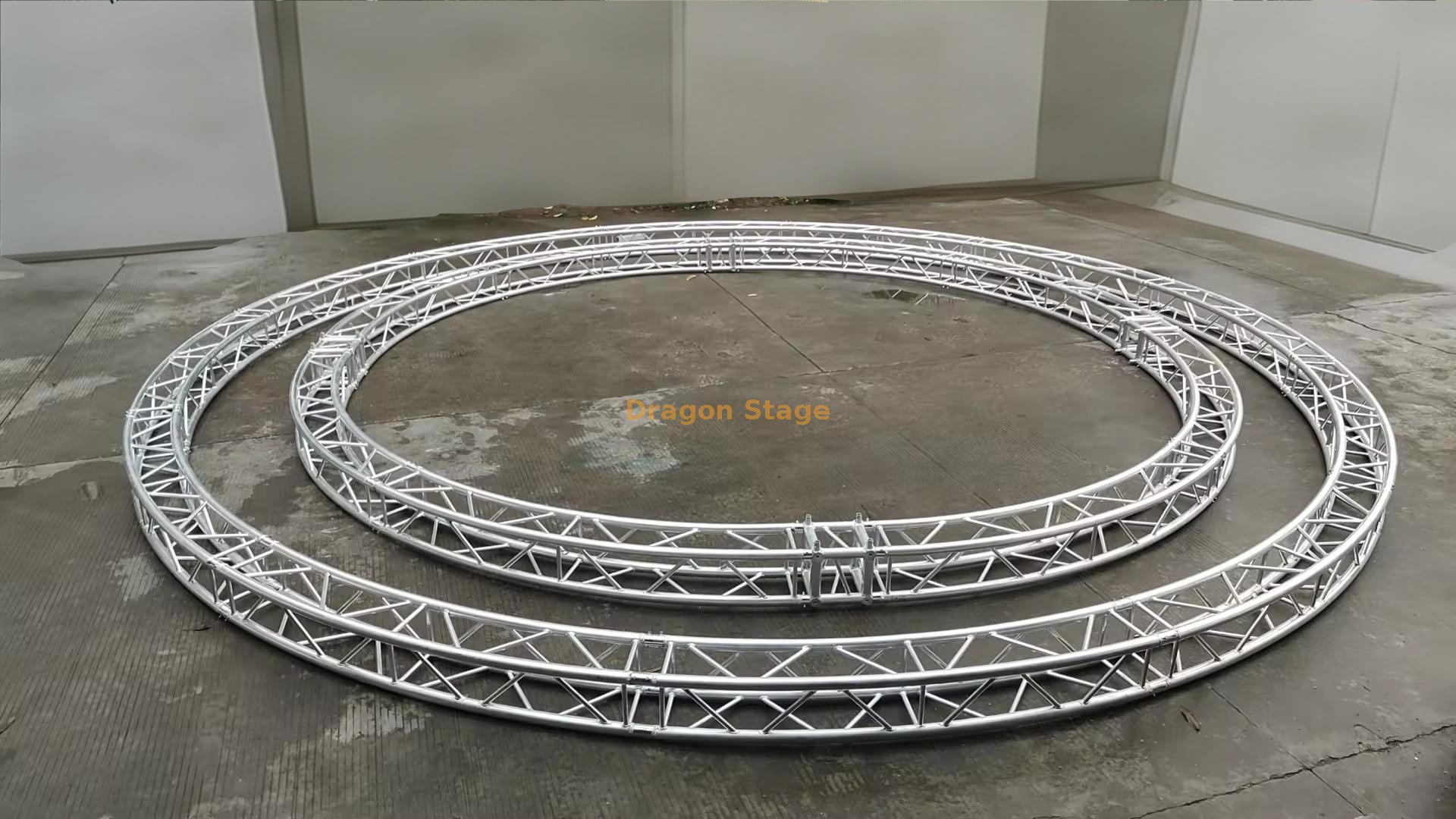

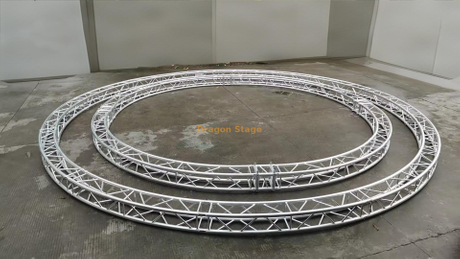

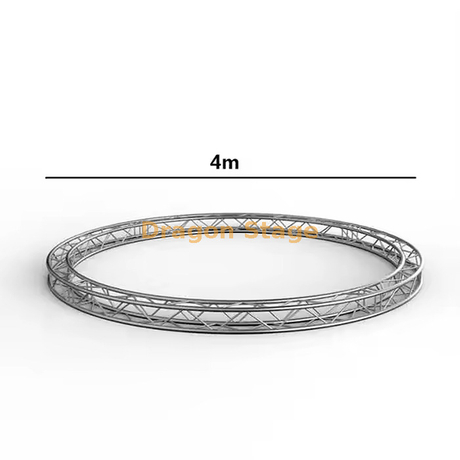

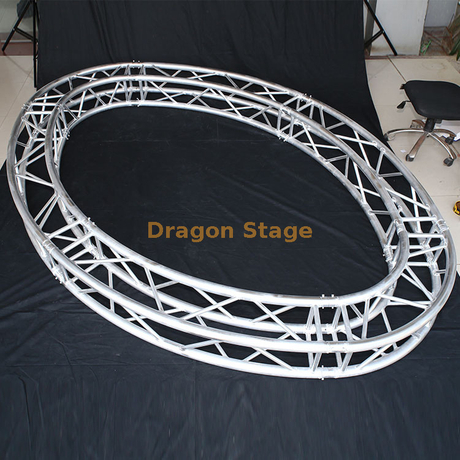

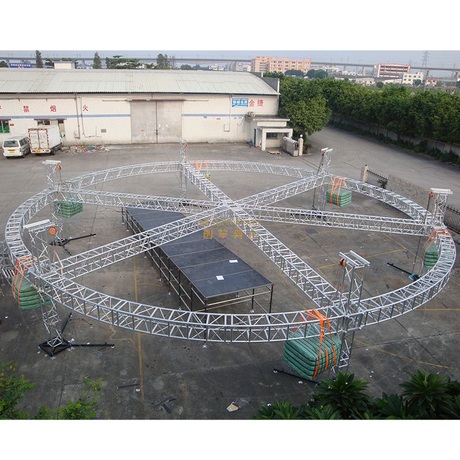

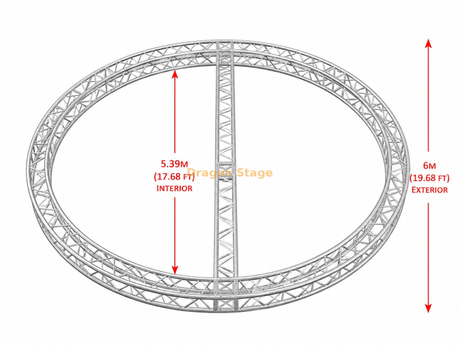

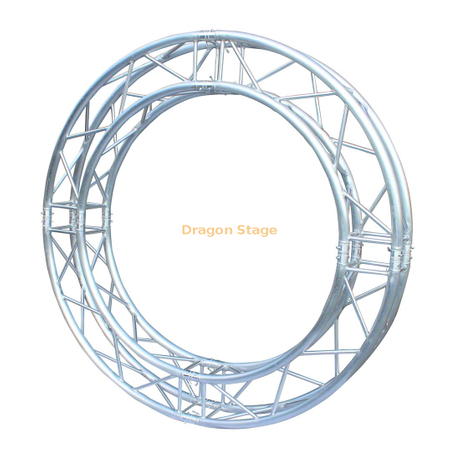

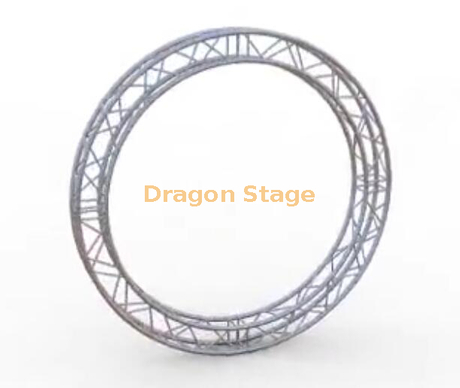

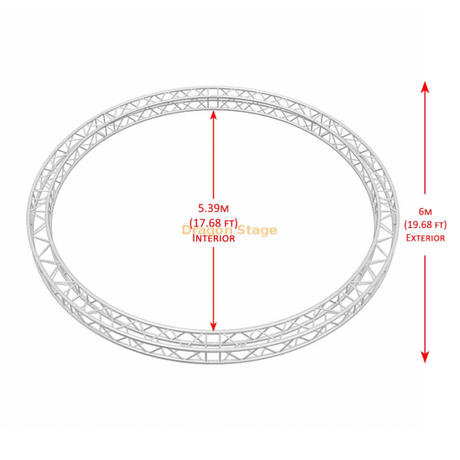

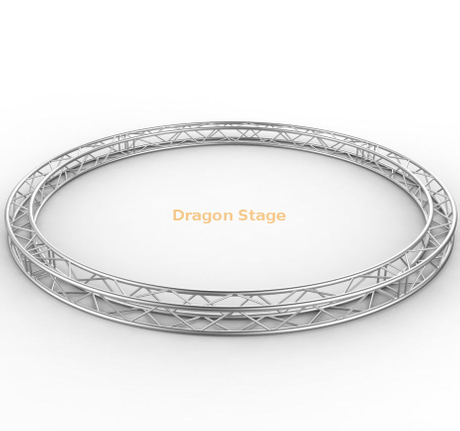

Definition: different sizes of round shape truss to hang lights and for stage scene design
Application range: it is widely used in lightings structure and stage scene design
Features: lightweight, easy install and dismantle

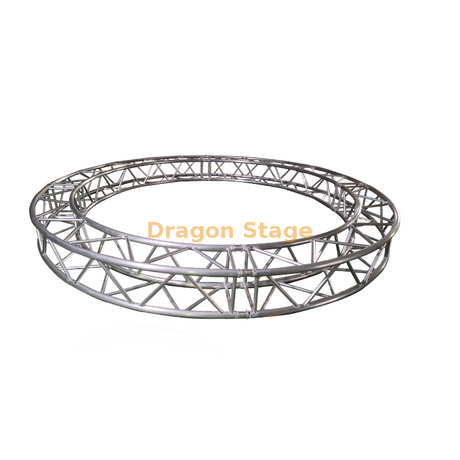

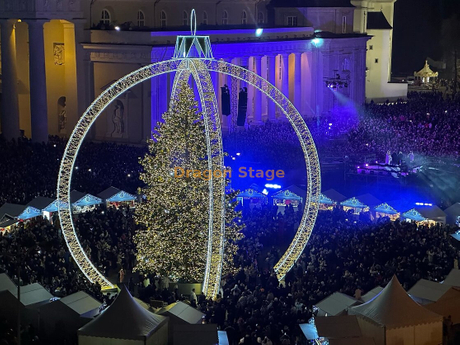

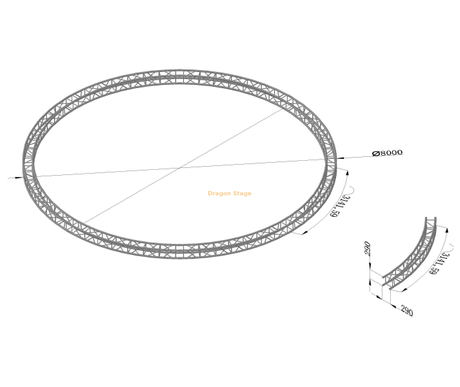

Circle Lights Truss

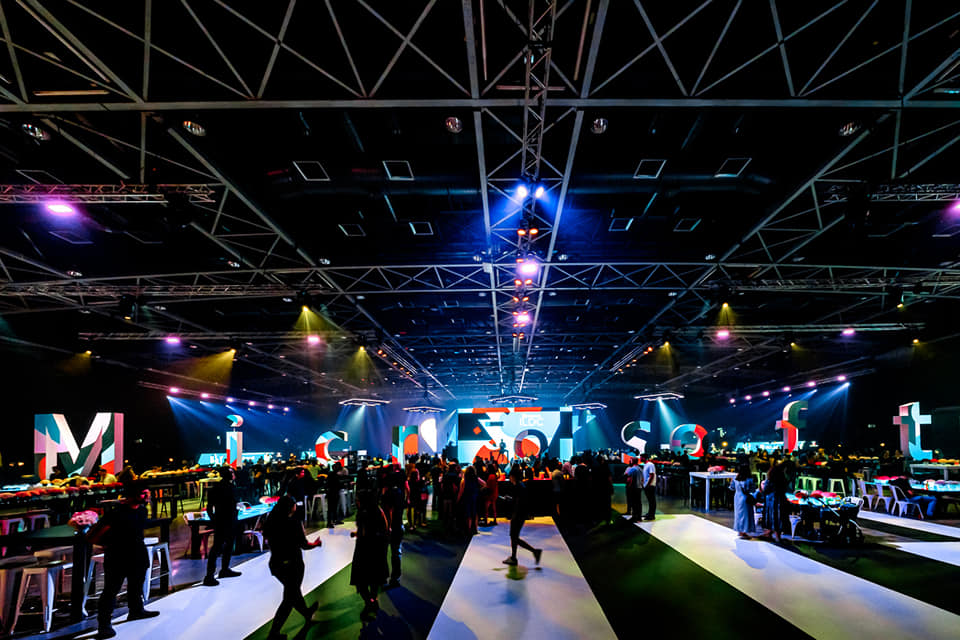

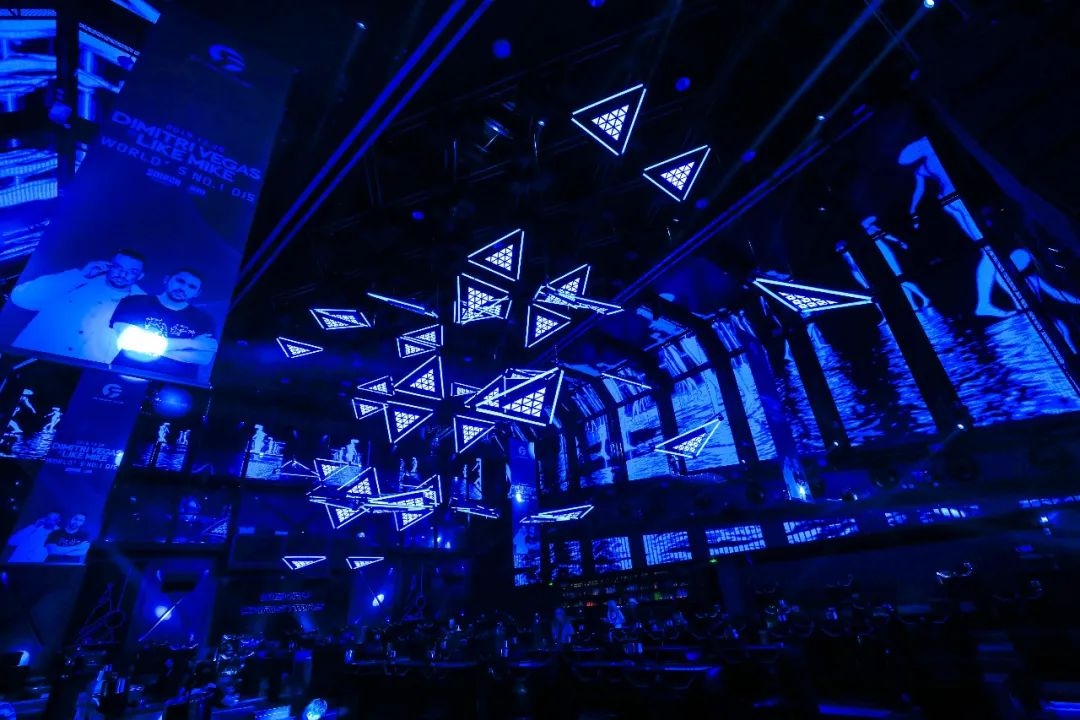

Definition: the club lighting design structure has multi functions for lights, stage equipments and speakers
Application scope: indoor outdoor artful lights decoration frames, large stage scene supports, lighting&audio equipments hangering structure
Features: custom make to design, artful, reusable

Club Lighting Design Structure
Definition: aluminum modular stage trusses can piece up nealy all sizes of stage with few custom production for lightings
Application scope: indoor party, club, outdoor event, gathering, concerts
Features: light weight, reusable, standard sizes, modular design

Rotate Lighting Truss
Definition: aluminum rotate truss is a kind of lights holder and spiner.
Application: can be widely used in many places where need artful lighting show, such as indoor party, club, outdoor event, gathering, concerts
Features: reusable. durable

Standard Aluminum Stage Lighting Truss

Application Of Lighting Truss

lighting truss is the most popular and common tools in the stage struture. it mainly falls into 2 kinds based on the material, namely steel truss and aluminum truss.

steel truss is heavy weighted but larger loading capacity. aluminum truss is light weighted, portable and solid.

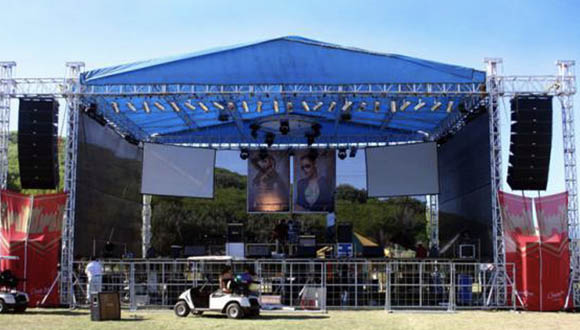

aluminum truss is widely used in all kinds of event and stage, it provides structure to hold lightings and other stage equipments. it is also the outdoor stage system main frame.

as people's needing to custom stage setting, lighting truss has been developing greatly from traditional box truss.

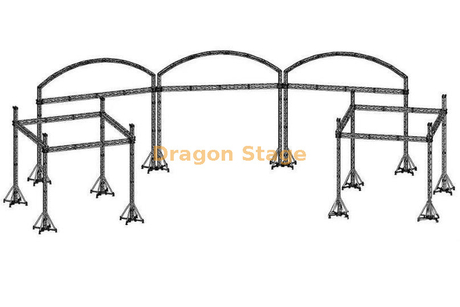

it has be careated into different shape and custom design, especially for those indoor lighting trusses, such as round truss, club unique truss desing.making the stage scenes colorful and artful ever than before.

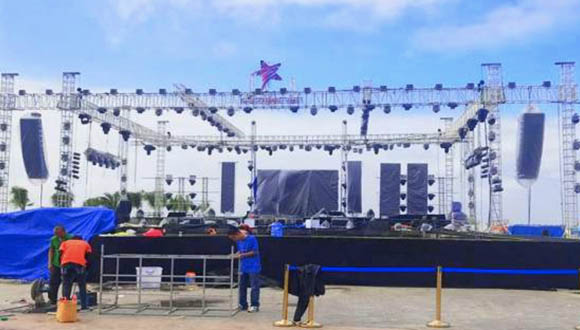

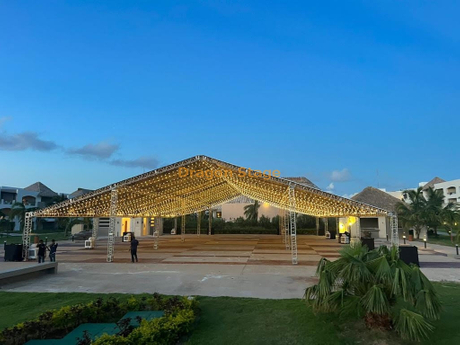

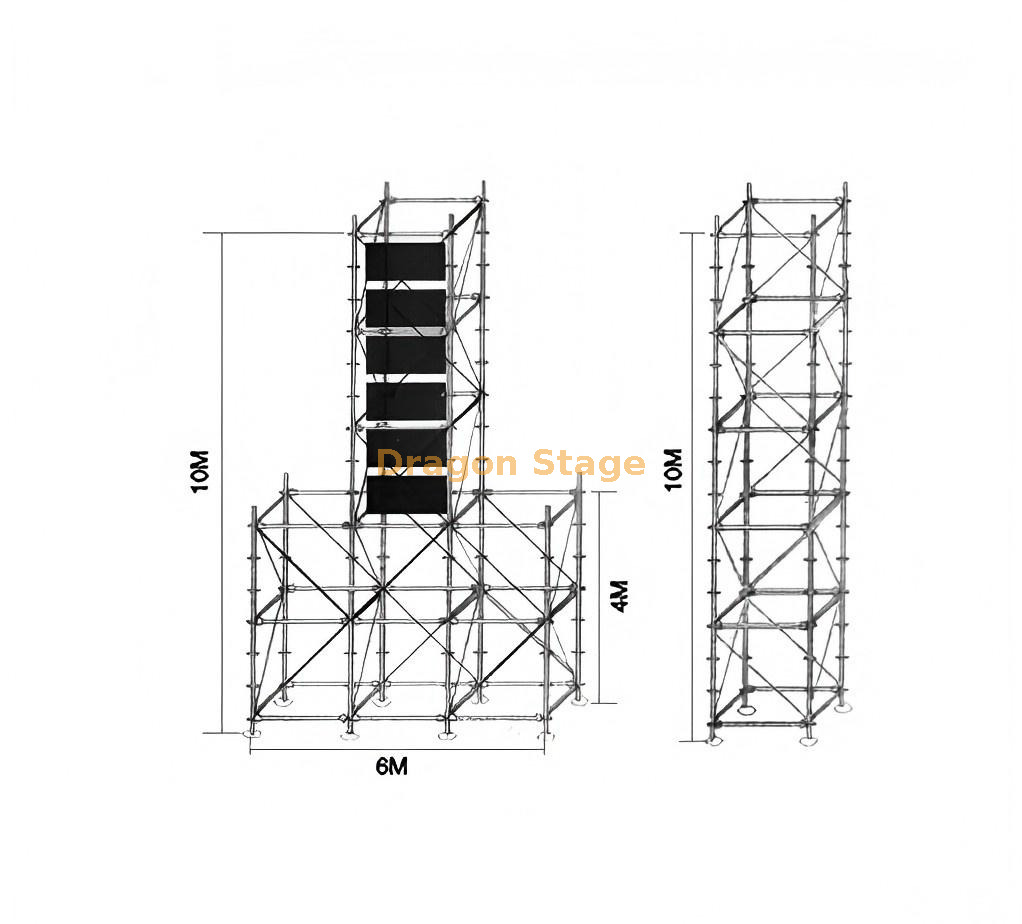

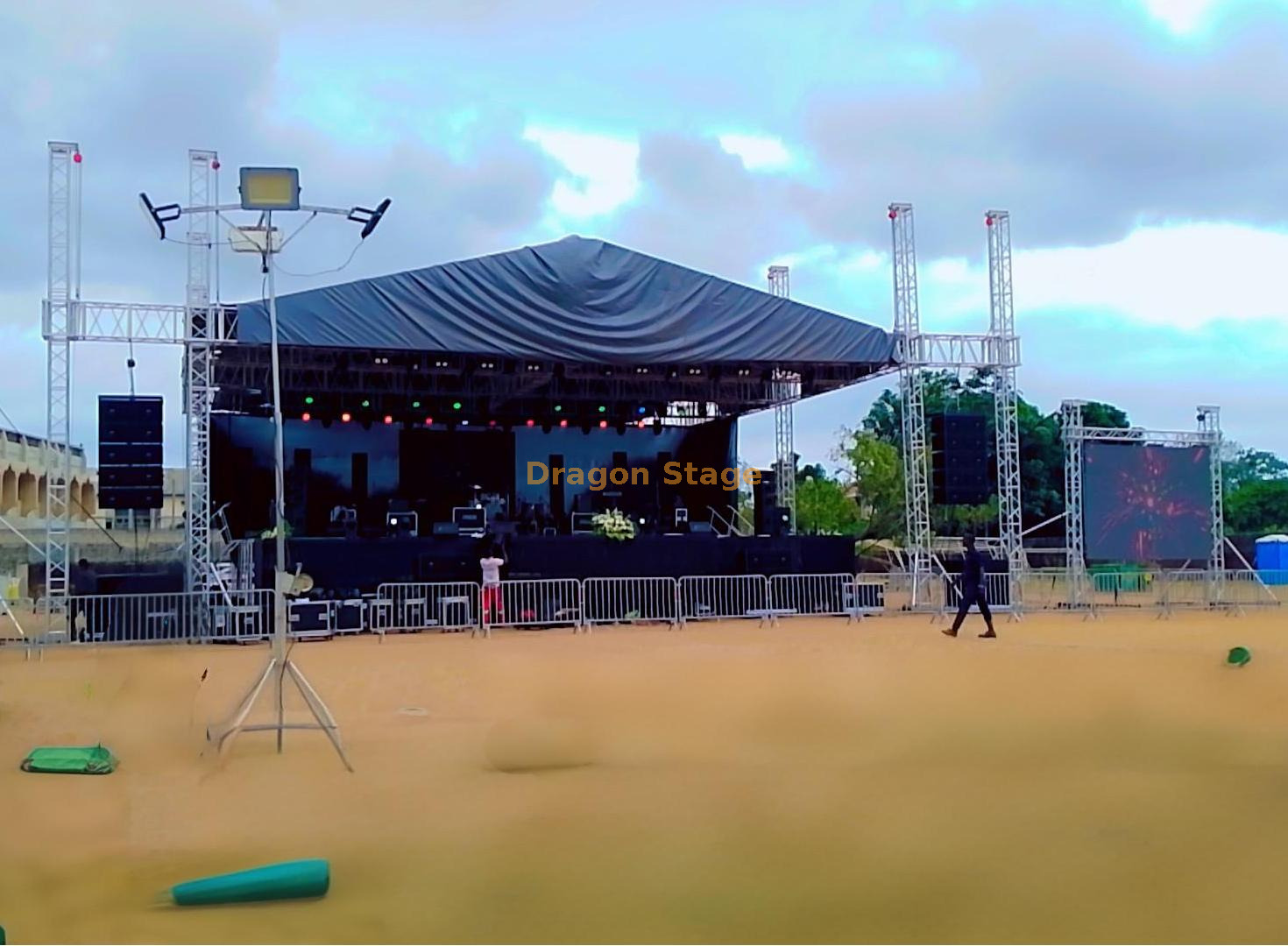

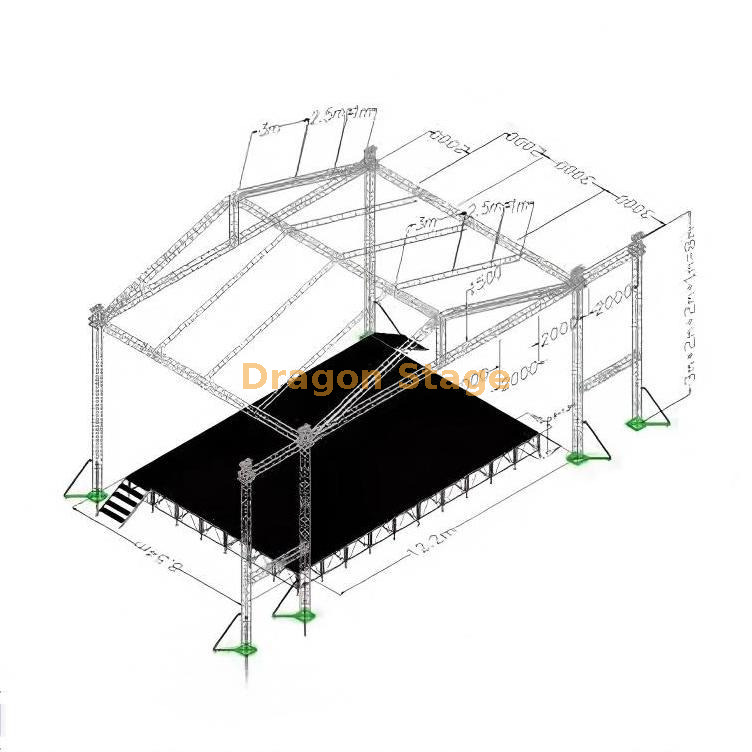

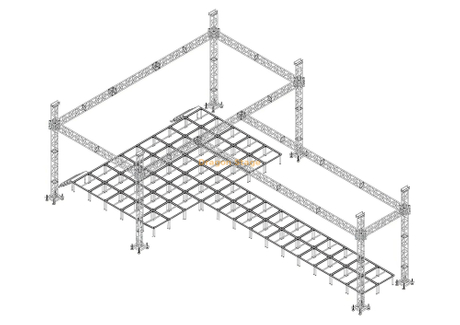

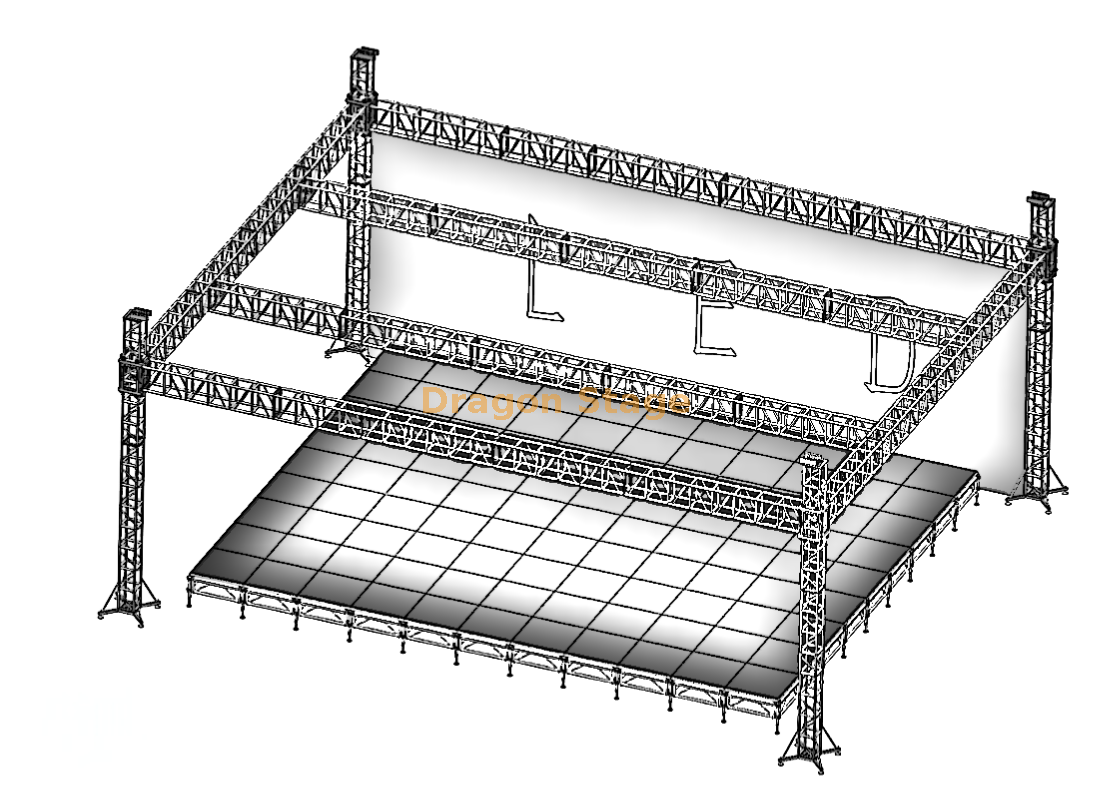

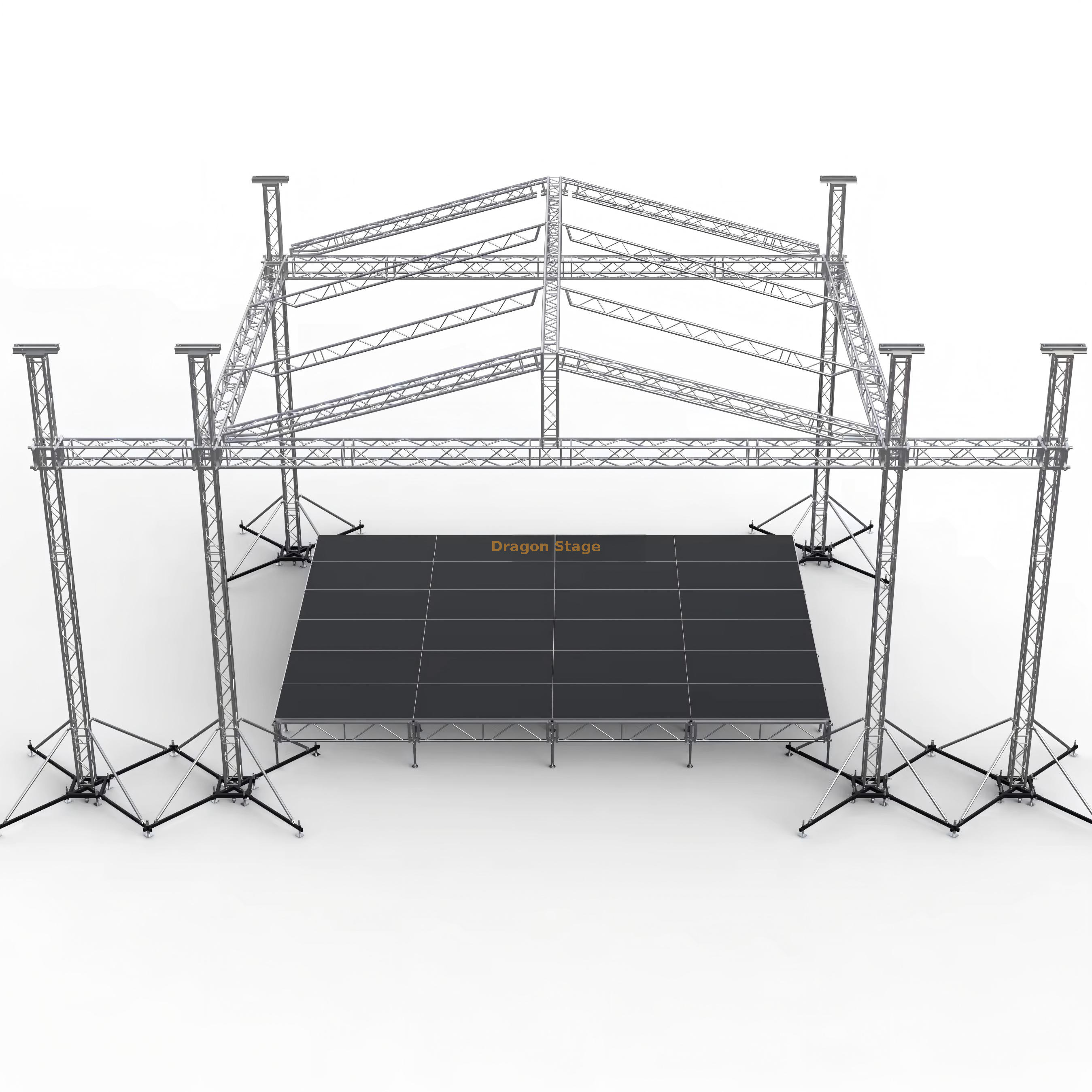

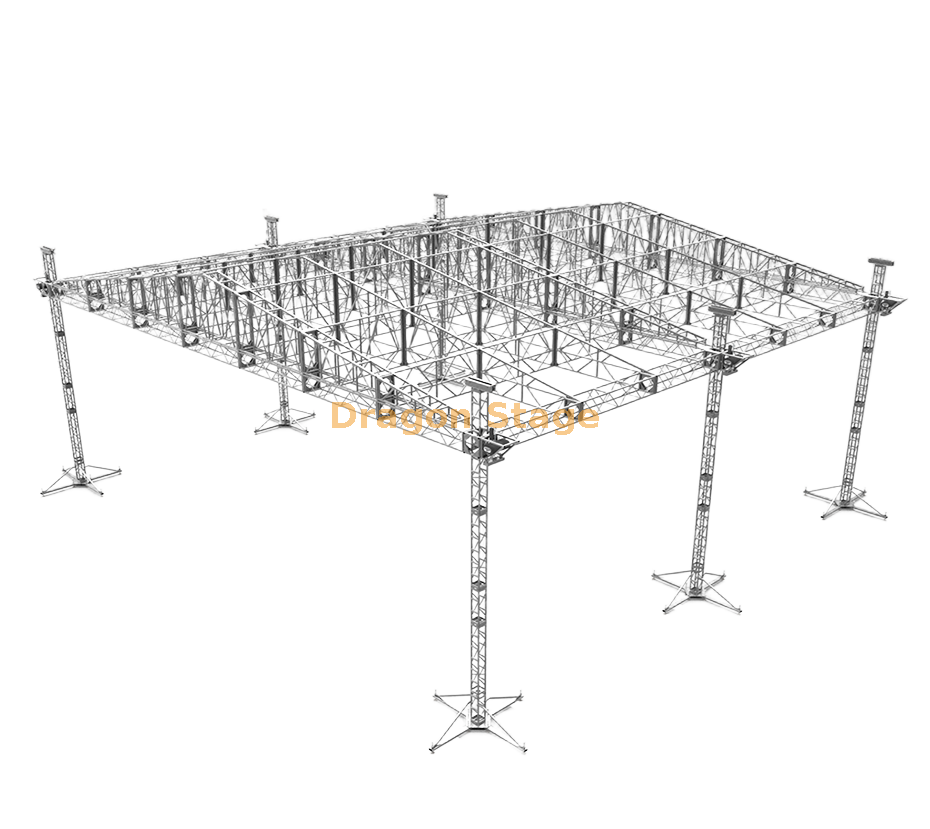

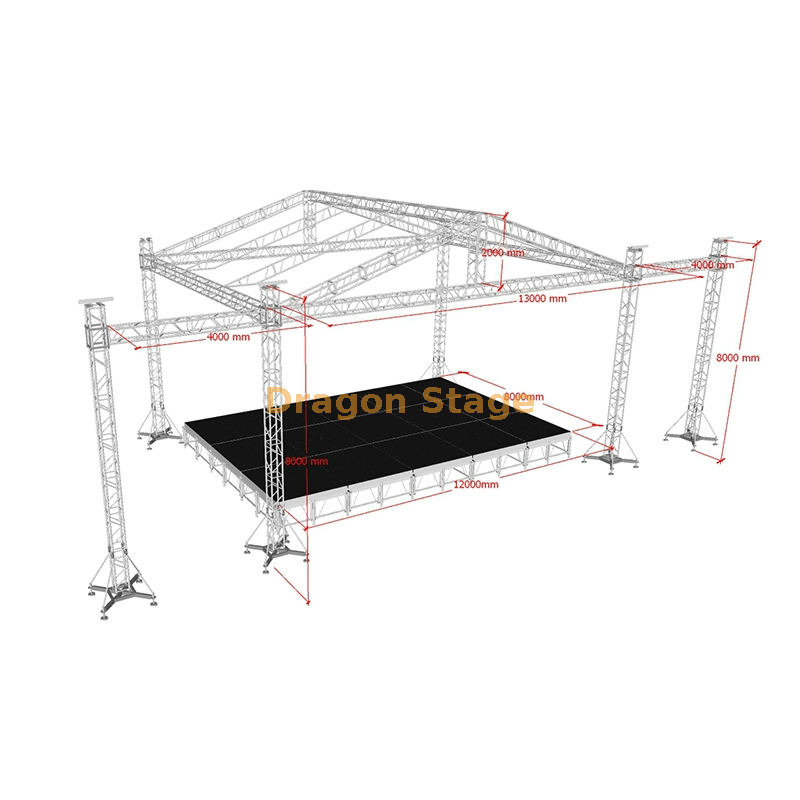

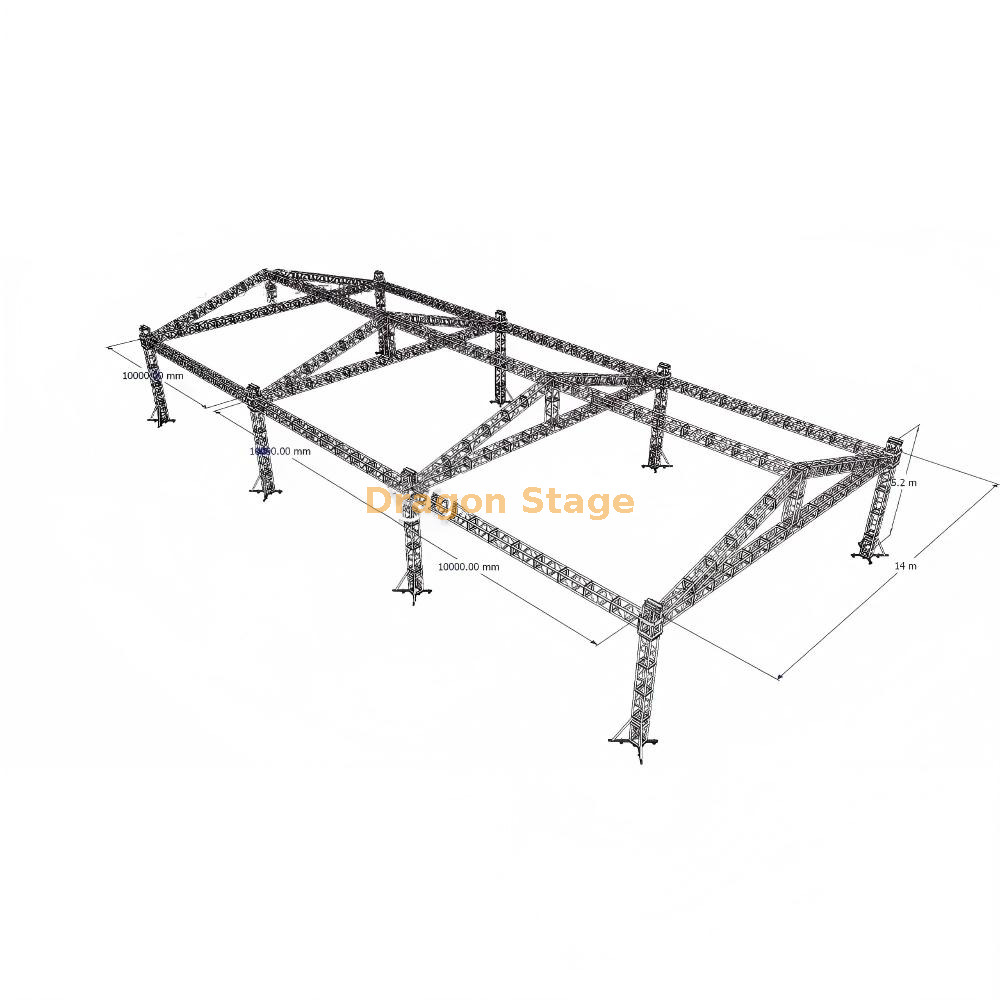

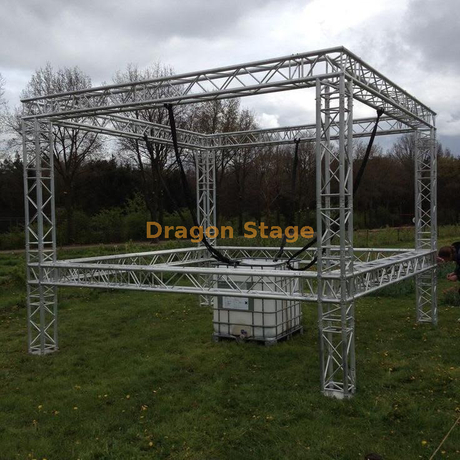

in these years, the outdoor truss structures also have been developed much. and many csutom design trusses have been added to create attracting scenes.

while, for the main frame have not changed much. it generally fall into 2 kinds regarding the roof shape. namely, flat roofing truss and curve roofing truss.

if you want to see more custom outdoor truss cases, please check here.

more...

How To Choose Lighting Truss Correctly?

Choosing the right standard lighting truss mainly depends on two elemental factors: function and loading capacity.

Generally, ladder truss and triangle truss are mainly used for stage truss roof, aluminum stand, booth truss and exhibition truss; box trusses are widely seen as various elements of stage truss, such as: pillar truss, column truss, truss beam, roofing truss and support truss.
here, we have listed almost all kinds of aluminum trusses' parameters on the lighting trusses （spigot truss and screw truss） for you to choose and reference.

more:

1. what is stage truss?

2. What is the characteristic of the stage truss?

3. What are the types of aluminum truss?

4. What is lighting truss?

5. How to distinguish high quality and inferior aluminum truss

Choosing the right lighting truss is crucial for the success of your event or performance. Lighting trusses are structures used to support and hang lights, speakers, and other equipment in the entertainment industry. Here are some important factors to consider when choosing lighting truss:

Weight Capacity:
Determine the weight of the equipment you plan to hang on the truss, including lights, speakers, and any other accessories. Ensure that the truss you choose can support the total weight safely.

Span and Size:
Consider the span and size of the area where you'll be using the truss. The truss needs to be wide and tall enough to cover the desired space and accommodate the lighting fixtures.

Material:

Lighting trusses are typically made of aluminum or steel. Aluminum trusses are lightweight and more portable, making them easier to handle and transport. Steel trusses are heavier but may offer higher load capacities. Choose the material that best suits your needs.

Design and Style:
Consider the design and style of the truss, as it can impact the overall aesthetics of your event. Some trusses are designed for a sleek and modern look, while others may have a more industrial or traditional appearance.

Assembly and Rigging:
Check the ease of assembly and rigging. Some trusses come with quick-connect systems or are designed for easy setup. Consider how quickly and efficiently you need to set up and take down the truss system.

Durability:
Assess the durability of the truss, especially if it will be used frequently or in demanding environments. High-quality materials and construction contribute to the longevity of the truss.

Transport and Storage:
Consider the portability and storage requirements of the truss. If you frequently move or transport equipment, look for trusses that are easy to disassemble and compact for transportation.

Compatibility:
Ensure that the truss system is compatible with your lighting fixtures and other accessories. Check for standard mounting options and connection points.

Budget:
Determine your budget for the lighting truss. Prices can vary based on material, design, and features. Balance your requirements with your budget to find the best-suited truss for your needs.

Safety Standards:
Ensure that the truss system complies with safety standards and regulations. This is essential to protect both equipment and individuals during events.

Reviews and Recommendations:
Read reviews from other users or seek recommendations from industry professionals. Learning from the experiences of others can help you make an informed decision.

By carefully considering these factors, you can choose a lighting truss that meets your specific requirements and ensures a safe and successful event.

High Loading Capacity 290mm by 290mm Spigot Trussing 4mm Thick

this is custom High Loading Capacity 290mm by 290mm Spigot Trussing

the main tube 4mm Thick

vice brace 3mm thick and 2 sides

Heavy Duty 290mm Spiogt Truss 3mm Thick

this is custom heavy duty 290mm spiogt truss

main tube 50x3mm

vice tube 50x2mm

incline tube 25x2mm, 2 sides

Global Truss F54 520mm Square Event Stage Lighting Aluminum Truss

aluminum spigot truss 520*520mm

Pipe diameter: 50 mm
Wall thickness: 4,0 mm
Brace diameter: 30 mm
Connectors included

CS5276 Aluminum Heavy Duty Lighting Truss 520x760mm

aluminum spigot truss 520*760mm

Section:Square520x760mm
Inclined tube: 30x2.0mm
Main tube:50x4.0mm
Braces:50x2.0mm
Material: Aluminum 6082- -T6

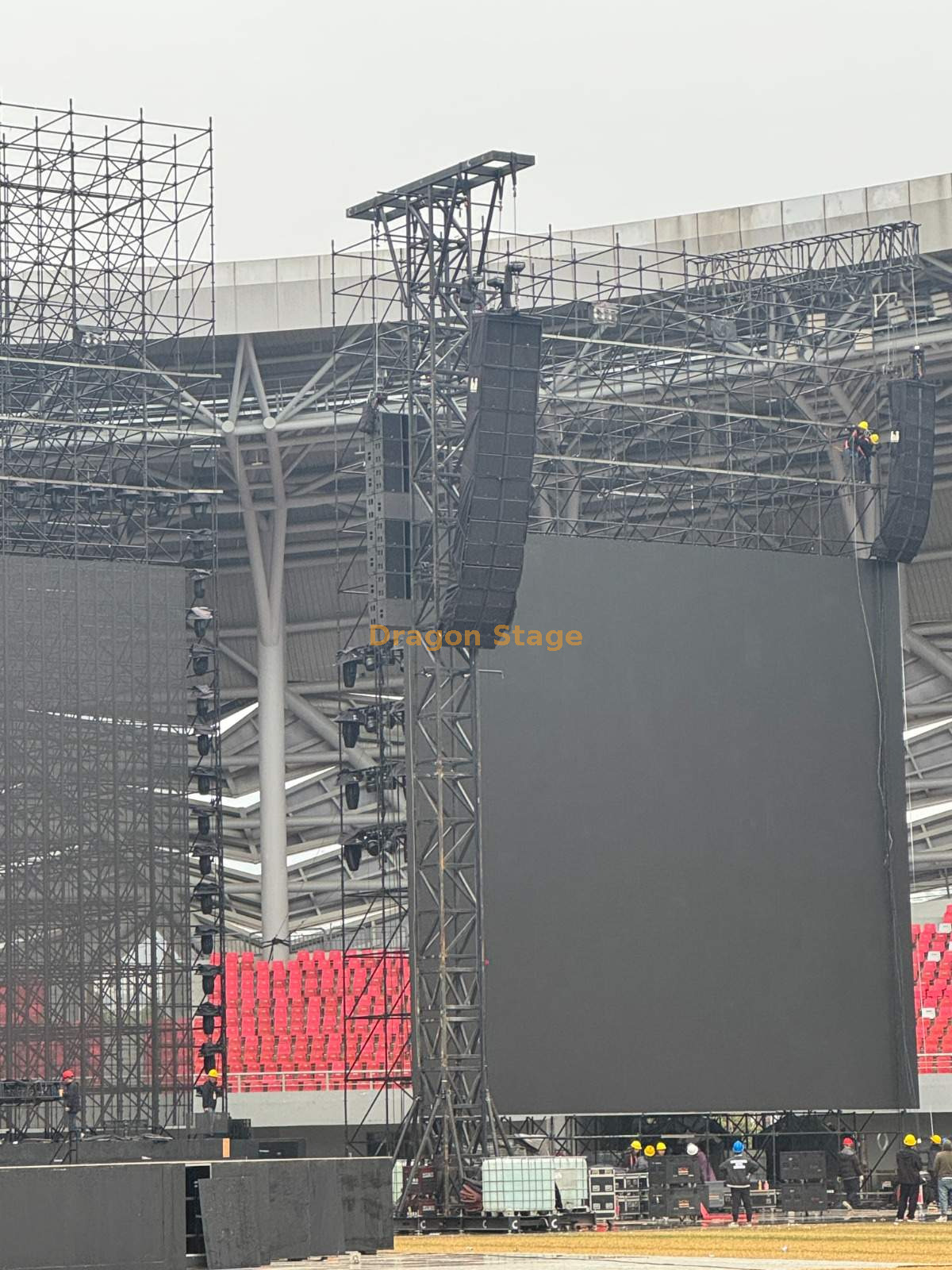

Lifting Tower Aluminum Speaker Tower Truss CS40

lifting tower aluminum speaker tower truss CS40

The aluminum truss is a strong, lightweight and versatile material for constructing hollow structures.

Aluminum Alloy Straight Spigot Square Box Global Truss F34 0.5m 1m 1.5m 2m 2.5m 3m / 1.64ft 3.28ft 4.92ft 6.56ft 8.2ft 9.84ft

main tube 50x2mm

Aluminum Box Truss Cs20 Spigot Truss 200x200mm

Section:Square200x200mm
inclined tube: 12x2.0mm
Main tube: 30x2.0mm
Length:0.5/1/2/2.5m
Braces: 20x2.0mm

Aluminum 50mm Diameter Single Tube Truss

Aluminum 50mm Diameter Single Tube Truss is widly used and trusted by professionals, this truss offers unparalleled strength and durability.

we have several standard length for you to choose.

our price has included the 1 connector and 2 pins & clips

Event Concert Aluminum Lighting Truss Double Hung Touring Truss Pre Rig Truss

600x350mm

A touring truss pre-rig truss is a versatile and convenient stage setup commonly used in touring productions and concerts. It typically consists of a truss structure that incorporates pre-rigged lighting fixtures, audio equipment, and other accessories.

global type 50x3mm 290mm Square Spigot Truss Aluminum Lighting Truss for Events 0.5m 1m 1.5m 2m 2.5m 3m / 1.64ft 3.28ft 4.92ft 6.56ft 8.2ft 9.84ft

Spigot Aluminum Triangle Truss 0.5m 1m 1.5m 2m 2.5m 3m / 1.64ft 3.28ft 4.92ft 6.56ft 8.2ft 9.84ft

Aluminum Concert Lighting DJ Truss Pre-Rig Truss System for Stage Equipment 600x350mm

pre-rig truss for supporting and transporting moving heads. It is equipped with 4 castor wheels for easy maneuverability and pins for the connection of truss pieces. Each truss is designed to carry a lighting bar complete with moving heads. The lighting bar is hooked onto the main chord and allows lights to move. This design reduces the amount of space required for rigging in the truck.

CS68101 Heavy Duty Stage Light Truss 680x1010mm

Section:Square670x1010mm
Inelined tube: 30x2.0mm
Main tube:50x5.0mm
Braces:50x3.0mm

CS6070 Heavy Duty Stage Box Truss 600x700m

Section:Square600x760mm
Inclined tube: 25x2.0mm
Main tube:50x4.0mm
Braces:50x2.0mm

CS5060 Aluminum Heavy Duty Spigot Lighting Truss 500x600mm

Section:Square500x600mm

Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm

CS4060 Aluminum Square Truss 400x600mm

Section:Square400x600mm
Inelined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material: Aluminum 6082- -T6

CS35 Aluminum Spigot Truss 350mm

Truss Dimension 350*350mm
Main Tube 50*3mm
Vice Tube 30*2mm
Brace Tube 25*2mm

Aluminum Straight Folding Truss 1010x580mm S100F

Section:1010x580mm

main chords (50 x 4 mm) and diagonal members (48 x 3 mm)

Material: Alloy 6082-T6

Aluminum Folding Tri Truss Global Truss F102 1000x570mm

Pipe diameter: 50 mm
Wall thickness: 4,0 mm
Brace diameter: 48 mm
Connectors included

Aluminum Global Folding Truss F52 570x521mm

Pipe diameter: 50 mm
Wall thickness: 4,0 mm
Brace diameter: 25 mm
Connectors included

Aluminum Straight Folding Truss 530x580mm S52

Section:530x580mm
Main Tube:Ø50x4mm
Braces:Ø25x3mm
Material: Alloy 6082-T6

Global Truss F44P 400mm Box Spigot Truss

Pipe diameter: 50 mm
Wall thickness: 3,0 mm
Brace diameter: 25 mm
Connectors included

Global Truss F43 Triangle Truss

Pipe diameter: 50 mm
Wall thickness: 3,0 mm
Brace diameter: 25 mm
Connectors included

F42 Global Truss 400mm Spigot Truss

Pipe diameter: 50 mm
Wall thickness: 3 mm
Brace diameter: 25 mm
Connectors included

Aluminum Spigot Truss 290mm Global Truss F34

Section:Square289x289mm

Inclined tube: 20x2.0mm
Main tube:50x3.0mm
Length:0.5/1/2/3/4m
Braces:25x2.0mm

Aluminum Spigot Truss Global Truss F32 I-beam Truss 290mm Wide

I beam truss we also call it ladder truss

Pipe diameter:50mm.
Wall thickness:3.0 mm
Brace diameter:20 mm
Connectors included

F33 Global Truss, Triangle Truss, Euro Truss, Spigot Exhibition Lighting Truss

Pipe diameter: 50 mm
Wall thickness: 3,0 mm
Brace diameter: 20 mm
Connectors included

Aluminum Spigot Truss 100mm Global Truss F14

Section: Square100x100mm
Inclined tube: 6mm
Main tube:20x2.0mm
Length:0.5/1/1/1.5m
Braces:80x80x5.0mm

100mm Trade Show Exhibition Square Bolt Small Mini Truss

this is 100x100mm Bolt Small Mini Truss, it is mainly used for Trade Show Exhibition

its end is a whole aluminum plate, curved and processed by laser machine.

Light-duty Truss 12'' X 12'' Plated Aluminum Square Box Thomas Truss, Tomcat Truss

Black aluminum 5ft 6ft 8ft 9ft 10ft 12'' led screen display audio dj concert event stage lighting square box screw bolted truss

BS20 Aluminum Bolted Truss 200x200mm

Section:Square200x200mm
Inclined tube: 12x2.0mm
Main tube: 30x2.0mm
Length:0.5/1/2/2.5m
Braces: 20x2.0mm

BS30 Roof Screw Lighting Truss 300x300mm

section:Square300x300mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6

BS6076 Screw Aluminum Illumination Truss 600x760mm

Section:Square600x760mm
Inclined tube: 30x2.0mm
Main tube:50x4.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6

BS5276 Aluminum Music Audio Screw Lighting Truss 520x760mm

Section:Square520x760mm
Inclined tube: 30x2.0mm
Main tube:50x4.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6

BS5060 Square Screw Lighting Truss 600X500mm

Section:Square500x600mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material; Aluminum 6061-T6

BS4050 Aluminum Music Audio Screw Lighting Truss 500x400mm

Section:Square400x500mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6

BS50 Outdoor Event Use Bolt Aluminum Square Truss 500x500mm

Section:Square500x500mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6

BS45 Aluminum Truss Bolt 450x450mm

Section:Square 450X450mm
Inclined tube: 25X2.0mm
Main tube: 50X3.0mm
Braces: 50X2.0mm
Material:6061-T6

BS40 Aluminum Roof Screw Lighting Truss 400x400m

Section:Square400x400mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6

BS3040 Aluminum Alloy Bolt Square Truss 300x400mm

Section:Square300x400mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:30x2.0mm
Material: Aluminum 6061-T6

BS35 Screw Aluminum Lighting Truss 350x350mm

Section:Square350x350mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6

BT30 Aluminum Triangle Bolt Truss

Section:Triangular300x300mm
Inelined tube: 25x2.0mm

Main tube: 50x3.0mm
Length:0.5/1/2/3/4m
Braces: 30x2.0mm
Material:Aluminum 6061-T6

BL30 Aluminum I Truss with Bolt 300mm

Section:L adder300x50mm
Inclined tube: 20x2.0mm
Main tube: 50x3.0mm
Braces: 30x2.0mm
Material:Aluminum 6061-T6

BS20A Aluminum Bolt Truss 200mm with Square Main Tube

Section:Square200x200mm
Inelined tube: 10x2.0mm
Main tube:25x25x2.0mm
Length:0.5/1/2/2.5m
Braces:25x25x2.0mm

Material: Aluminum6061-T6

How To Install Lighting Truss？

aluminum lighting truss has two ways to connect regarding spigot truss and screw truss.

Screw Lighting Truss Installation

screw truss is connected by screws and nuts.

its connection work needs spanner to fastner the nuts in and out. it shall need more time than spigot truss.

as screw truss do not have pin ends out, it is more used for indoor truss system. such as truss hanging stage equimpent, fixed ceiling roofing and complex truss design.

Spigot Lighting Truss Installation

spigot truss is connected by pins and connectors.

It is the most popular and easy method to connect due to it just need a hammer to knock in and out.

it usually for outdoor large stages, such as event stage truss, concert stage and led truss etc.

Different Customized Solutions For You To Select

Idea

Collect basic inforamtion about the using scene

Draft

Deliver draft design for lighting truss

Design

Discuss and confirm the design

Produce

Make production according to approved design

Application case

Aluminum Truss Bar LED Screen Frame Panel Adaptor for Panels with Bolts W Clamp for 50mm Tube Ground Stack Or Ceiling Installation(1).jpg

Why LED Clamp/Adaptor Producers Require LED Cabinet Specification

Introduction: When it comes to purchasing LED universal clamps/adaptors, understanding the importance of providing LED cabinet specifications is crucial. In this article, we delve into the reasons why LED clamp/adaptor producers insist on clients furnishing detailed specifications and how it contrib

The Marvel of Aluminum and Why Aluminum Trusses Are Remarkable

Introduction:Aluminum trusses are an often-overlooked marvel in the world of construction and design. In this article, we will delve into the ten key reasons why aluminum trusses are exceptional in their versatility and functionality, offering a wide range of applications.1. Decades of Proven Perfor

Ensuring the Longevity and Safety of Structures Trusses: A Comprehensive Guide to Inspection and Maintenance

Introduction:Event Structures Trusses are known for their durability and longevity when handled and maintained correctly. Whether you're using trusses in the entertainment industry or any other field, regular inspection and maintenance are crucial for ensuring their safe and efficient operation. In

Best Practices for Proper Handling and Maintenance of Aluminum Trusses

Best Practices for Proper Handling and Maintenance of Aluminum TrussesIntroduction:Aluminum trusses are essential structural components in various industries, including events, construction, and entertainment. Ensuring their longevity and safety requires proper handling and maintenance. In this arti

Aluminum Black Jumbo Bolt Truss for Studio (1).jpg

Behind the Scenes: Exploring Lighting Trusses and Studio Setup

Exploring the World of Lighting Trusses: A Behind-the-Scenes Studio AdventureStep behind the curtain and into the dynamic world of studio production as we uncover the intricate dance between lighting and truss systems. In this article, we invite you to join us in a behind-the-scenes exploration of s

The Essential Guide to Bolting Aluminum Plate Trusses

The Essential Guide to Bolting Aluminum Plate TrussesIn the world of construction, stage production, and various industrial applications, the joining of aluminum plate trusses is a common requirement. This process relies on steel bolts, nuts, and washers to securely fasten two aluminum plates togeth

Durable Aluminum Stage Frame Structure Lighting Truss 40x30x30ft.jpg

Understanding Lighting Truss: A Comprehensive Guide

Understanding Lighting Truss: A Comprehensive GuideLighting truss, often referred to as stage truss, is a fundamental component in the world of event production and stage design. This versatile structure offers lighting designers and event planners the freedom to hang lighting fixtures and various s

How to Prevent 200x200mm Aluminum Truss Deforming During the Welding

Introduction: Welding aluminum trusses requires careful consideration to prevent deformation and ensure the structural integrity of the final product. By implementing appropriate material selection, fixturing techniques, welding methods, and optimizing welding parameters, it is possible to minimize

Why the Budgets for the Structural System in Club Buildings Should not Cut Down

Introduction: We should not cut down the budgets on structural system in club building, because, Club buildings are vibrant spaces that host various activities and performances. While it may be tempting to cut budgets on certain aspects of club construction, one area that should never be compromised

Understanding the Time-intensive Nature of Club Truss Production

Introduction: Club trusses play a vital role in creating stunning visual experiences and supporting elaborate stage productions in clubs and entertainment venues. However, compared to standard straight trusses, club truss production often requires more time and meticulous planning. In this article,

Quick Search

Typical Truss Cases

SELECTED PRODUCT LINES:

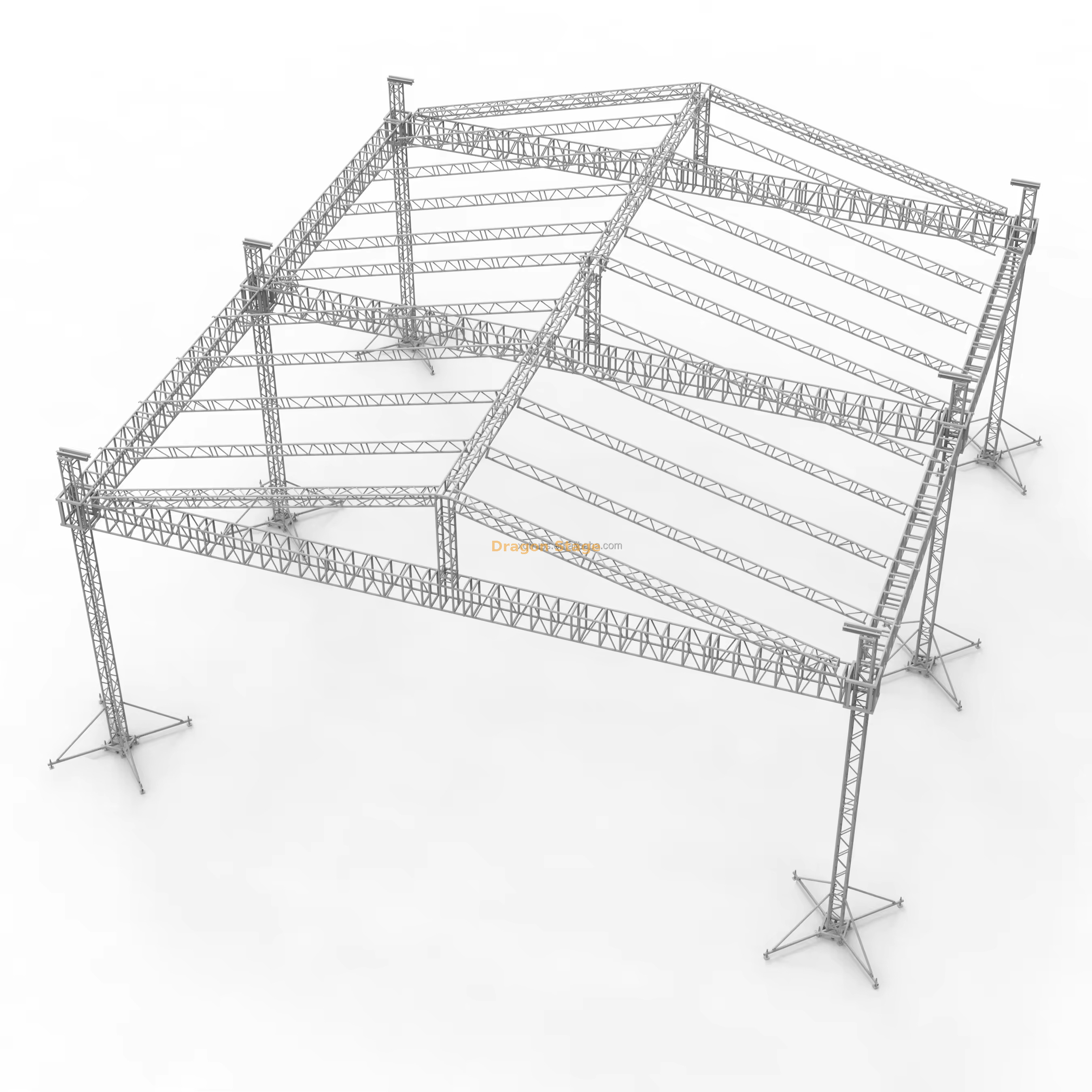

Light Weight Heavy Loading Aluminum Lighting Stage Roof Truss for Outdoor Events 18x12x10m

stage truss roof 18 meters wide x 12 meters deep, 10m high, with 2 front wings of 3 meters, the beam truss is 500x600mm and the pillars are in CS40 Truss, including the canvas black color.

Portable Outdoor Concert Lighting Truss System 40x60x30ft

Portable Outdoor Concert Lighting Truss System 60x40x30ft (18x12x9m); stage 36x56ft
The Portable Outdoor Concert Lighting Truss System is a truss system that is designed to be light weight and easy to assemble. The truss is composed of three different pieces that are easy to carry and connect. The system can be used for a variety of outdoor events, such as concerts, parades, and holiday events. The system includes two pieces of truss that are 5 feet in length and one piece of truss that is 10 feet in length. The pieces are connected by the included cables and metal rods. The system also includes a heavy duty carrying case with a shoulder strap for easy transport.

School Sports Burgundy Top Truss System 90x50x26ft

this is a custom School Sports roof truss system 27x15x8m
the roof is Burgundy Top Truss System

Custom Mini Outdoor Roof Event Stage 6x5x5m

this is a flat roof top truss stage, the length is 6m deep 5m and height 5m
the platform is 4.88x4.88m height 0.8-1.2m

African Outdoor Concert Roof Speaker Truss Stage 14x10x7m

this is custom roof stage for African outdoor concert. its length is 14m, width 10m and height 7m.
the stage platform is 12.2m long, 8.54m wide and 0.8-1.2m adjustable with 2 stairs

Custom School Outdoor Sport Field Truss Roof Cover System 15x24x6m

this is an American School Outdoor Sport Field Truss Roof Cover System, it is sizes are 50feet wide, 80 feet deep and 20feet high.

10x10ft Finishing Line Truss Gate for Car Race

this Finishing Line Truss Gate for Car Race is 3m high, 3m wide, total 3x3m
with steel wheeled base to prevent falling and mobile moving for needs.

100mm Trade Show Exhibition Square Bolt Small Mini Truss

this is 100x100mm Bolt Small Mini Truss, it is mainly used for Trade Show Exhibition
its end is a whole aluminum plate, curved and processed by laser machine.

Aluminum Indoor Truss Frame for Wedding Flowers and Chandeliers 25x25x15ft

this is an Aluminum Indoor Truss Frame, it is for Wedding Flowers and Chandeliers. the total sizes are 25feet wide, 25 feet deep and 15ft high with 2 inter beams to attach the nets with decoration items.

Outdoor Indian Event Lighitng Truss 80x80x40ft

this is a custom Outdoor Indian Event Lighitng Truss, total sizes are 80x80x40ft, namely 24x24x12m.
the line array trussing is 2m wide.
the pillar is 400x400mm, the beam is 520x760mm

10m Aluminum H Frame Truss Tower For Hanging Sound Speaker

this 10m high Aluminum Truss Tower For Hanging Sound Speaker is 2m wide and 2m deep with 4 supports and steel feet.
This robust structure offers a reliable solution for suspending sound speakers at events or venues requiring elevated audio projection. The aluminum construction ensures both durability and lightweight portability, making it a practical choice for various sound reinforcement applications. Its design facilitates easy setup and transportation, catering to the needs of professionals in the audio industry seeking a versatile and efficient solution for mounting speakers.
